Pioneer PDP-435PG User Manual

PDP-435PE
74
1234
1234
C
D
F
A
B
E
2

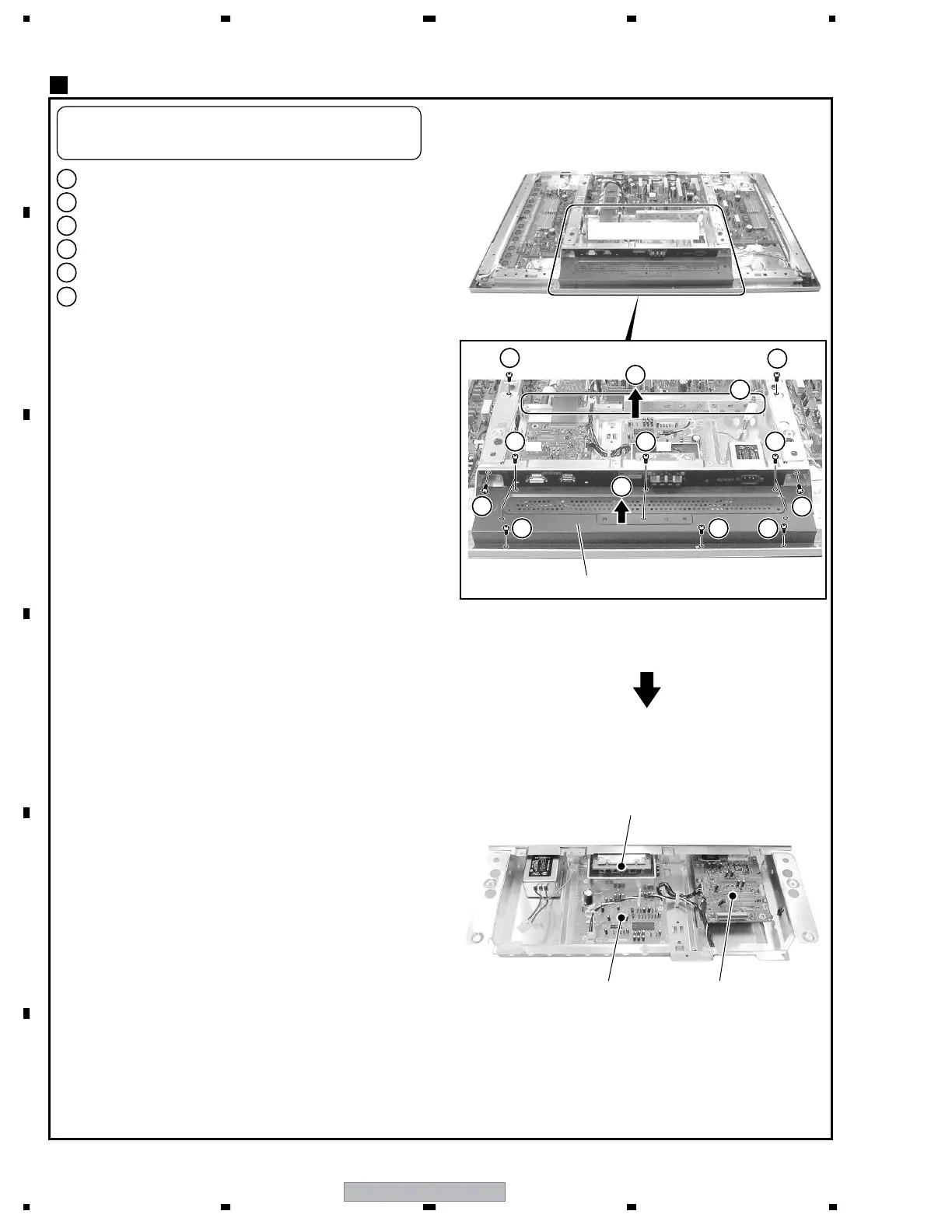

Remove the three screws.
1
Remove the four screws.
3
Remove the six screws.
4
Disconnect the connectors.
5
Remove the Under Cover Assy.
6
Remove the Multi Base Section.
MULTI BASE SECTION
4
1
1
2
3
2
1
1
2
×2 ×2
Multi Base Section
Under Cover Assy
HD SP TERMINAL Assy
HD AUDIO AMP Assy
Note:
To access the Multi Base Section, only the Rear Case must
be removed. No other parts need to be removed.
3
×2
3
4
6
5
PANEL IF Assy
