PDP-435PE
72
1234
1234
C
D
F
A
B
E

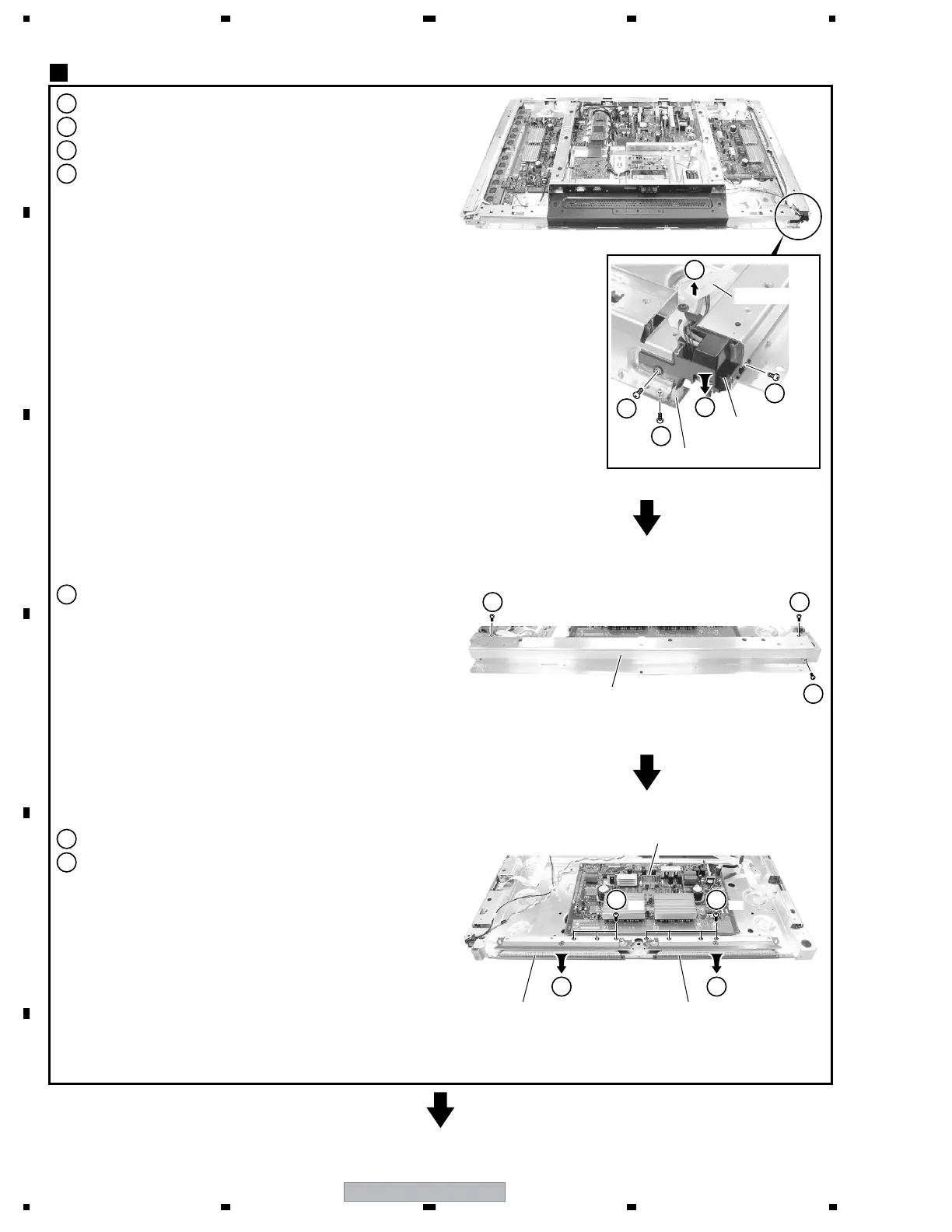

2
Remove the two screws.
1
Remove the PANEL LED Assy by removing one screw.
3
Remove the flat clamp and remove the wires.
4
Remove the Switch Holder.
5
Remove the three screws to remove the Front Chassis VR (43).
6
Remove the seven screws.
7
Remove the X CONNECTOR A and B Assy's.
X CONNECTOR A and B Assy's
2
43 X DRIVE Assy
X CONNECTOR A Assy
X CONNECTOR B Assy
5 5
5
1
2
2
3
4
77
6
×4
6
×3
PANEL LED Assy
Flat Clamp
Switch Holder
Front Chassis VR (43)
To Next Page
