PDP-6071PU
111
5678
56
7
8
C
D
F
A
B
E

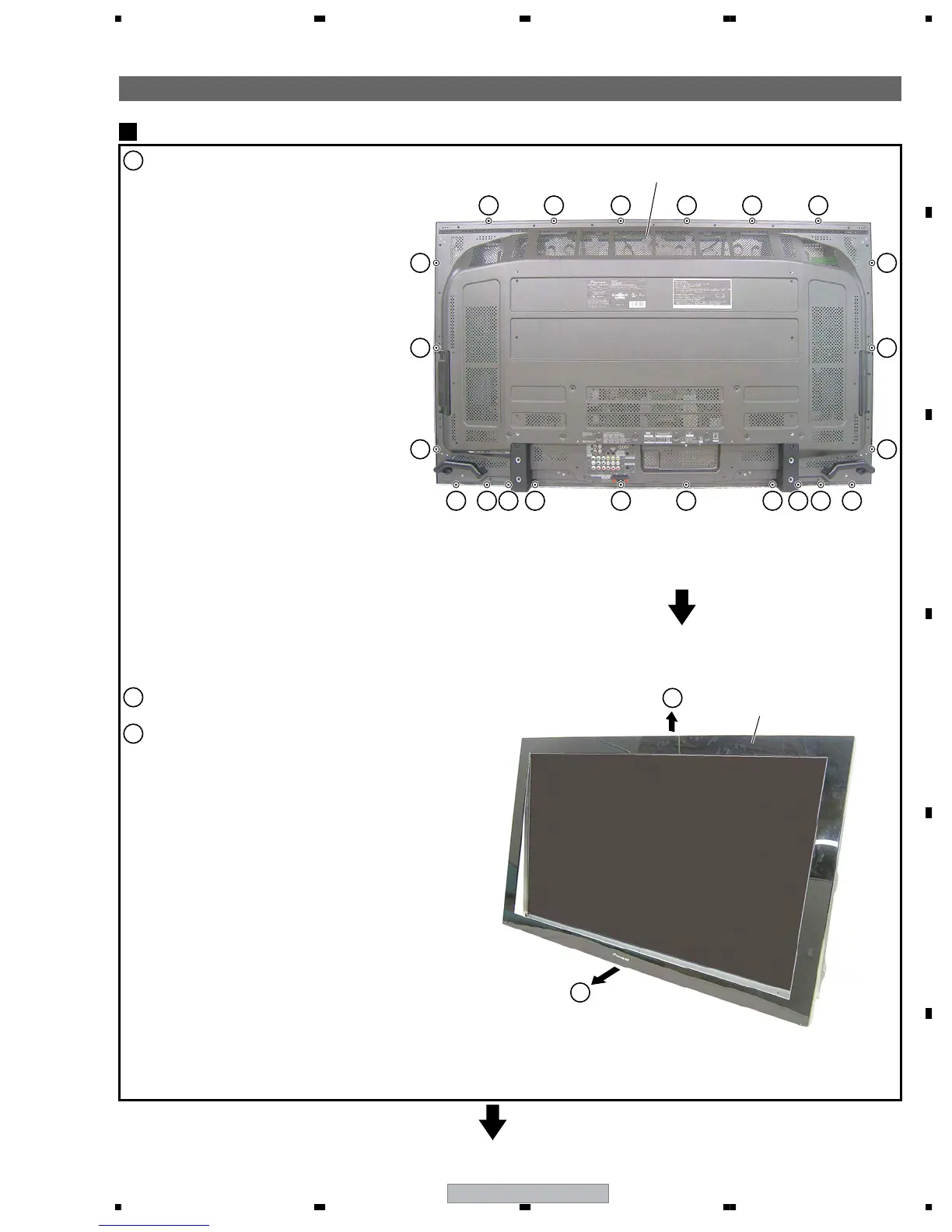

Disassembly
Front Case Assy 607
1
1
Remove the 22 screws. (APZ30P100FTB)
2
Pull the lower part of the Front case Assy 607
toward you and out.
3
Remove the Front case Assy 607, by pulling
it upward.
2
3
Front case Assy 607
Rear case (607)
1
1
1
1
1 1
1 1 1 1 1 1 1 1 1 1
1 1 1 1
1
1
