VSA-E07
5
C
20
21

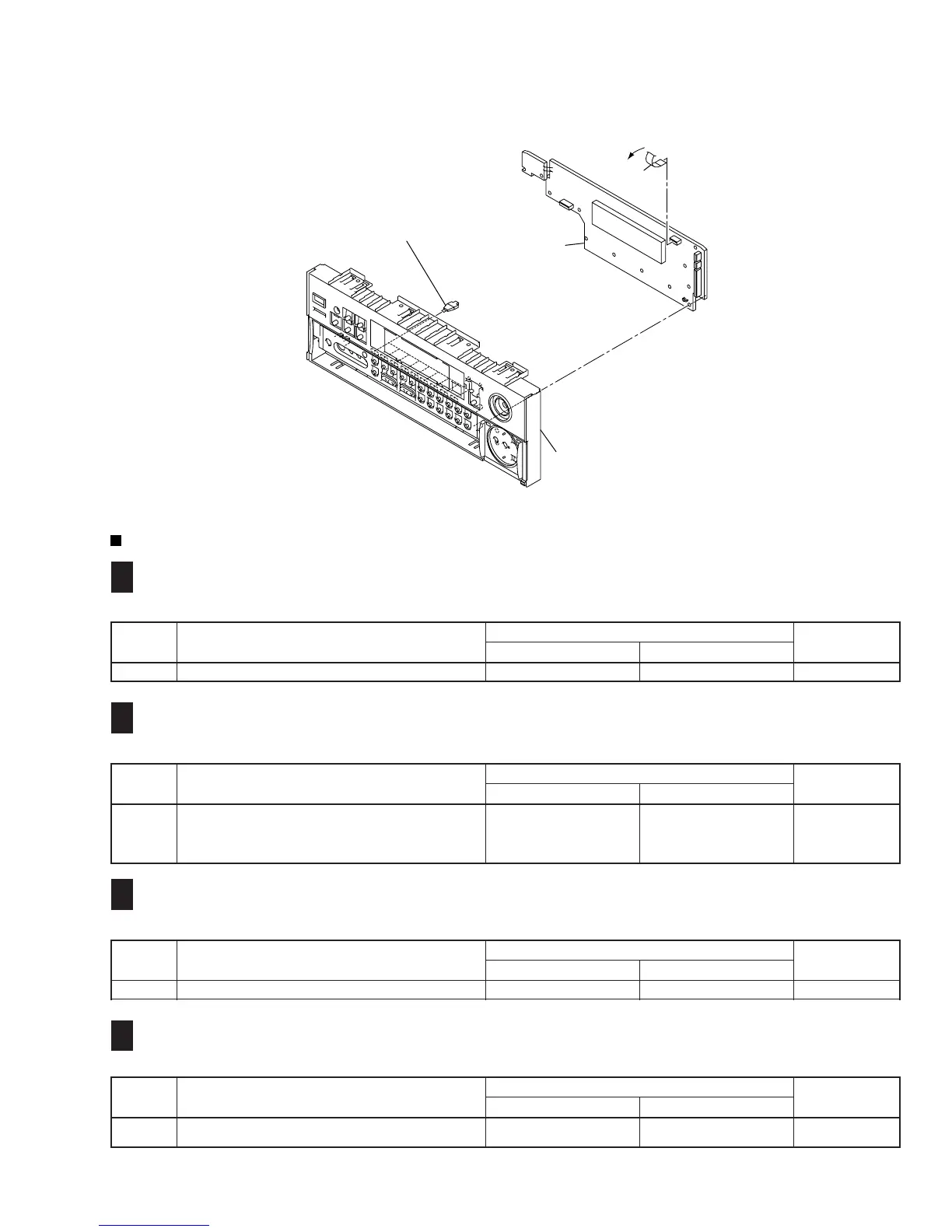

DISPLAY Assy
Panel Base
CONTRAST OF PCB ASSEMBLIES
AWX7348 and AWX7413 are constructed the same except for the following :
EXTERNAL IN (EXTRA-5.1) ASSY
F
A
Mark Symbol and Description
Part No.
Remarks
AWX7413 AWX7348
JA1101–JA1103 2P PIN JACK AKB7095 AKB7121
AWX7346 and AWX7412 are constructed the same except for the following :
A-PINJACK ASSY
F
B
Mark Symbol and Description
Part No.
Remarks
AWX7412 AWX7346
JA1011–JA1013 4P PIN JACK AKB7048 AKB7108
JA1015 4P PIN JACK AKB7048 Not used
1016 2P PIN JACK AKB7210 Not used
CN1014 6P PIN JACK (For JA1015 and 1016) Not used AKB7119
÷
FRONT PANEL SECTION
AWX7558 and AWX7347 are constructed the same except for the following :
CONNECTION ASSY
F
C
Mark Symbol and Description
Part No.
Remarks
AWX7347 AWX7558
IC1301–IC1303 NJM4558D-D UPC4570C
AWX7514 and AWX7309 are constructed the same except for the following :
V-AMP ASSY
F
E
Mark Symbol and Description
Part No.
Remarks
AWX7309 AWX7514
C513, C533, C553, C613, C633 CEAT470M50 CECA470M50
C7507, C7508, C7527, C7528 Not used CEAT1R0M50
