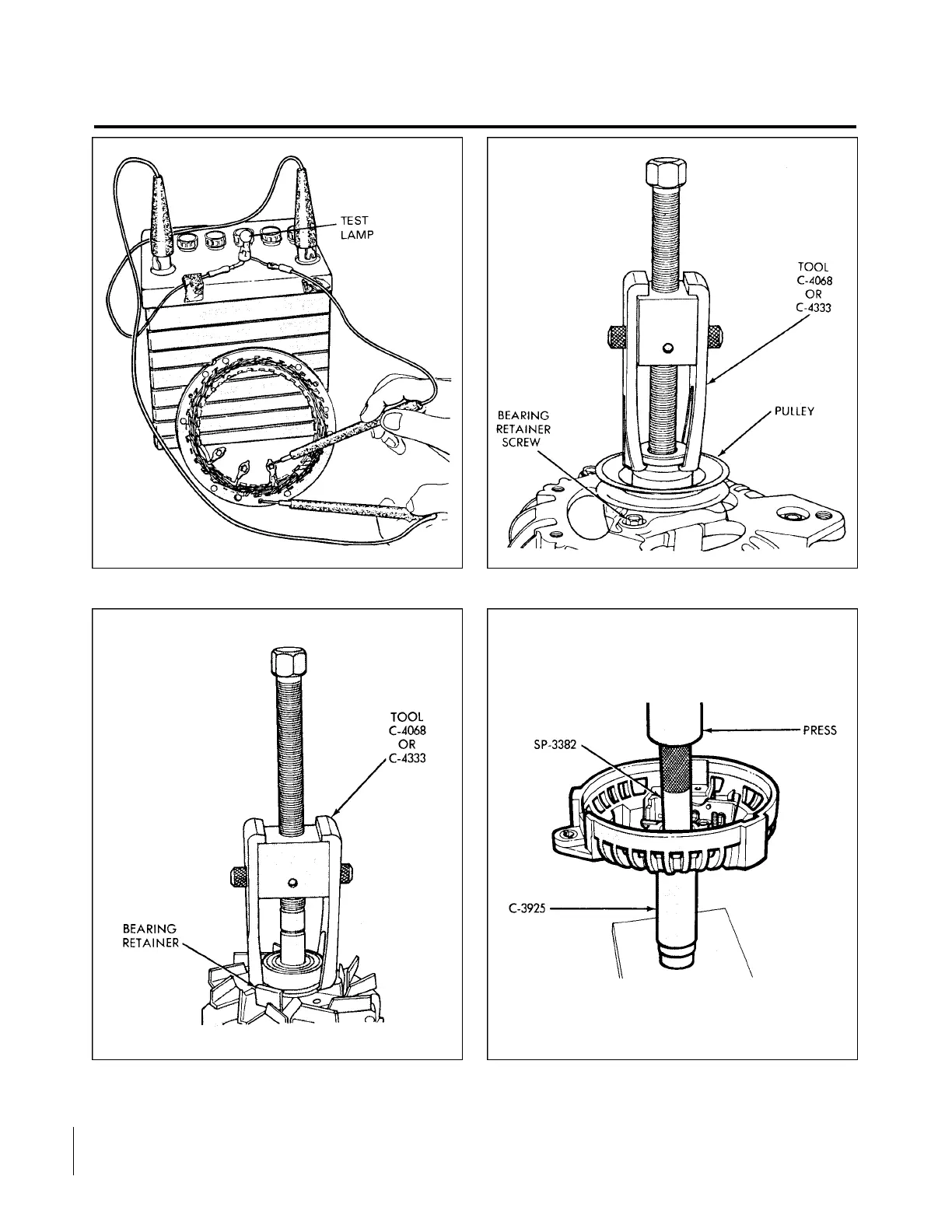

Figure 24-12. Testing Stator Figure 24-13. Removal of Pulley
Figure 24-14. Removal of Bearing Figure 24-15. Removal of Rectifier
End Shield Bearing
24-32-11
EFFECTIVITY: Page 24-21
CHRYSLER ALTERNATOR Revised: July 13, 1983
1I16
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
