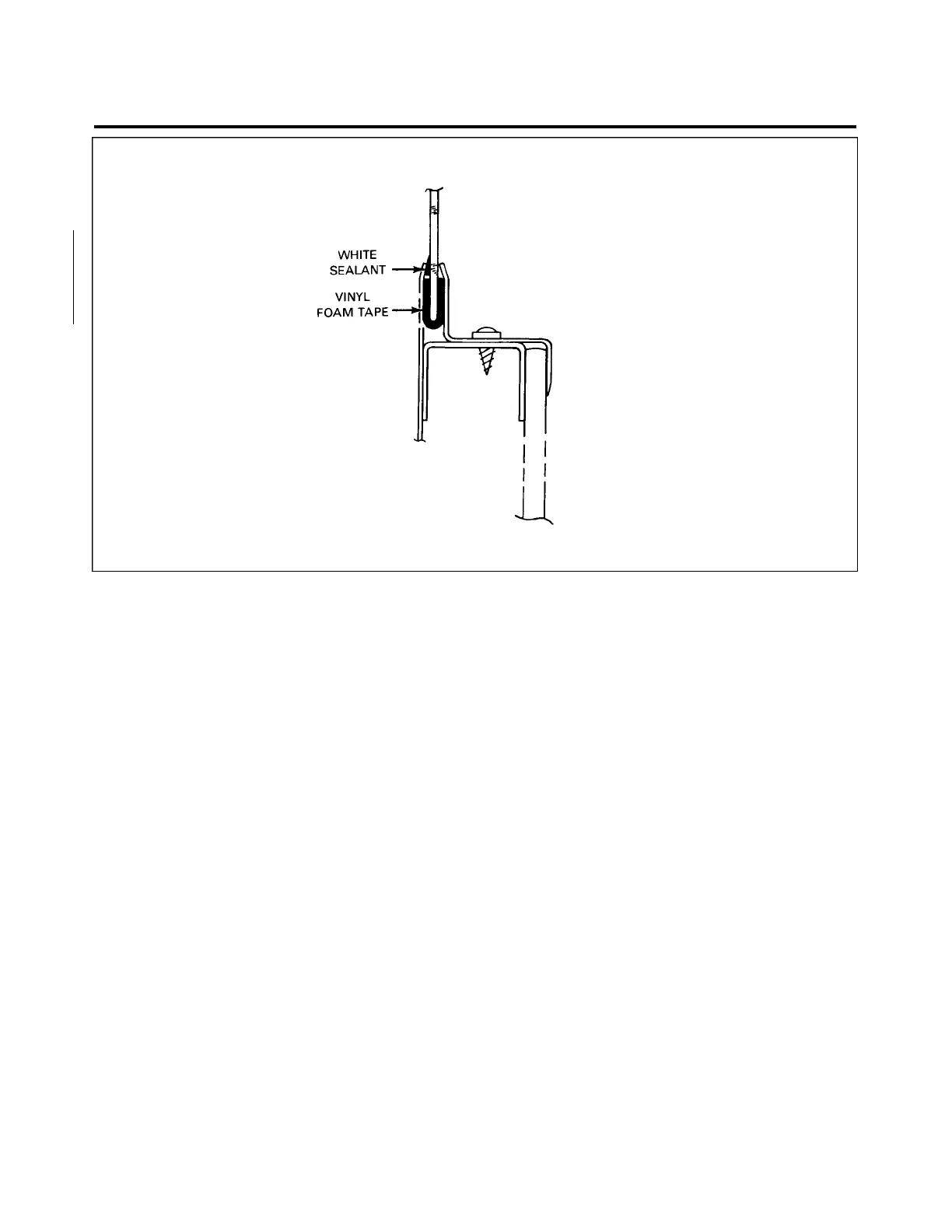

Figure 56-2. Side Window Installation, Single Pane (Typical)
2. Carefully remove the window from the frame.
—NOTE—
A damaged window should be saved to provide a pattern for
shaping the new window.
3. Remove excess tape and sealer from the window frame and molding.
INSTALLATION OF SIDE WINDOWS. (Refer to Figure 55-2.)
1. Cut or grind the new window to the same dimension as the window removed.
2. Apply Behr-Manning vinyl foam tape number 560 or equivalent, on both sides of the window around
the outer edges.
3. Apply Behr-Manning Sealant number PRC 5000 or equivalent, completely around the outer surface of
the windows at all attachment flanges.
4. Insert the window in the frame and install the retainer moldings.
5. Secure the molding with attachment screws and tighten until the vinyl foam tape is 25% compressed
by the retainers.
6. Remove the excess exposed sealer and tape.
—END—
56-20-02
Page 56-03
Revised: July 24, 1981
2J23
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

Piper Arrow IV Turbo Specifications

General

Manufacturer	Piper Aircraft
Model	Arrow IV Turbo
Horsepower	200 hp
Seating Capacity	4
Landing Gear	Retractable tricycle
Range	773 nautical miles
Service Ceiling	20, 000 ft
Fuel Capacity	72 gallons
Propeller	2-blade constant speed
Max Takeoff Weight	2, 900 lb (1, 315 kg)
Stall Speed (Flaps Down)	55 knots
Rate of Climb	1, 000 ft/min
