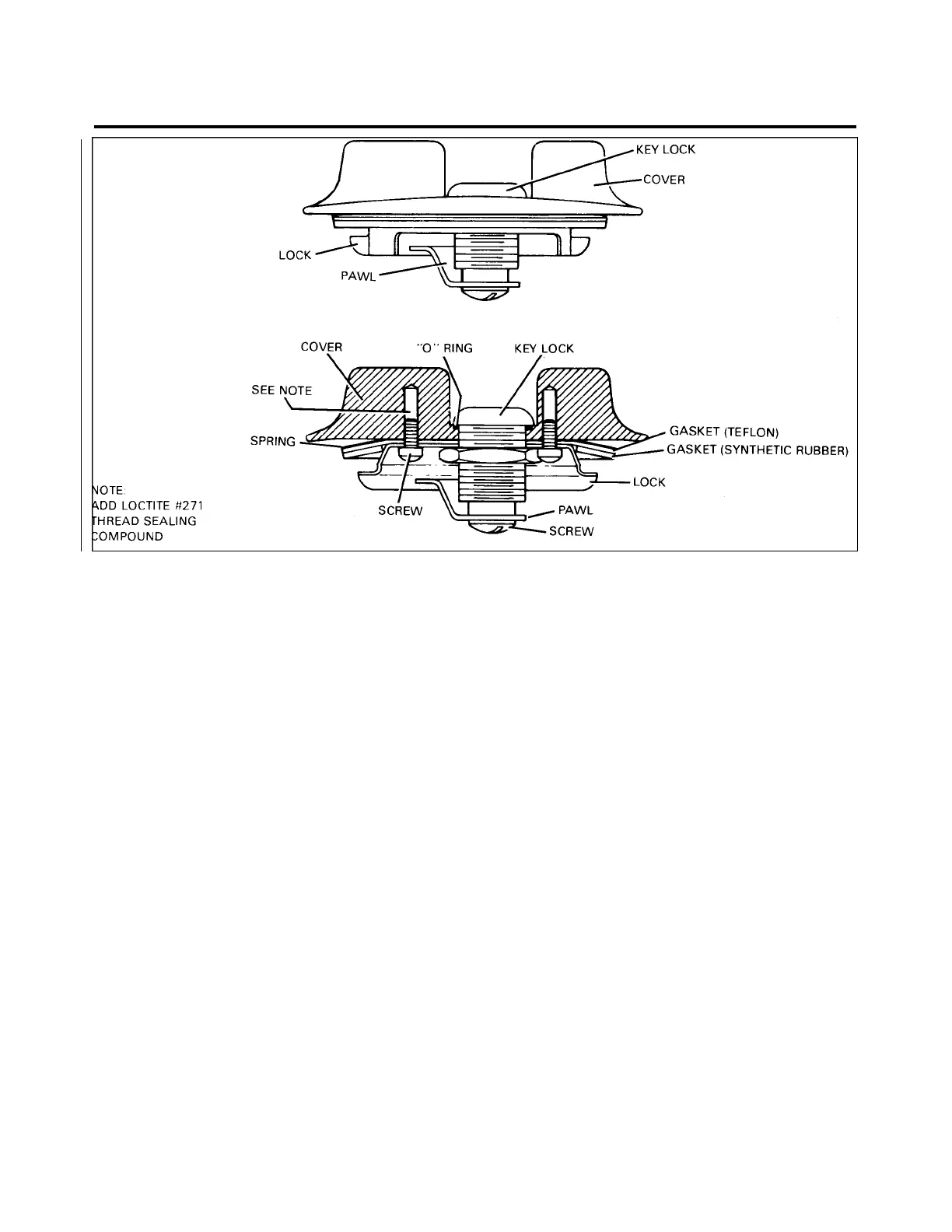

Figure 28-4. Locking Fuel Cap Assembly
DISTRIBUTION.
FUEL FILTER BOWL AND SCREEN. (Refer to Figure 28-5.)
REMOVAL OF FUEL FILTER BOWL AND HOUSING.
1. Ascertain that the fuel shutoff is in the off position.
2. Remove the engine cowlings by releasing the cowl fasteners or the attaching screws, depending on the
type installed. Be certain that all electrical leads are disconnected prior to removal of the cowl.
3. Disconnect the fuel lines from the filter bowl housing.
4. Cut the safety wire, loosen the bail nut, move the bail wire to the side and remove the bowl.
5. Remove the housing of the filter bowl by spreading the ends of the bail wire allowing the housing to
be lifted from the bracket.
28-20-02
Page 28-09
Revised: July 13, 1983
2B4
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

Piper Arrow IV Turbo Specifications

General

Manufacturer	Piper Aircraft
Model	Arrow IV Turbo
Horsepower	200 hp
Seating Capacity	4
Landing Gear	Retractable tricycle
Range	773 nautical miles
Service Ceiling	20, 000 ft
Fuel Capacity	72 gallons
Propeller	2-blade constant speed
Max Takeoff Weight	2, 900 lb (1, 315 kg)
Stall Speed (Flaps Down)	55 knots
Rate of Climb	1, 000 ft/min
