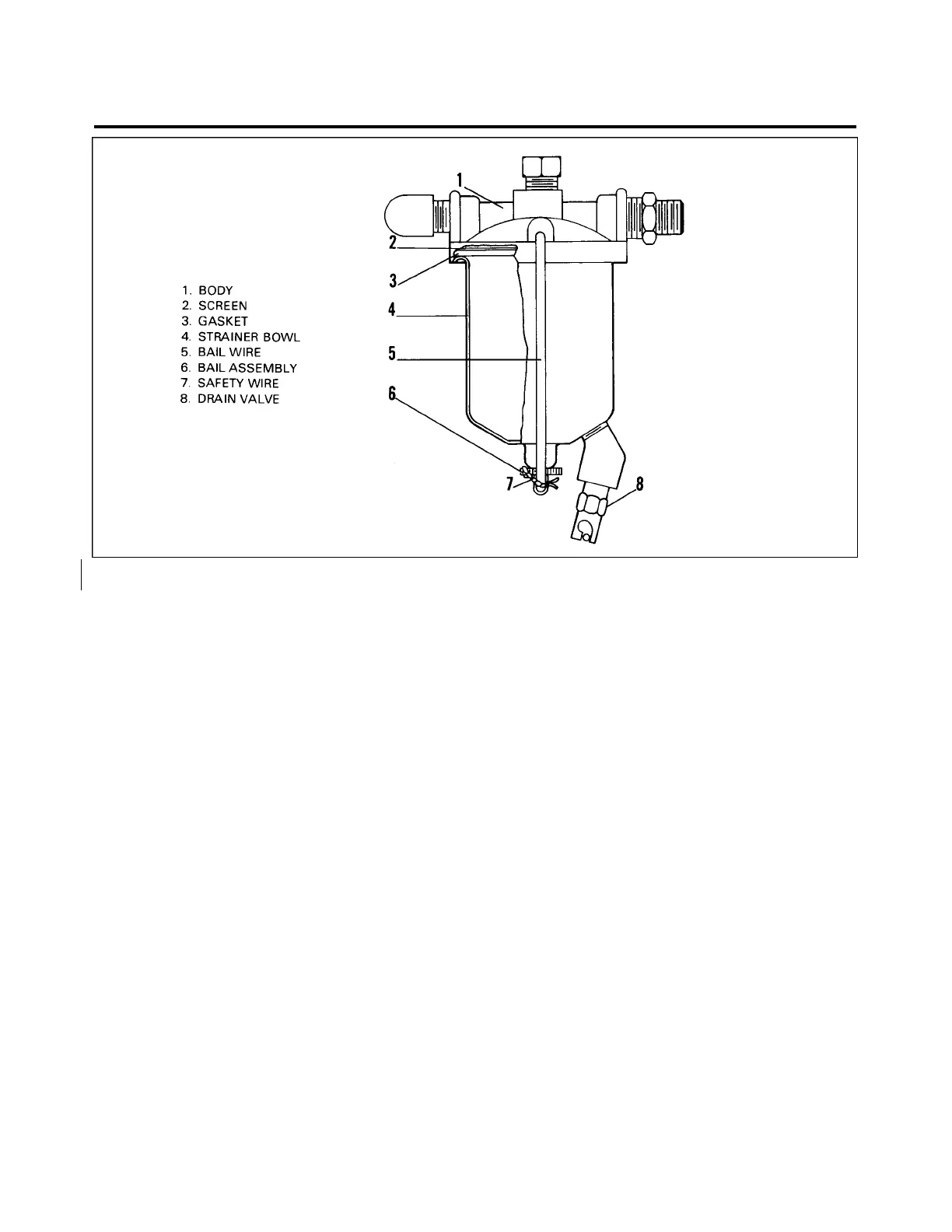

Figure 28-5. Fuel Filter Bowl and Screen
CLEANING AND INSPECTION OF FILTER BOWL SCREEN.
1. Follow Steps 1, 2 and 4 of Removal of Fuel Filter Bowl and Housing for removal of the filter bowl.
2. Remove the gasket and screen from the filter housing.
3. Clean the screen and bowl with acetone or a suitable dry type solvent. If damaged, replace screen.
4. Replace the screen followed by a new gasket.
5. Position the bowl and bail wire, and tighten the bail nut.
6. Safety the bail nut and the bail wire assembly.
INSTALLATION OF FUEL FILTER BOWL AND SCREEN.
1. Position the top of the filter bowl to the bracket and connect the fuel lines.
2. Spread the bail wire ends and insert them through the holes in the side of the mounting bracket and
the top of the filter bowl.
3. Position the bowl and bail wire, and tighten the bail nut.
4. Safety the bail nut and the bail wire assembly.
5. Install the engine cowling.
28-20-04
Page 28-10
Revised: December 21, 1981
2B5
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

Piper Arrow IV Turbo Specifications

General

Manufacturer	Piper Aircraft
Model	Arrow IV Turbo
Horsepower	200 hp
Seating Capacity	4
Landing Gear	Retractable tricycle
Range	773 nautical miles
Service Ceiling	20, 000 ft
Fuel Capacity	72 gallons
Propeller	2-blade constant speed
Max Takeoff Weight	2, 900 lb (1, 315 kg)
Stall Speed (Flaps Down)	55 knots
Rate of Climb	1, 000 ft/min
