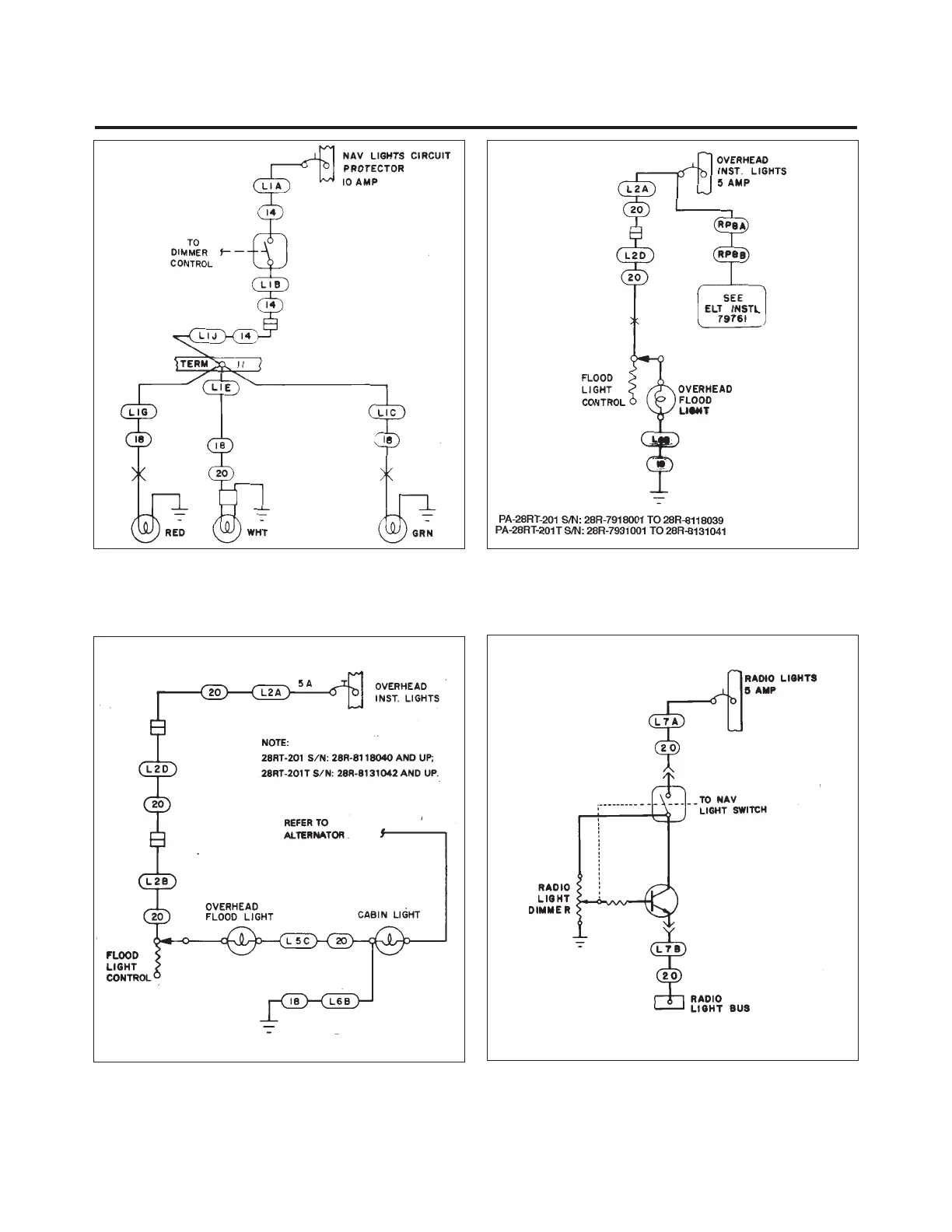

Figure 91-28. Navigation Lights, Figure 91-29. Cabin/Overhead Flood Light
PA-28RT-201 S/N’s: 28R-8118040 and up,
PA-28RT-201T S/N’s: 28R-8131042 and up
Figure 91-30. Cabin/Overhead Flood Lights Figure 91-31. Dimmer/Switch and Radio Lights,
PA-28RT-201 (Early Models)
91-00-09
Page 91-35
Revised: August 17, 1982
3I23
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

Piper Arrow IV Turbo Specifications

General

Manufacturer	Piper Aircraft
Model	Arrow IV Turbo
Horsepower	200 hp
Seating Capacity	4
Landing Gear	Retractable tricycle
Range	773 nautical miles
Service Ceiling	20, 000 ft
Fuel Capacity	72 gallons
Propeller	2-blade constant speed
Max Takeoff Weight	2, 900 lb (1, 315 kg)
Stall Speed (Flaps Down)	55 knots
Rate of Climb	1, 000 ft/min
