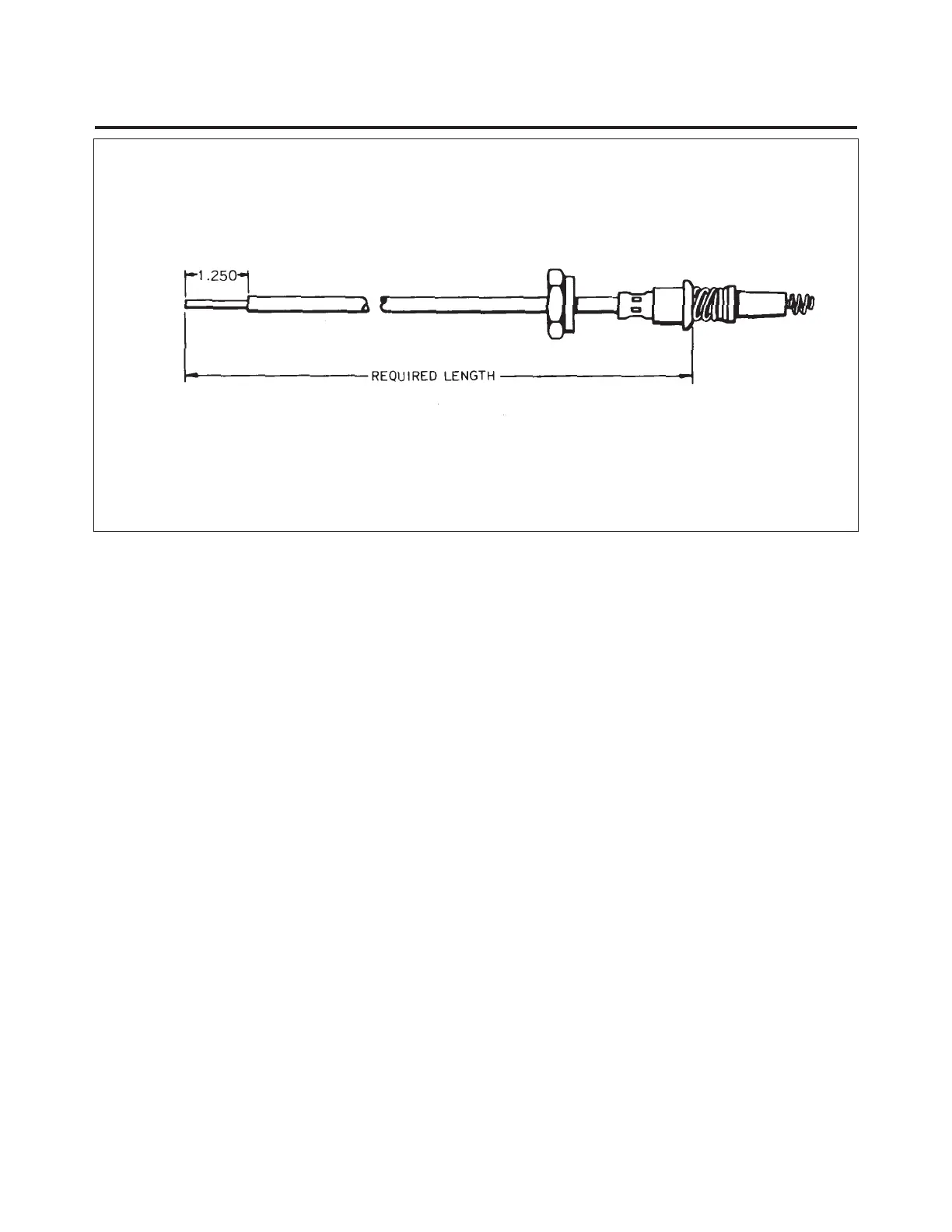

Figure 74-14. Measuring Lead Assembly Length
F. Cut the lead assembly to the length determined in Step E. Mark the ferrule on the spark plug end
of the lead with a metal stamp, scribe or rubber stamp to correspond with the correct cylinder
number.
G. Starting at the spark plug location, thread the new cable through the grommets and clamps as
necessary for the correct routing of the cut end of the cable to the magneto location.
H. Remove the cable outlet plate from the magneto. Support the plate securely and using suitable
cutting pliers, split and remove the eyelets from the leads adjacent to the lead being replaced.
When splitting the eyelet, make certain that the wire strands are not cut. Removal of eyelets on
adjacent leads will allow the grommet to be pulled away from the outlet plate to facilitate insertion
of the new lead.
I. Assemble the lead to the cable outlet plate following the procedure in Steps J through Q.
—CAUTION—
Insure before every cutting or stripping procedure that braid has
not worked back on lead by grasping lead in one hand and
sliding the other hand firmly along lead toward the outlet plate. If
braid is improperly located on lead, the lead may be trimmed to
the wrong length.
Effectivity 74-21-02
PA-28RT-201T Page 74-15
December 1, 1978
