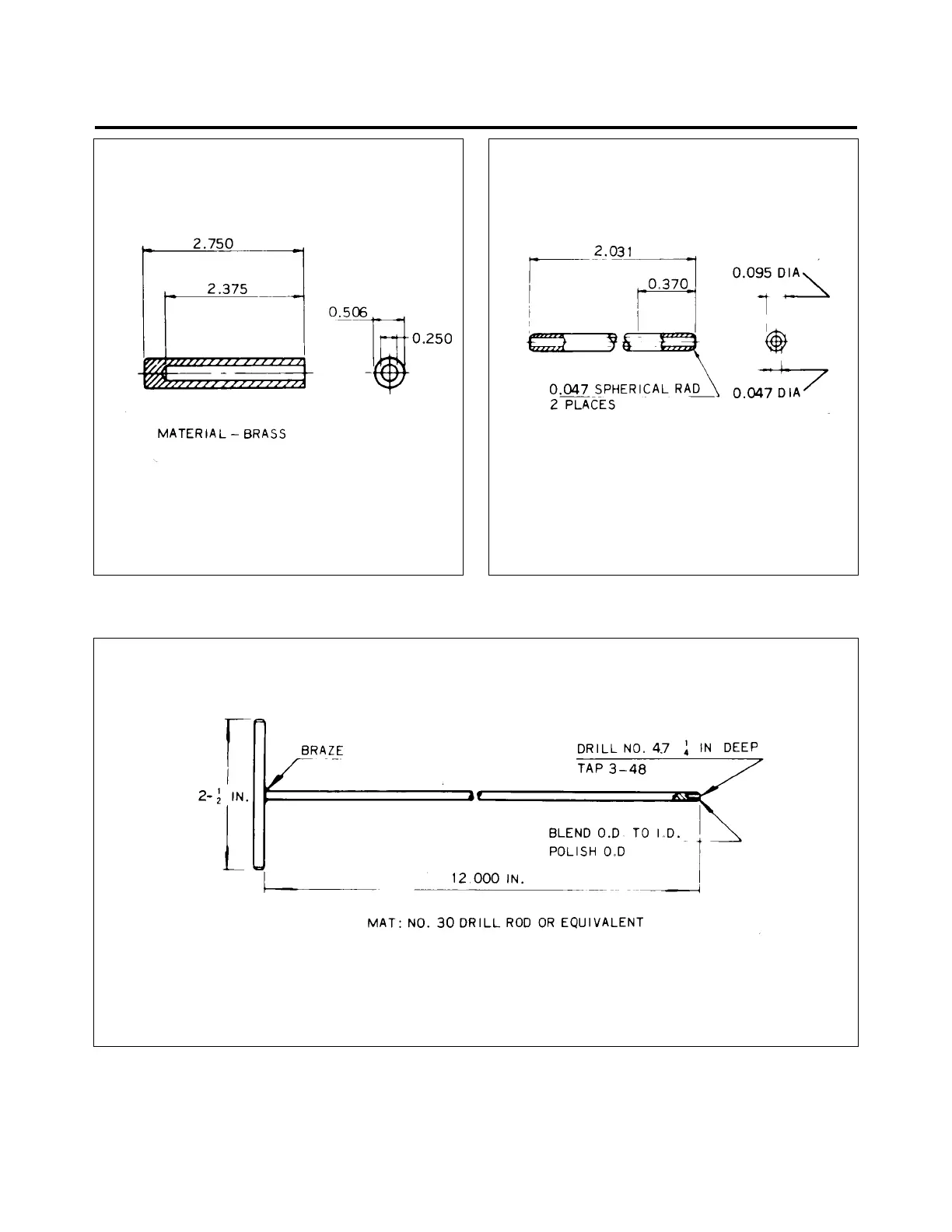

Figure 95-3. Ignition Harness Ferrule Figure 95-4. Needle
Seating Tool
Figure 95-5. Assembly Tool For Ignition Harness Insulating Sleeve Installation
95-10-01
Page 95-04
Added: December 21, 1981
3K6
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Piper Arrow IV Turbo and is the answer not in the manual?

Piper Arrow IV Turbo Specifications

General IconGeneral
ManufacturerPiper Aircraft
ModelArrow IV Turbo
Horsepower200 hp
Seating Capacity4
Landing GearRetractable tricycle
Range773 nautical miles
Service Ceiling20, 000 ft
Fuel Capacity72 gallons
Propeller2-blade constant speed
Max Takeoff Weight2, 900 lb (1, 315 kg)
Stall Speed (Flaps Down)55 knots
Rate of Climb1, 000 ft/min
