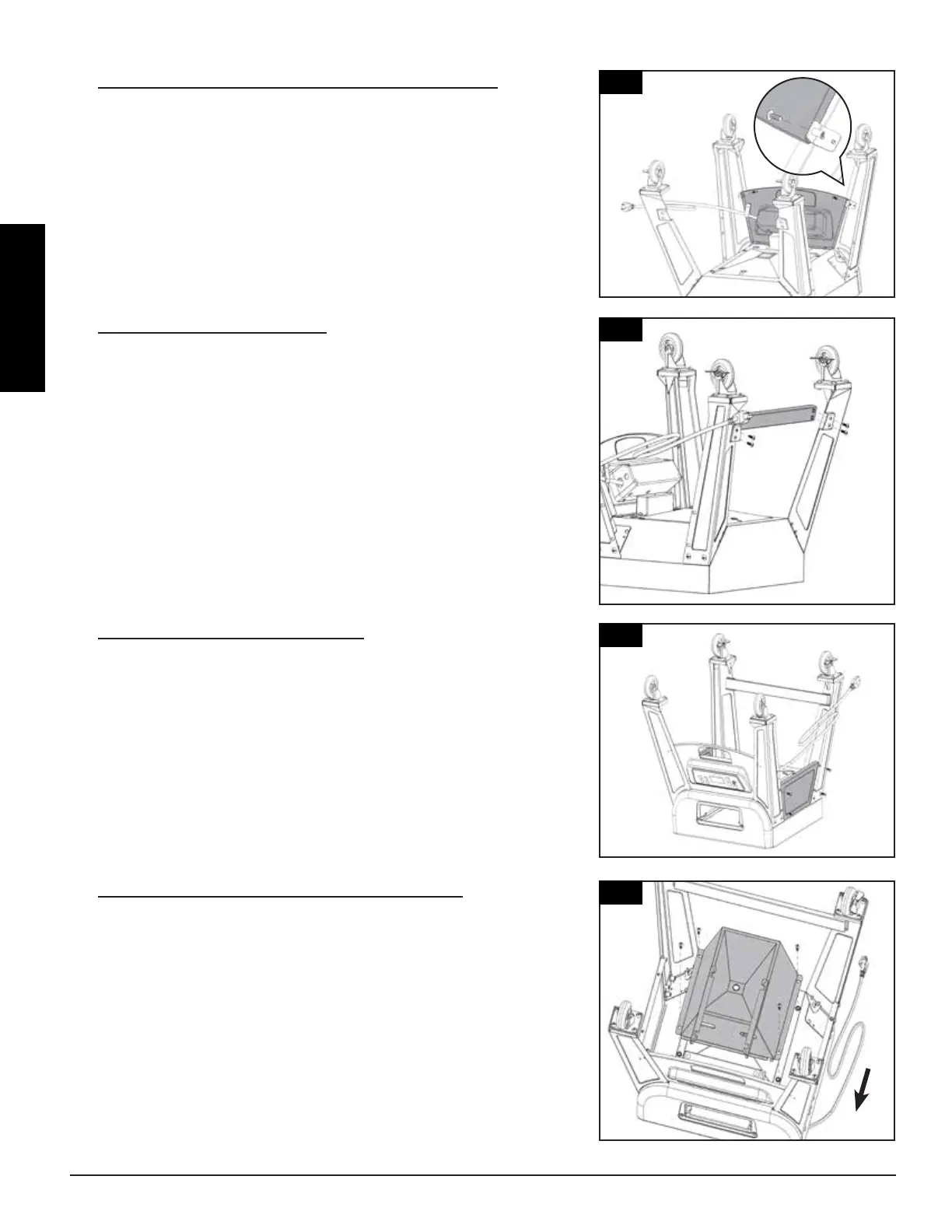

3.
Parts Required:
2 x #10–24x½" Screw (
#C)
Installation:
• Near the Control Board, loosen the two screws connecting the front
panel to the main cabinet.
• Using another two screws, secure the front panel sides to the front-
facing support legs. Once these screws are tight, re-tighten the two
screws that were previously loosened.
4.
Parts Required:
1 x Support Bar
(#15)
4 x #10–24x½" Screw (
#C)
Installation:
• Install the support bracket to the rear of the unit between the two
rear support legs. Secure using two screws on each side. Ensure the
support bracket is place on the underside of the main cabinet, facing
inwards. Note illustration for support bracket arrangement.
NOTE: The support bracket with two holes along the bottom should
be on the same side of the unit as the power cord exits the control
board (left side). This is important for later steps.
5.
Parts Required:
2 x Support Panel
(#16)
8 x #10–24x½" Screw (
#C)
Installation:
• Install one support panel to the side of the unit between a front and
back support leg. Secure using two screws on each side. Ensure the
flat side of the support plate is facing outwards. Repeat the same
installation to mount the other support panel. Note illustration for
support panel arrangement.
6.
Parts Required:
1 x Bottom Chamber Assembly
(#20)
4 x #10–24x½" Screw
(#C)
Installation:
• Mount the bottom chamber assembly to the bottom of the cabinet
base using four screws. Ensure the rails for the grease tray are facing
the front of the unit. Note illustration for proper positioning.
4
5
6
3
15
16
20
To Next Page
