Pit Boss PBV3D1 User Manual

11
10

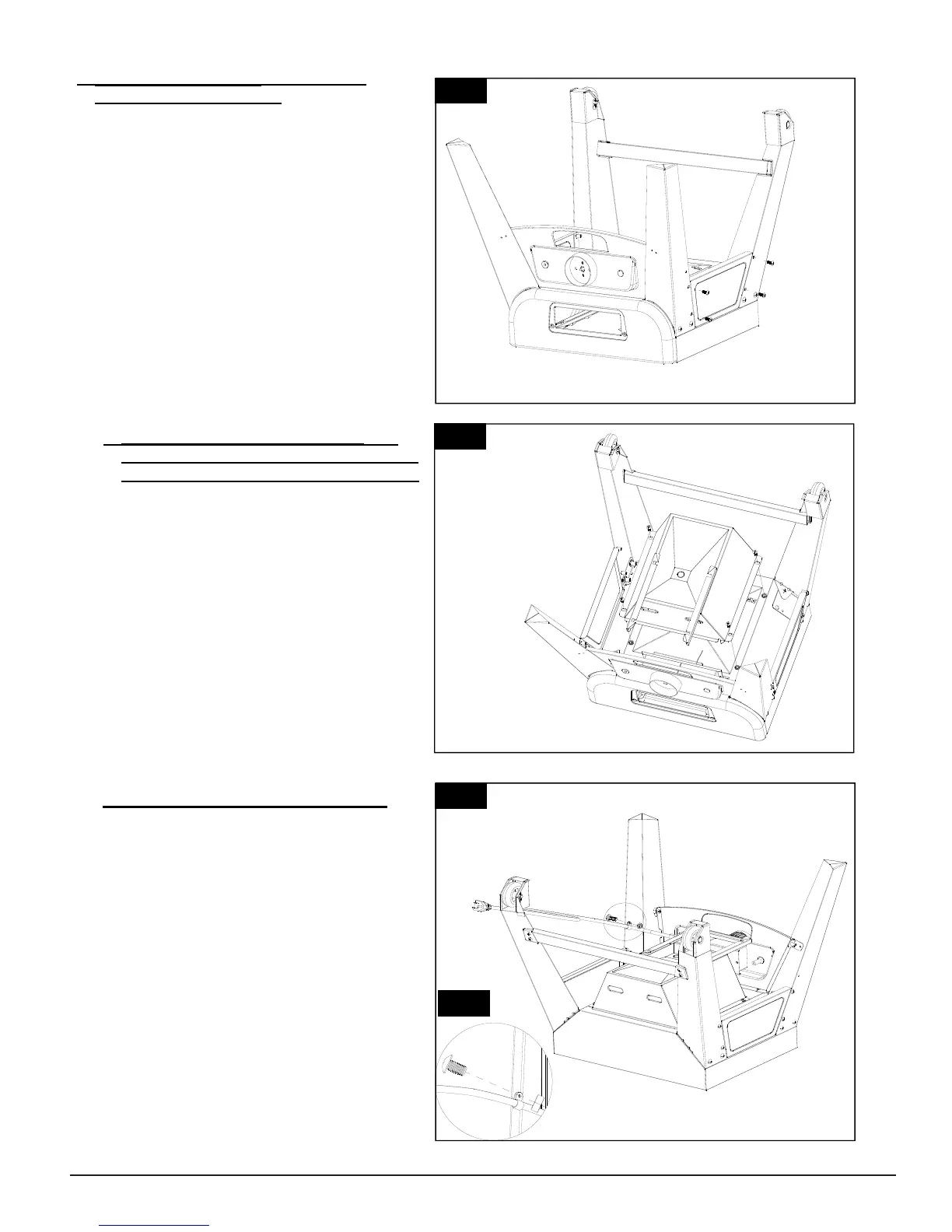

4.
MOUNTING SUPPORT
PANELS TO FOUR LEGS
Parts Required:
2 x Support Panel (#20)
1 x Right Front Leg (#22)
1 x Left Front Leg (#19)
1 x Right Rear Leg with Wheel Assembly (#17)
1 x Left Rear Leg with Wheel Assembly (#18)
8 x #10-24*1/2”Screw (#C)
Installation:
Fig.4
• Mount Support Panel (#20) to the Right Front
Leg (#22) and Right Rear Leg with Wheel
Assembly (#17) using 4 x #10-24*1/2” Screws
(#C) as Fig.4 shown.
• Mount Support Panel (#20) to Left Front Leg
(#19) and Left Rear Leg with Wheel
Assembly (#18) using 4 x #10-24*1/2” Screws
(#C) as Fig.4 shown.
5. MOUNTING BOTTOM CHAMBER
ASSEMBLY TO THE BOTTOM AREA OF
LOWER SMOKER CABINET ASSEMBLY
Parts Required:
1 x Bottom Chamber Assembly (#23)
1 x Lower Smoker Cabinet with Control
Panel Assembly (#14)
4 x #10-24*1/2”Screw (#C)
Installation:
• Mount Bottom Chamber Assembly (#23)
to the bottom area of Lower Smoker
Cabinet with Control Panel Assembly
(#14) using 4 x #10-24*1/2”Screws (#C)
as Fig.5 shown.
Fig.5
6.
MOUNTING POWER CORD MOUNTING
BRACKET ONTO LEFT FRONT LEG
Parts Required:
1 x Left Front Leg (#19)
1 x #8-32*1/2”Screw (Pre-assembled
on Left Front Leg)
1 x #8-32 nut (Pre-assembled on Left
Front Leg)
1 x Power Cord Mounting Bracket (Pre-
assembled on Left Front Leg)
Installation:
• Mount Power cord mounting bracket
onto the Left Front Leg (#19) using 1 x
#8-32*1/2”Screw and #8-32 nut as
Fig.6.1 & Fig.6.2 shown.
Fig.6.1
#20
-----------
#23
----------------------
Fig.6.2
