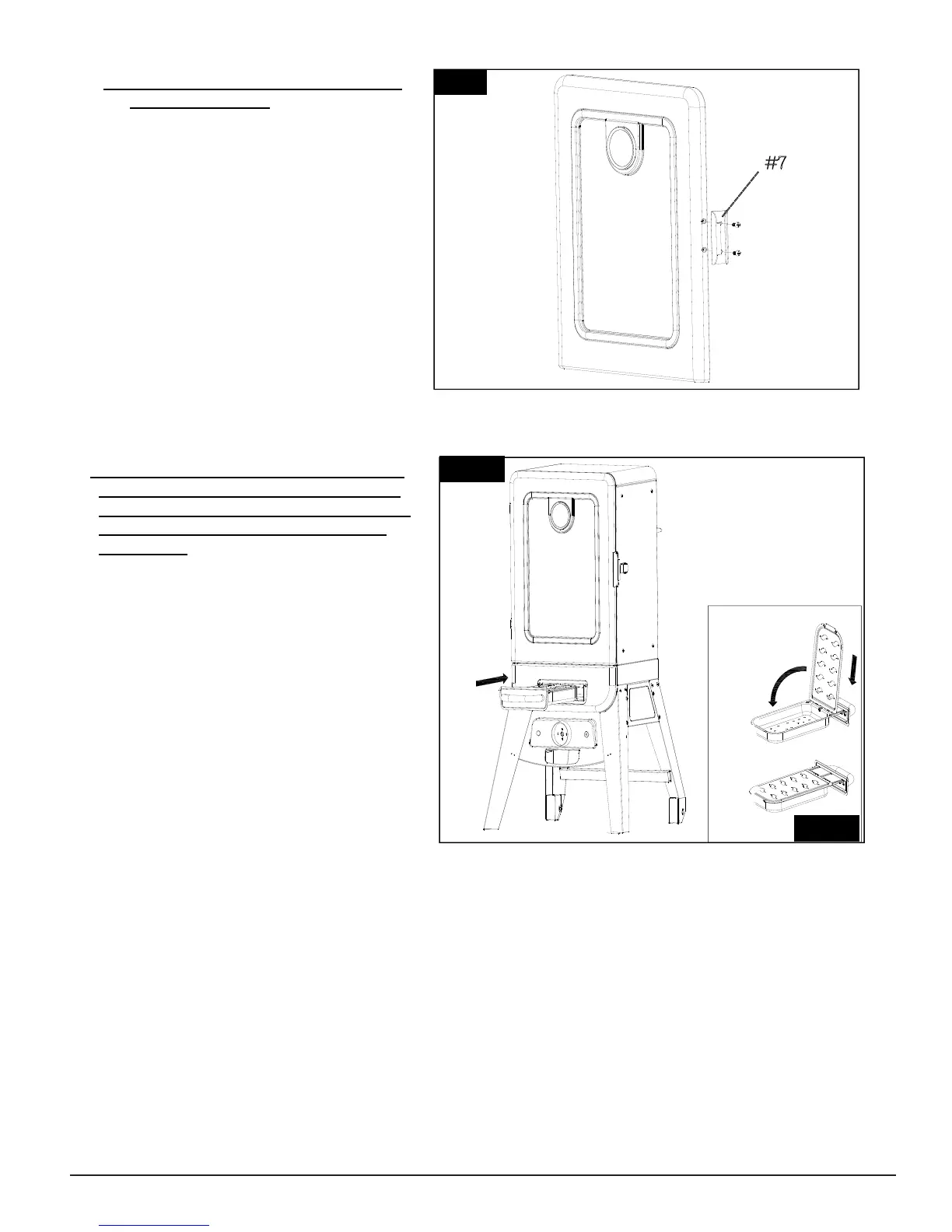

16.

MOUNTING DOOR HANDLE TO THE

DOOR ASSEMBLY

Parts Required:

1 x Door Handle (#9)

1 X Door Assembly (#7)

2 x #10-24*1/2”(#C)

Installation:

• Attach the Door Handle (#9) to the

Door Assembly (#7) using 2

x #10-24*1/2” (#C) as Fig.16 shown.

17.

MOUNTING WOOD CHIPS BOX HANDLE

ONTO WOOD CHIPS BOX AND SLIDING

WOOD CHIPS BOX WITH LID ASSEMBLY

INTO THE LOWER SMOKER CABINET

ASSEMBLY

Parts Required:

1 x Wood Chip Box Lid (#10)

1 x Wood Chip Box Assembly (#11)

1 X Lower Smoker Cabinet Assembly (#14)

Installation:

• Put the Wood Chip Box Lid (#10) on the

Wood Chip Chip Box Assembly (#11) and slide

Wood Chip Box onto the Wood Chip Box

support rails of Lower Smoker Cabinet

Assembly (#14) as Fig.17.1 Fig. 17.2 shown.

Note: When removing the Wood Chip Box

from the smoker, lift up on the handle and

pull out the Wood Chip Box.

Fig.16

Fig.17.1

Fig.17.2

#11

-----------
