7.
MOUNTING POWER CORD MOUNTING
BRACKET ONTO LEFT FRONT LEG
Parts Required:
1 x Left Front Leg (#18)
1 x #8-32*1/2”Screw (#F)
1 x #8-32 nut (#G)
Installation:
• Mount Power cord mounting bracket onto
the Left Front Leg (#18) using 1 x
#8-32*1/2”Screws (#F) and #8-32 nut (#G)
as Fig.7.1.
Fig.7

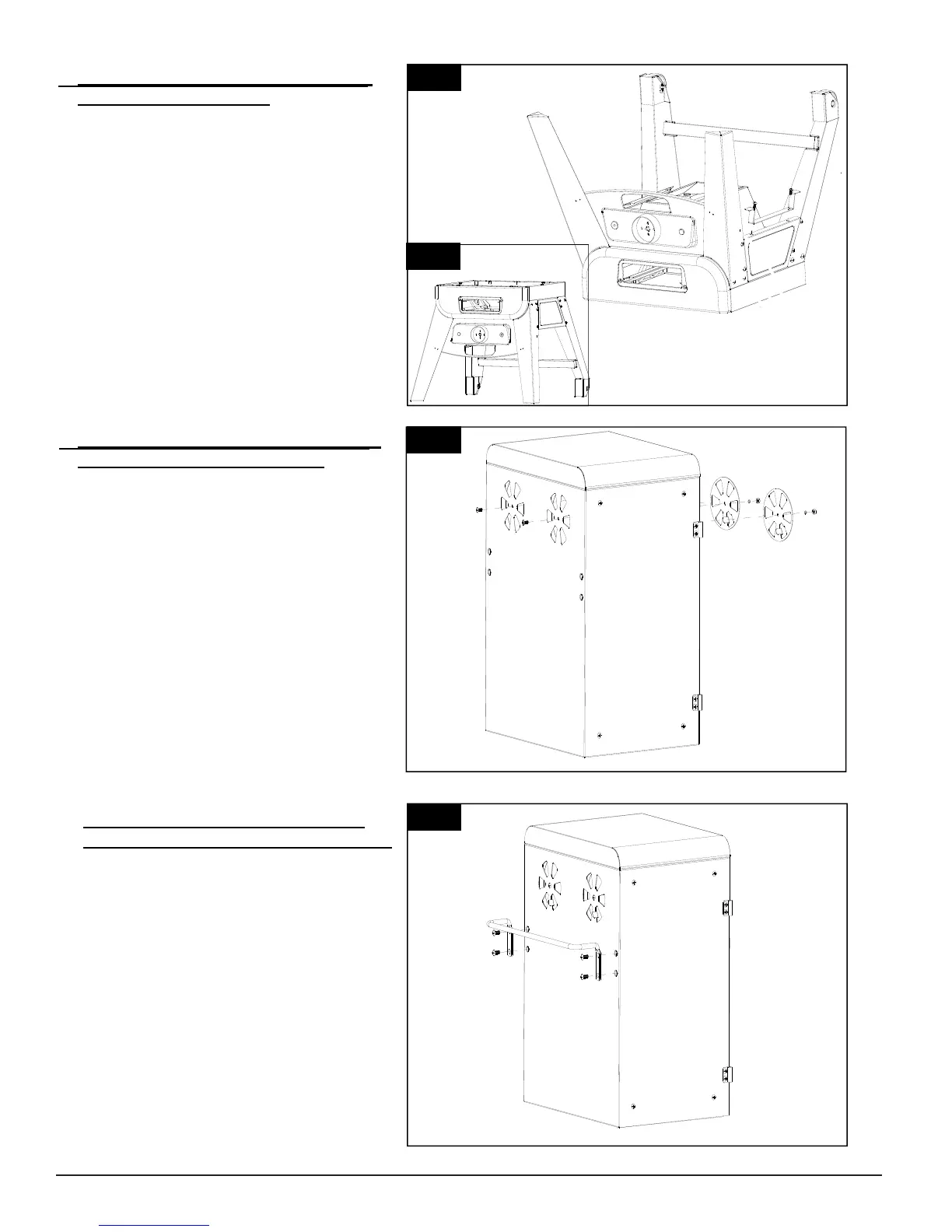

8.
MOUNTING POWER CORD BRACKET
ONTO LEFT LEG PANEL
Parts Required:
1 x Support Panel (#14)
1 x Power Cord Bracket (#24)
2 x #10-24*1/2”Screw (#C)
Installation:
• Mount Power Cord Bracket (#24) onto
the left side of Support Panel (#14) using
2 x #10-24*1/2”Screw (#C) as Fig.8.1
shown.
9.
MOUNTING DAMPERS TO THE
UPPER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Door Assembly (#8)
1 x Upper Smoker Cabinet Assembly (#2)
2 x Damper (#1)
2 x #10-24*1/2”Screw (#C)
2 x #10-24 Nut (#D)
2 x M5 Spring Washer (#E)
Installation:
• Mount Dampers (#1)to the Upper
Smoker Cabinet Assembly (#2) using 2 x
#10-24*1/2”Screws (#C), 2 x M5 Spring
Washer (#E) and 2 x #10-24 Nut (#D) as
Fig.9 shown.
Fig.9
Fig.8.1
Note: Turn the Lower Smoker Cabinet
with Control Panel and Legs Assembly
Right Side Up as Fig.8.2 shown and
tighten all screws now.
Fig.8.2
#18
-
----
-
-
-
-
--
#24
----
-
-
-
-----
----
#1
-
-
--
-
--
--
