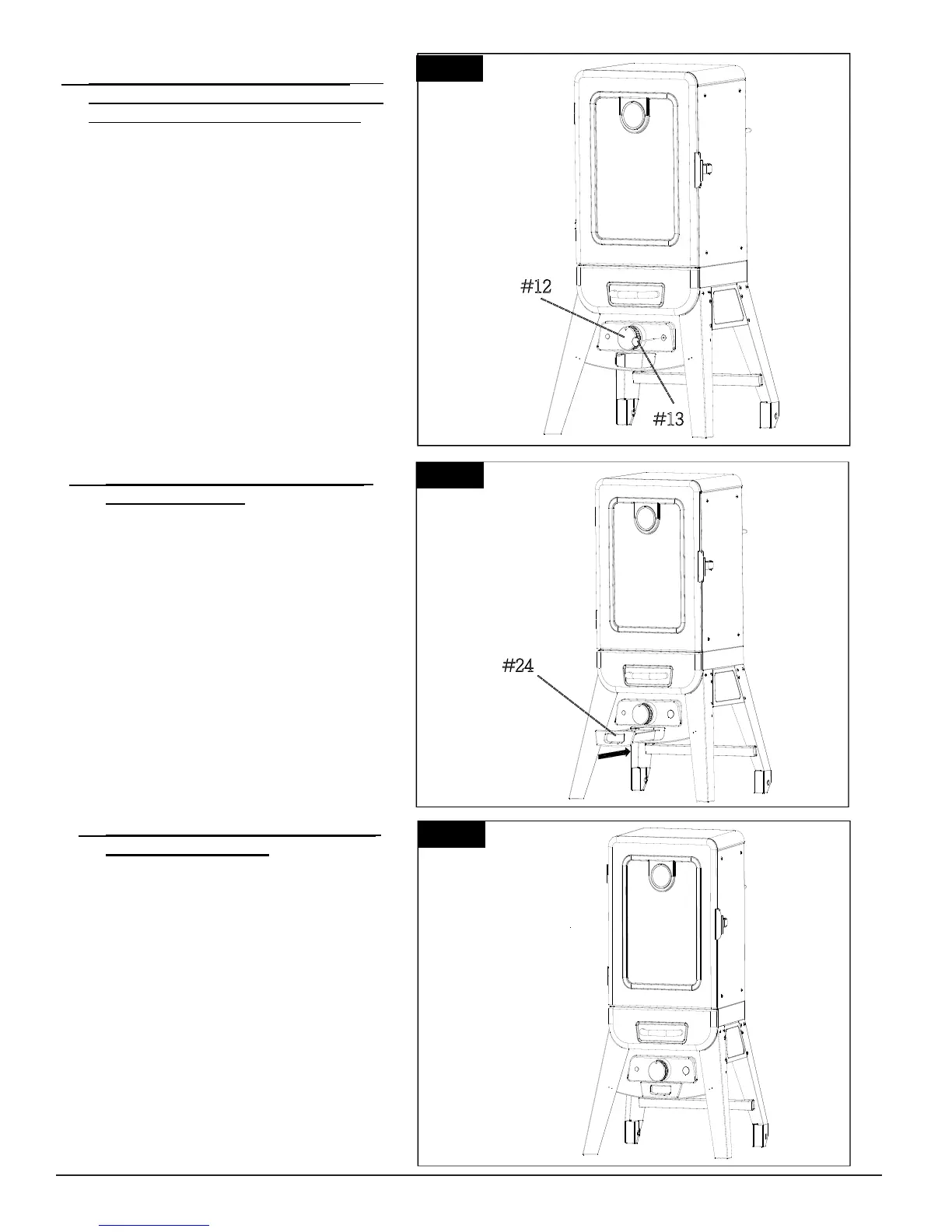

18.

PLACING CONTROL KNOB INTO THE

VALVE STEM AND INSERTING MEAT

PROBE INTO THE BOTTOM PANEL

Parts Required:

1 x Control Knob (#12)

1 x Meat Probe (#13)

Fig.19

19.

SLIDING GREASE TRAY INTO THE

CONTROL PANEL

Installation:

Fig.19

20. Assembly of the 3.2 Analog Electric

Smoker is completed

Fig.20

Installation:

• Place Control Knob (#12) over the valve

stem, making certain to align the flat portion

of the stem with the flat portion of the knob

and push the Control Knob (#12) onto the

stem until it is firmly seated. as Fig.18 shown.

•Slide Grease Tray Assembly (#24) into the

grease tray support rails provided in

the bottom panel as Fig.19 shown.

#12

•Insert Meat Probe (#13) into the bottom

panel as Fig.18 shown.

#13

#24

Parts Required:

1 x Grease Tray Assembly(#24)
