Parts Required:
1 x Grease Bucket
(#21)
Installation:

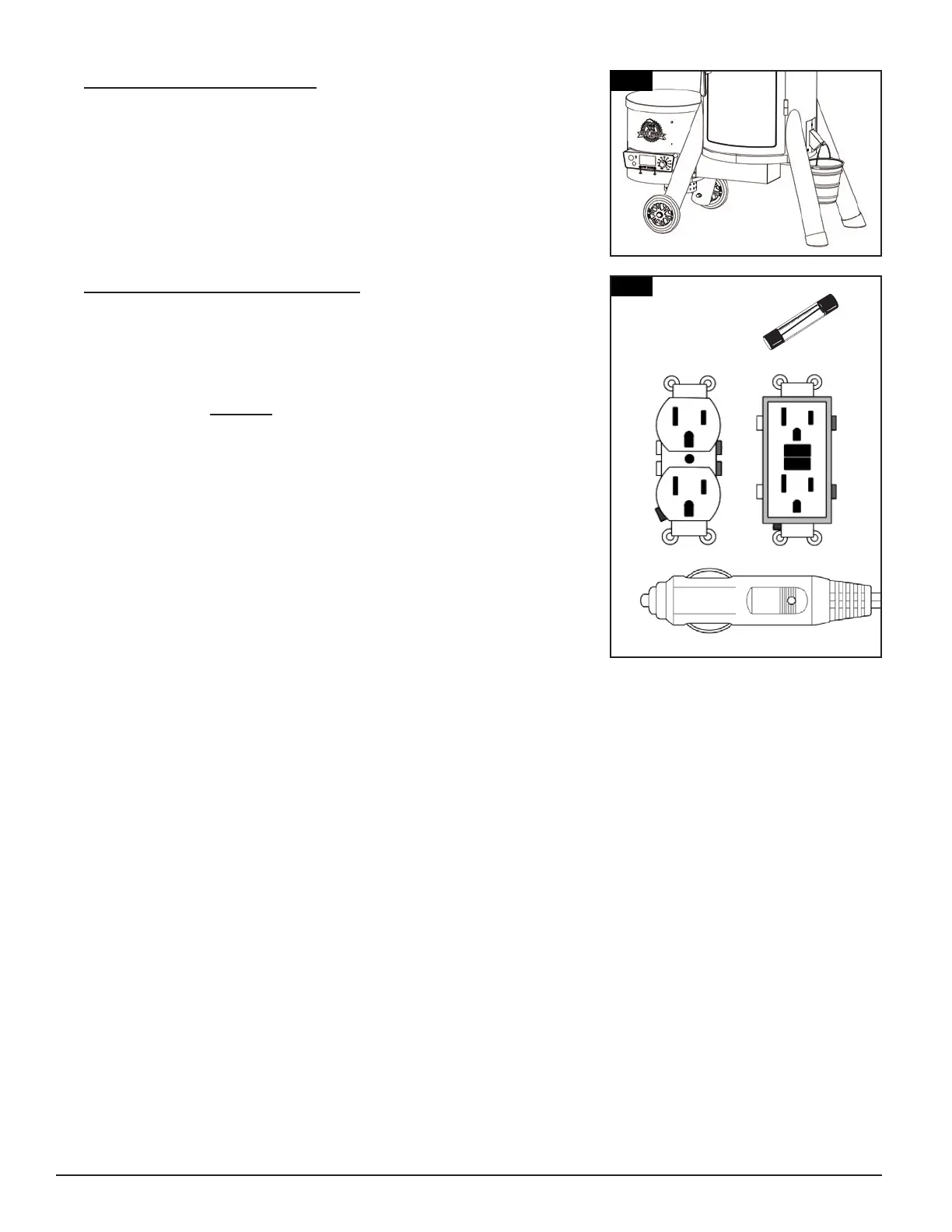

• Place the grease bucket on the spout hook on the end of the grease
trough. Ensure it is level to avoid grease spills.
• The unit is now completely assembled.
14.
NOTE: Before plugging your Pit Boss into any electrical outlet, ensure
the temperature dial is in the OFF position.
•
This appliance requires 120 volt, 60hz, 250w, 2.1amp service. It must
be a 3-prong grounded plug. Ensure grounded end is not broken
off before use. The control uses a 5 amp, 120 volt, fast-blow fuse to
protect the board from the igniter.
•
This appliance will work on most GFCI outlets, with a recommended
size of 15 amp service. If your GFCI outlet is highly sensitive to power
surges, it will likely trip during the start-up phase of operation. During
the start-up phase, the igniter draws 200-700 watts of electricity
which can be too much power for a GFCI outlet to handle. Each time it
trips, it increases in sensitivity. If the GFCI keeps tripping, replace the
outlet or change to a non-GFCI outlet.
•
Disconnect the igniter from the main wiring harness. Use the manual
start-up procedure. A Pit Boss unit can operate using a 12 volt, 100 watt
inverter plugged into your automobile outlet. To use the automatic
igniter, it is recommended to use a minimum of a 1000 watt inverter.
IMPORTANT: Disconnect unit from power source when not in use.
