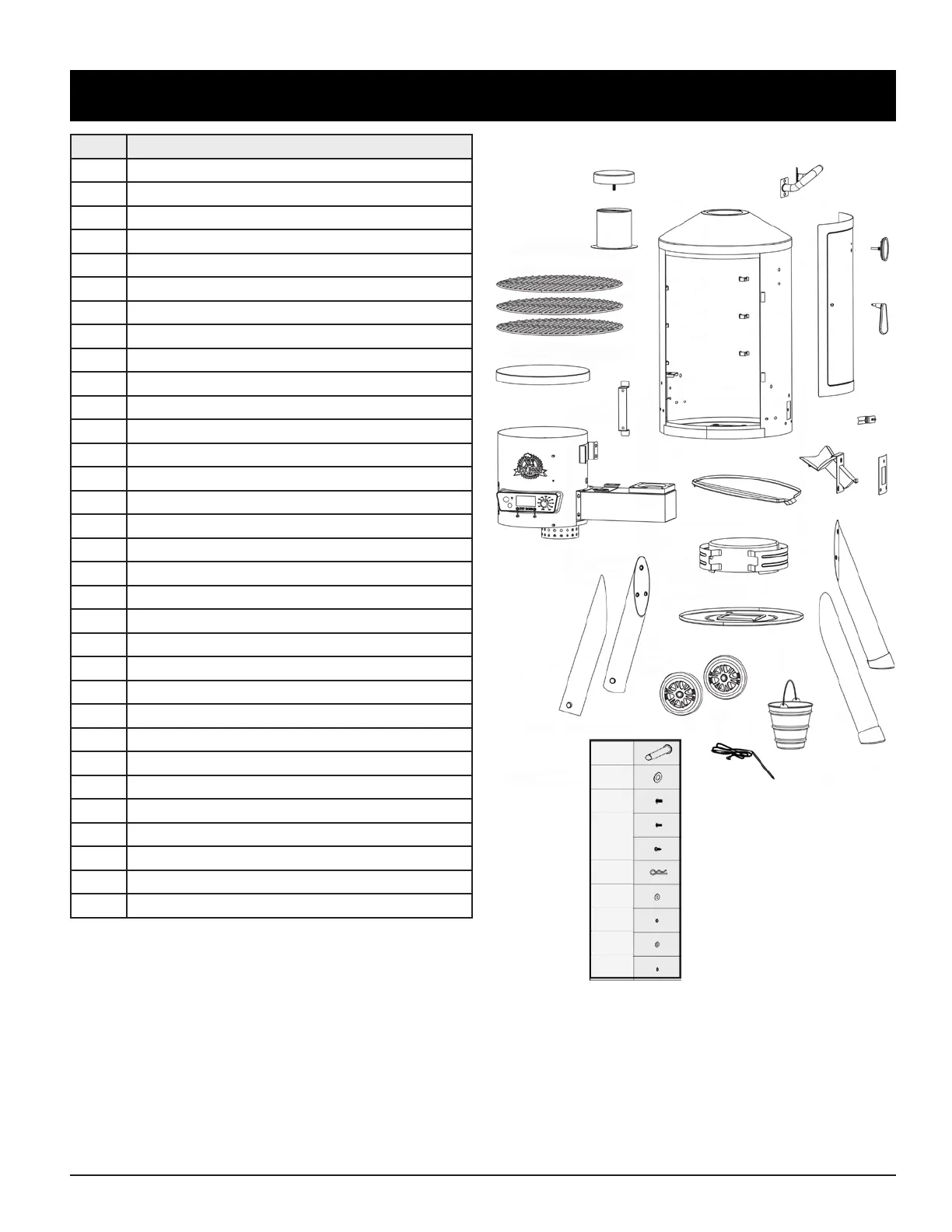

Part# Description
1-A Chimney Cap (x1)
2-A Chimney Stack (x1)
3-A Cooking Grids (x3)
4-A Main Barrel (x1)
5-A Main Barrel Handle (x1)
6-A Main Barrel Door (x1)
7-A Thermometer (x1)
8-A Main Barrel Door Handle (x1)
9-A Power Cord Bracket (x1)
10-A Hopper Lid (x1)
11-A Hopper (x1)
12-A Flame Diffuser Plate (x1)
13-A Grease Trough (x1)
14-A Grease Trough Gasket (x1)
15-A Main Barrel Door Latch (x1)
16-A Heat Tent (x1)
17-A Grease Pan (x1)
18-A Support Leg (x2)
19-A Stationary Support Leg (x2)
20-A Wheel (x2)
21-A Grease Bucket (x1)
22-A Meat Probe (x1)
A-A Wheel Axle Pin (x2)
B-A Wheel Washer (x2)
C-A Screw (x27)
D-A Screw (x7)
E-A Screw (x4)
F-A Wheel Cotter Pin (x2)
G-A Washer (x27)
H-A Locking Washer (x27)
I-A Washer (x7)
J-A Locking Washer (x7)
NOTE: Due to ongoing product development, parts are subject to change without notice.
