7
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed. Hardware combination involving a locking washer and
washer should be installed with the locking washer closest to the head of the screw.
1.
Parts Required:
1 x Main Cabinet
(#4)
2 x Support Leg
(#18)
2 x Stationary Support Leg
(#19)
12 x Screw
(#C)
12 x Washer
(#G)
12 x Locking Washer
(#H)
Installation:

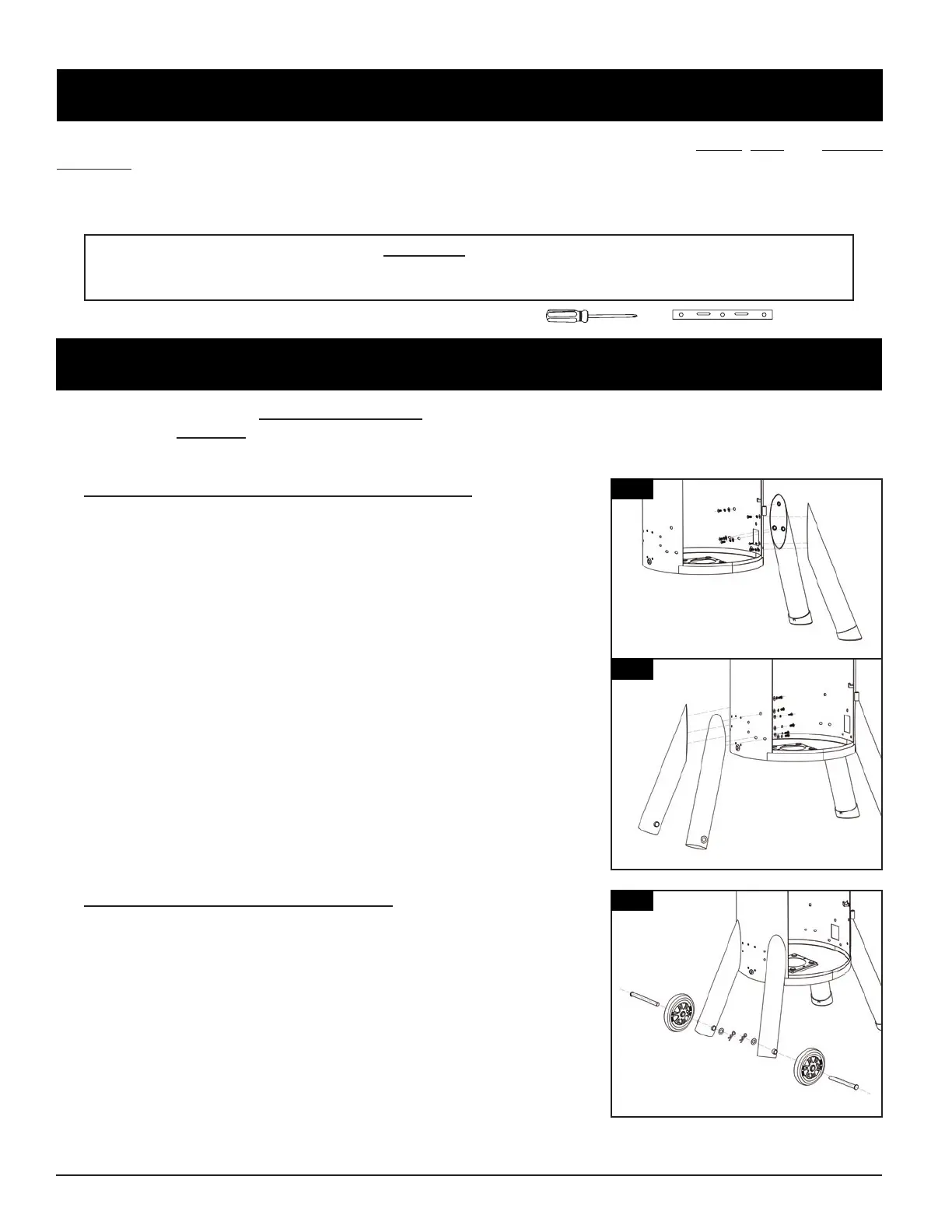

• Place a piece of cardboard on the floor to prevent scratching the unit and
parts during assembly. Assemble one stationary support leg to the right
side of the main barrel using three washers, locking washers and screws
from the inside. Repeat same installation for second stationary support
leg. Note illustration 1.
• Assemble one support leg to the left side of the main barrel using three
washers, locking washers and screws from the inside. Repeat same
installation for second support leg. The front and rear support legs are
labeled in accordance with their position. Note illustration 1.
2.
Parts Required:
2 x Wheel Axle Pin
(#A)
2 x Wheel
(#20)
2 x Wheel Washer
(#B)
2 x Wheel Cotter Pin
(#F)
Installation:
• Attach the large wheel to the support leg by inserting the wheel axle pin
through the wheel, support leg hole, wheel washer, then secure using the
wheel cotter pin. Repeat installation for the other wheel on same side.
IMPORTANT: Re-tighten the support leg screws to ensure they are
secure after the wheels are installed. Smoker should be level.
Parts are located throughout the shipping carton, including underneath the smoker. Inspect the smoker, parts, and hardware
blister pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the
smoker before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not
attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss Customer Service for parts:
Monday through Sunday, 4am - 8pm PST (EN/FR/ES).
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this
unit. Use extreme care when unpacking your Pit Boss Smoker. Do not place hopper directly onto its bottom,
this may cause damage to the fan.
Tools required for assembly: screwdriver and level.
Tools not included.
1
1
2
192
191
4
4
181
182
20
