ENGLISH
12

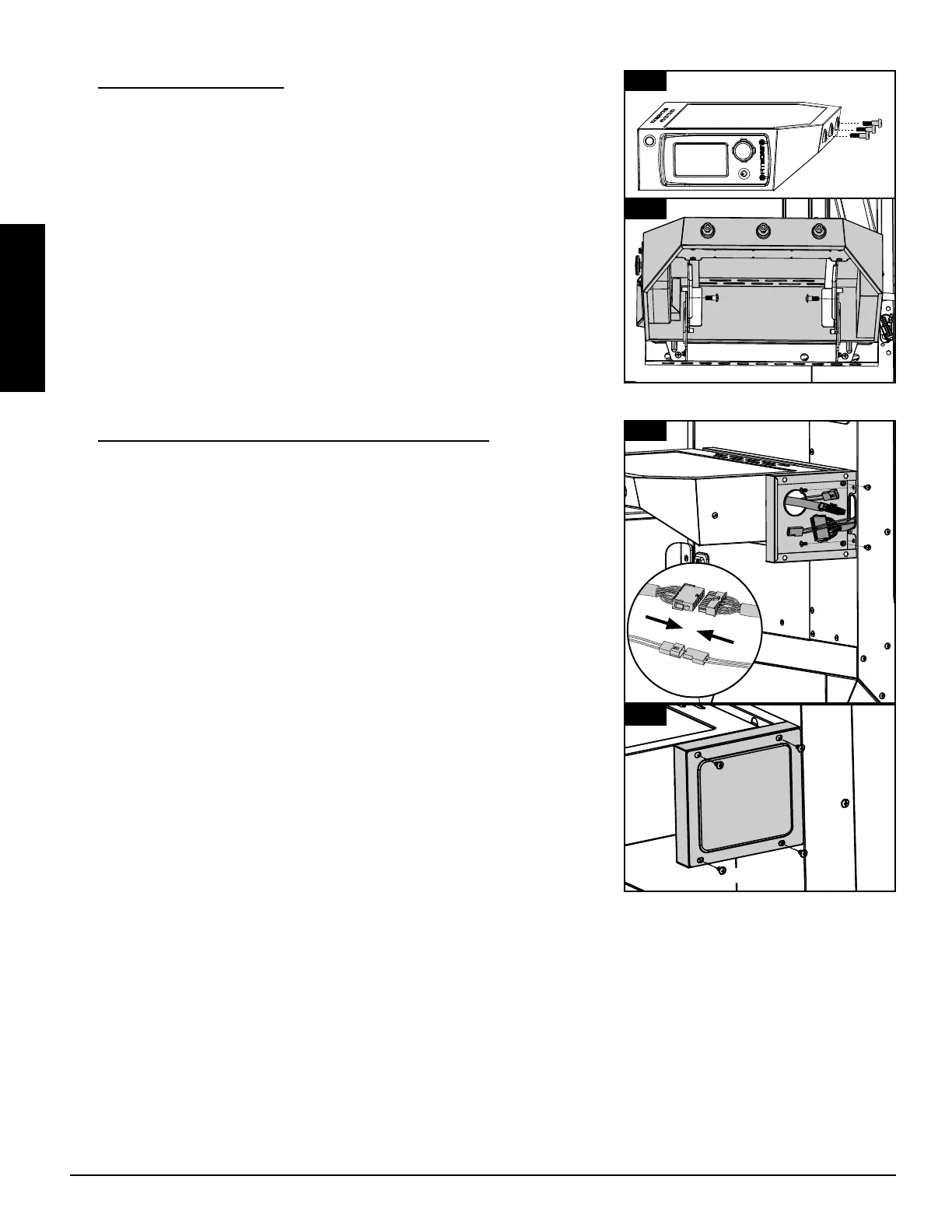

15.
Parts Required:
1 x Side Shelf
(#22)
3 x Tool Hooks
(#G)
2 x Screw (
#H)
Installation:
• On the edge of the Side Shelf with three holes, install the tool hooks
into each hole along the edge. The tool hooks will secure to the nut
that is pre-mounted on the inside. Note illustration 15A.
• Place the Side Shelf onto the Side Shelf Brackets and from underneath
secure each side with a screw on the inside edge of the Support
Bracket. Note illustration 15B.
IMPORTANT: Moving or lifting the grill by the side shelf will break
the shelf, which is not covered by warranty.
16.
Parts Required:
1 x Electrical Wire Box (
#19)
1 x Electrical Wire Box Lid (
#18)
8 x Screw (
#C)
Installation:
• Carefully move the control board wires through the holes on the
Electrical Wire Box, shown in illustration 16A. Secure it to the Main
Cabinet with screws. Connect the wires before placing the lid on the
wire box.
• Lastly, place the Electrical Wire Lid over the box and secure it with
screws on each corner.
16
16
19
18
15
15
22
