ENGLISH
8

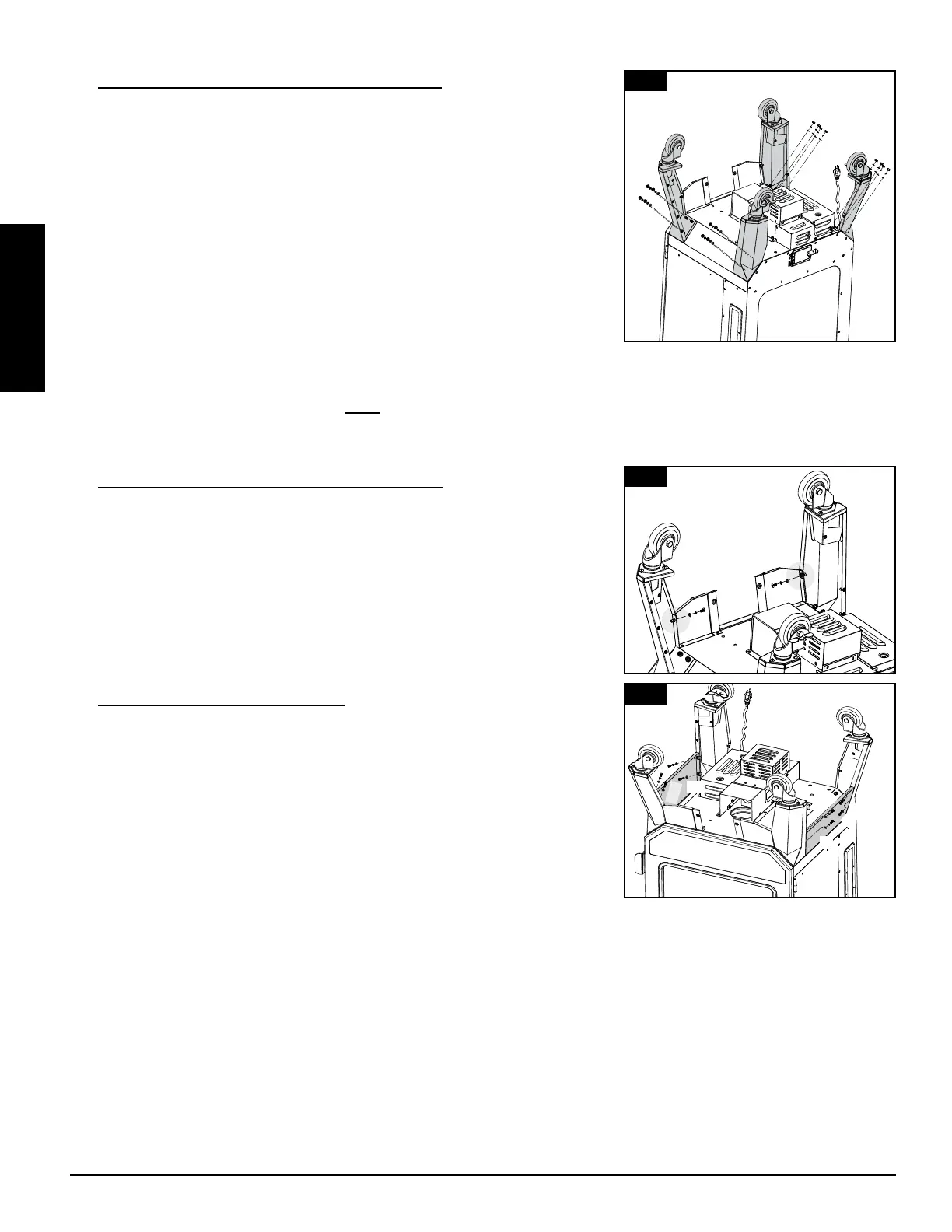

2.
Parts Required:
1 x Left Back Leg
(#5)
1 x Right Back Leg
(#6)
1 x Left Front Leg
(#7)
1 x Right Front Leg
(#8)
16 x Nut
(#E)
16 x Locking Washer
(#I)
16 x Washer
(#J)
1 x Wrench
(#F)
Installation:
• Align the legs over the screws. Place the washers, locking washers, and
nuts over the protruding screws for each leg. Hand-tighten until all
nuts are in place and finish securing them with the wrench.
IMPORTANT: The four support legs must be arranged correctly to be
able to properly install the support panels and support bar in a later
assembly step.
3.
Parts Required:
2 x Screw
(#C)
2 x Locking Washer (
#I)
2 x Washer
(#J)
Installation:
• Secure each Front Panel using a screw, locking washer, and washer to
their Support Leg.
4.
Parts Required:
2 x Support Panels (
#23)
8 x Screw
(#C)
8 x Locking Washer (
#I)
8 x Washer
(#J)
Installation:
• Install one support panel to the side of the unit between a front and back
support leg. Secure using two screws, locking washers, and washers on each
side. Ensure the flat side of the support plate is facing outwards. Repeat
the same installation to mount the other support panel. Note illustration
for support panel arrangement.
NOTE: The support panel with two holes along the bottom should be on
the same side of the unit as the power cord exits the control board (left
side). This is important for later steps.
4
23
23
3
2
8
7
5
6
