ENGLISH
6
MODEL UNIT ASSEMBLED (WxDxH) UNIT WEIGHT COOKING AREA TEMP. RANGE
6
1,053mm x 682mm x 1,460mm
/ 41.5" x 26.9" x 57.5"
80.8 kg
/ 178 lb
Cubic Cooking: 0.12 m
3
/ 4.3 ft
3
TOTAL
- 9,864 cm / 1,529 sq. in.
54-215°C
/ 130-420°F

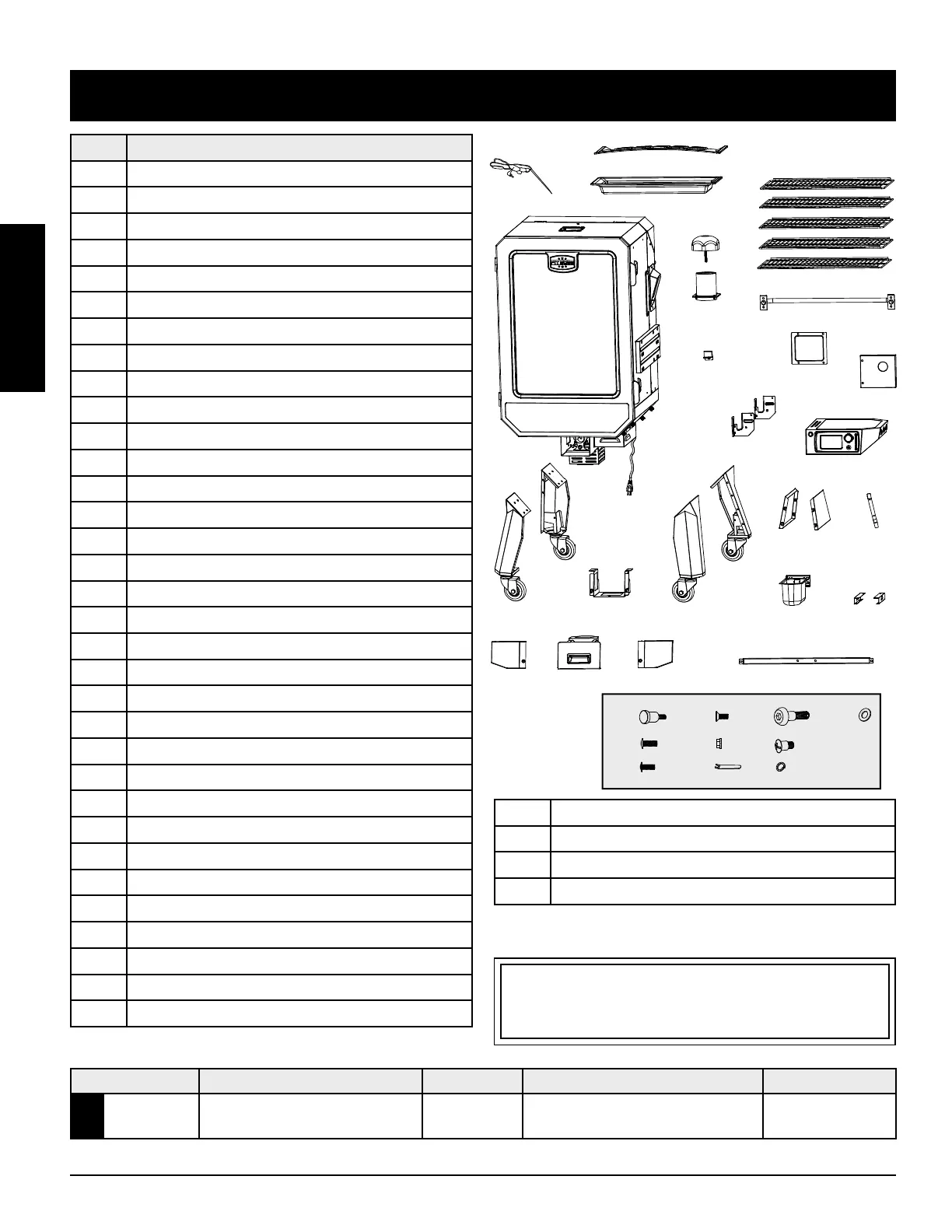

Part# Description
1 Cooking Grates (x5)
2 Heat Deflector Plate (x1)
3 Water Pan (x1)
4 Main Cabinet (x1)
5 Left Back Leg (x1)
6 Right Back Leg (x1)
7 Left Front Leg (x1)
8 Right Front Leg (x1)
9 Ash Box Bracket (x1)
10 Left Front Panel (x1)
11 Ash Box (x1)
12 Right Front Panel (x1)
13 Chimney Cap (x1)
14 Chimney Stack (x1)
15 Lid Stopper (x1)
16 Meat Probe (x1)
17 Hopper Handle (x1)
18 Electric Wire Box Lid (x1)
19 Electric Wire Box (x1)
20 Left Side Shelf Bracket (x1)
21 Right Side Shelf Bracket (x1)
22 Side Shelf (x1)
23 Support Panel (x2)
24 Power Cord Bracket (x1)
25 Grease Cup (x1)
26 Grease Tray Brackets (x2)
27 Support Bar (x1)
A Door Knob (x1)
B Screw (x10)
C Screw (x40)
D Screw (x2)
E Nut (x16)
F Wrench (x1)
1
2
5
3
4
11 12
23
22
24
25
26
27
20
21
13
15
19
17
18
16
9
7
8
10
6
14
G Tool Hook (x3)
H Screw (x2)
I Locking Washer (x32)
J Washer (x32)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
110120, 60, 3
12 / 90
