12

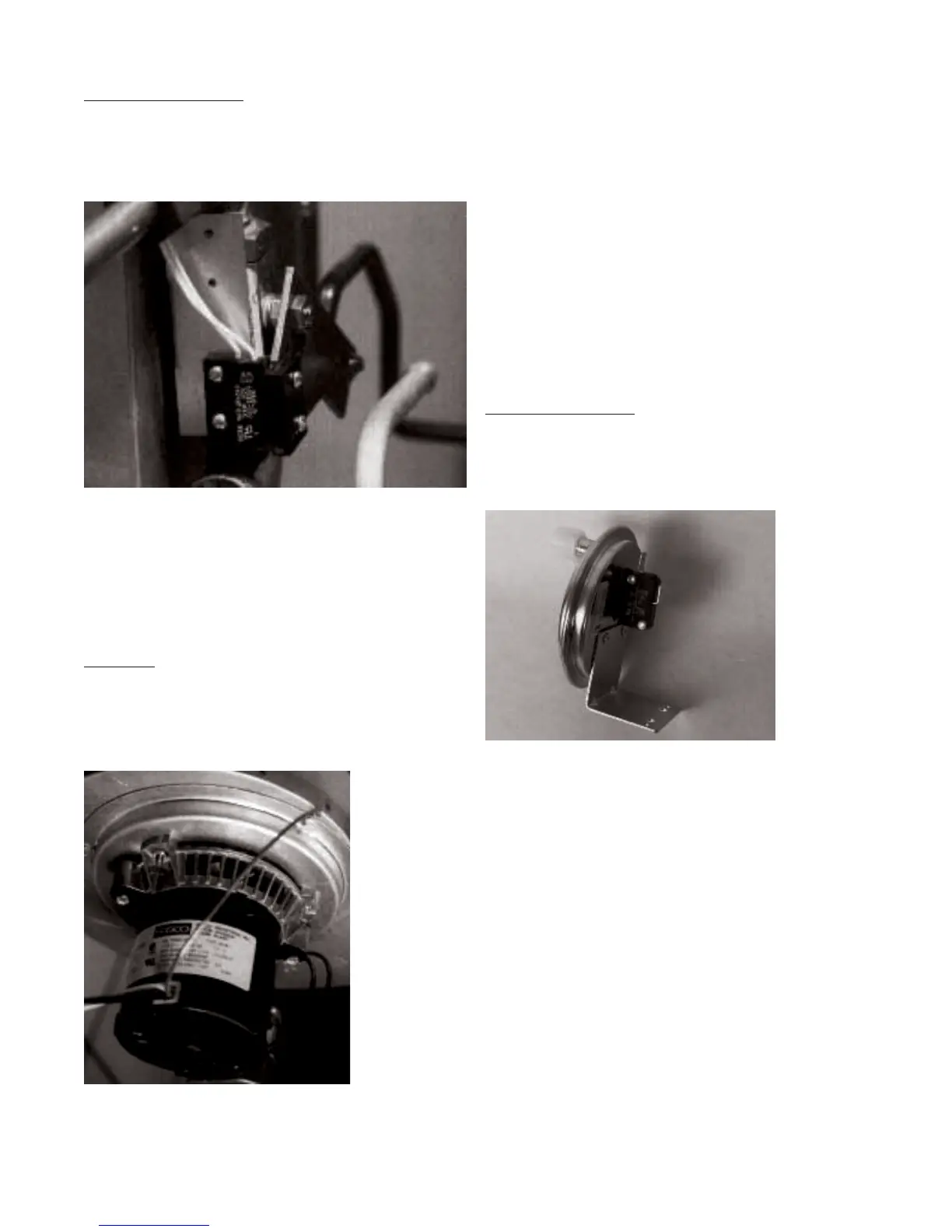

Proximity Switches:
1. The actuator can be removed by removing the 2
mounting screws.
2. The sensor may be removed by disconnecting
the wiring harness and by removing the 2 mount-
ing screws.
Install in the reverse order.
Blowers:
1. Unplug the wiring connector.
2. Remove the 3 screws from the mounting flange.
3. Using a flat screwdriver, break the seal at the
motor flange.
4. The motor can now be lowered out of the ma-
chine.
NOTE: The new blower will be shipped with the
blower housing attached. Remove the motor from
the blower housing in the above manner. Clean the
sealant from the new motor and the old housing (still
attached to the machine). Apply a small amount of
high temperature silicone sealant to the motor mount-
ing flange.
Install the motor in the reverse order of removal.
Pressure Switches:
1. Unscrew the plastic fitting from the air connec-
tion on the pressure switch.
2. Unplug the 2 wires from the switch.
3. Remove the 2 screws from the mounting bracket.
Install in the reverse order.
