INSTALLATION INSTRUCTIONS
CAUTION:
This equipment is manufactured for the use on a
particular type of gas and electrical voltage which
is specified on the rating plate located on the in-
side of the door.
When your fryers arrive, look them over carefully
noting any damage on the freight bill. If concealed
damage is found after you have accepted the equip-
ment, report it to the carrier immediately, as all claims
must be filled within 15 days of the receipt of the
shipment. Also, be sure to keep any packing materi-
als as these will be necessary to make a claim.
Follow these installation instructions carefully. A
proper installation is important for the operation of
the fryers.
In the United States, all installations must conform
to all local and state codes and well as the National
Fuel Gas Code (ANSI 223.1 1992). In Canada, in-
stallations must be made in accordance to Canadian
Standard CAN 1-B149.1 or .2 “Installation Codes
for Gas Burning Appliances & Equipment.”
Electrically operated appliances must be electrically
grounded in accordance with local codes; or in the
absence of local codes, with the National Electric
Code ANSI/NFPA No. 70-1996; in CANADA, with
CSA C22-1 Canadian Electrical Code Part 1.
NOTE: Should you experience a power failure, your
fryers will shut off automatically. If this happens, do
not attempt to restart the fryers until the power is
restored.
Ventilation:
A proper ventilation system is also an important part
of the installation. For information on the construc-
tion and installation of ventilating hoods, please see
“Standard for the Installation of Equipment for the
Removal of Smoke and Grease Laden Vapors from
Commercial Cooking Equipment”, N.F.P.A. No. 96-
1987. Copies can be obtained by writing to the Na-
tional Fire Protection Association, Battery March
Park, Quincy, MA 02269
NOTE: It is recommended that the ventilation sys-
tem be cleaned and maintained in accordance with
the procedures laid out in the appropriate Preventa-
tive Maintenance Card.
A note on Excessive Air Velocities within Hood
systems:
Extended recovery times and flame outage problems
may occur if Hood Air Velocities are excessively
high.
The installation of a small baffle may be necessary
if problems occur.

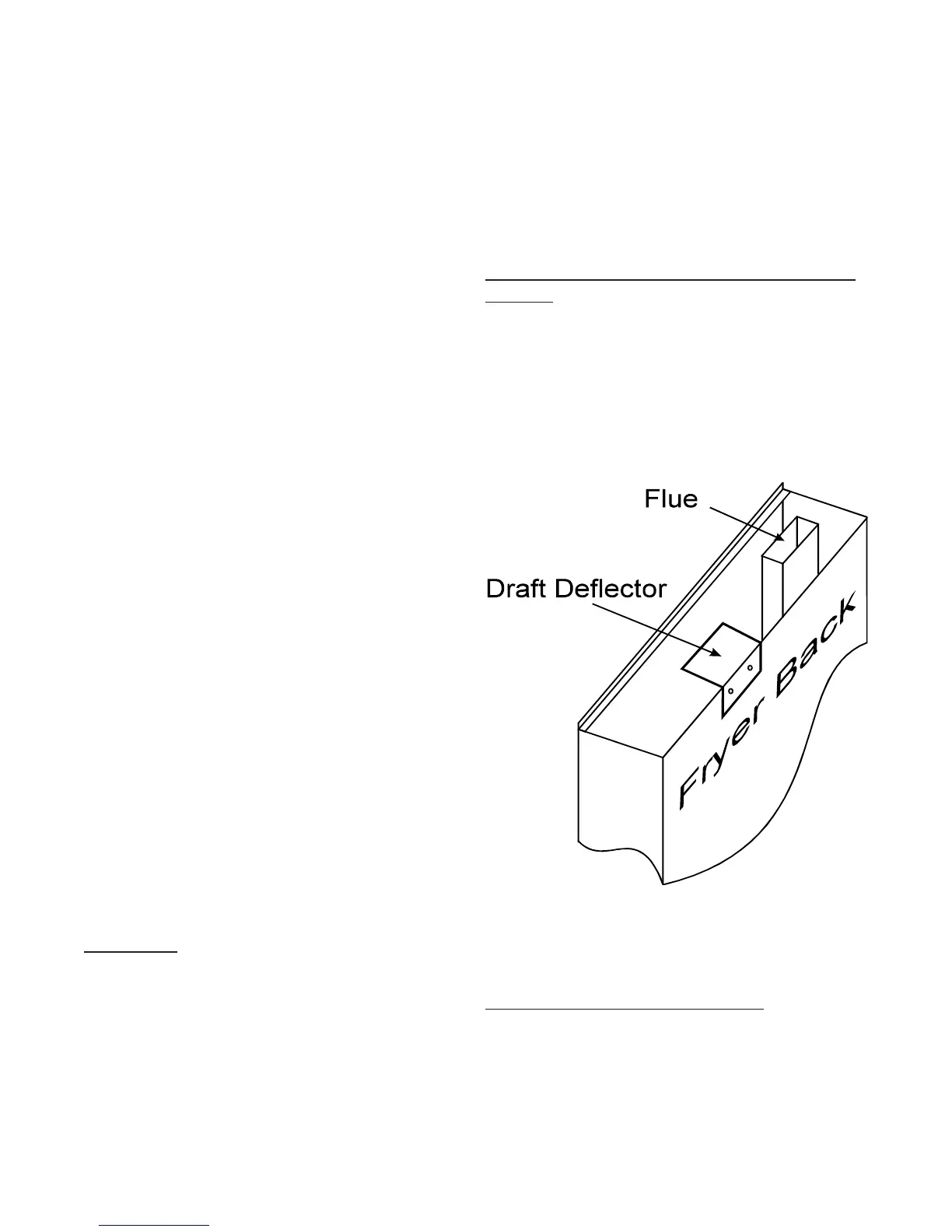

The baffle should be installed in the position shown
in the picture, using two self drilling screws.
Quick Disconnect Gas Connection:
Units equipped with casters must be installed with
connectors that comply with the standards for con-
nectors for Movable Gas Appliances, ANSI Z21.69-
1987, and Addenda Z21.69A-1989. (CAN/CGA -
6.16 and CAN/CGA - 6.9.) This connection should
1
