PITE 3915 Battery Tester User Manual
6
battery itself
♦ Direct USB drive for software update and data transfer to PC for further analyzing
♦ Powerful PC management software, convenient for data storage and analyzing
♦ Big memory for testing data storage of more than 3000 cells
♦ Buzzer Alarm Function and over voltage protection, secure to use
♦ Auto-calibration function before testing, enhancing the testing accuracy
♦ Retest and compensation function: any faulty operation or omission could be retested simply with
one click
♦ Referenced data inside memory for the comparison of your test, and self-defined reference values
are available
2.4 Technical Parameter
Resistance range 0.00mΩ ~ 100mΩ Voltage range 0.000V ~16V*
Min test resolution
-voltage
-resistance
1mv
0-999μΩ: 1 μΩ
1-9mΩ: 10μΩ(0.01mΩ)
10-99mΩ: 100 μΩ(0.1mΩ)
Test accuracy
-voltage
-resistance
±0.2%rdg ±6dgt
0μΩ-250μΩ: 8%±6DGT
250μΩ-500μΩ: 3%±6DGT
500μΩ-100mΩ: 1%±6DGT
Power supply
7.2V 2400mAh
Li-ion battery
Working time
More than 5 hours
after full
charge
Measuring data
memory
3000 cells
Operation
environment
0℃ to 40℃
90% R.H
LCD display
320*240 pixel TFT touch
screen
Dimension
(main unit)
L210*W110*H60 mm
Net weight
(package)
2 kg Com port Mini USB
* 16V-220V is for over voltage protection.
3. OPERATION
3.1 Measurement Preparation
3.1.1 Main Unit Structure and Operation

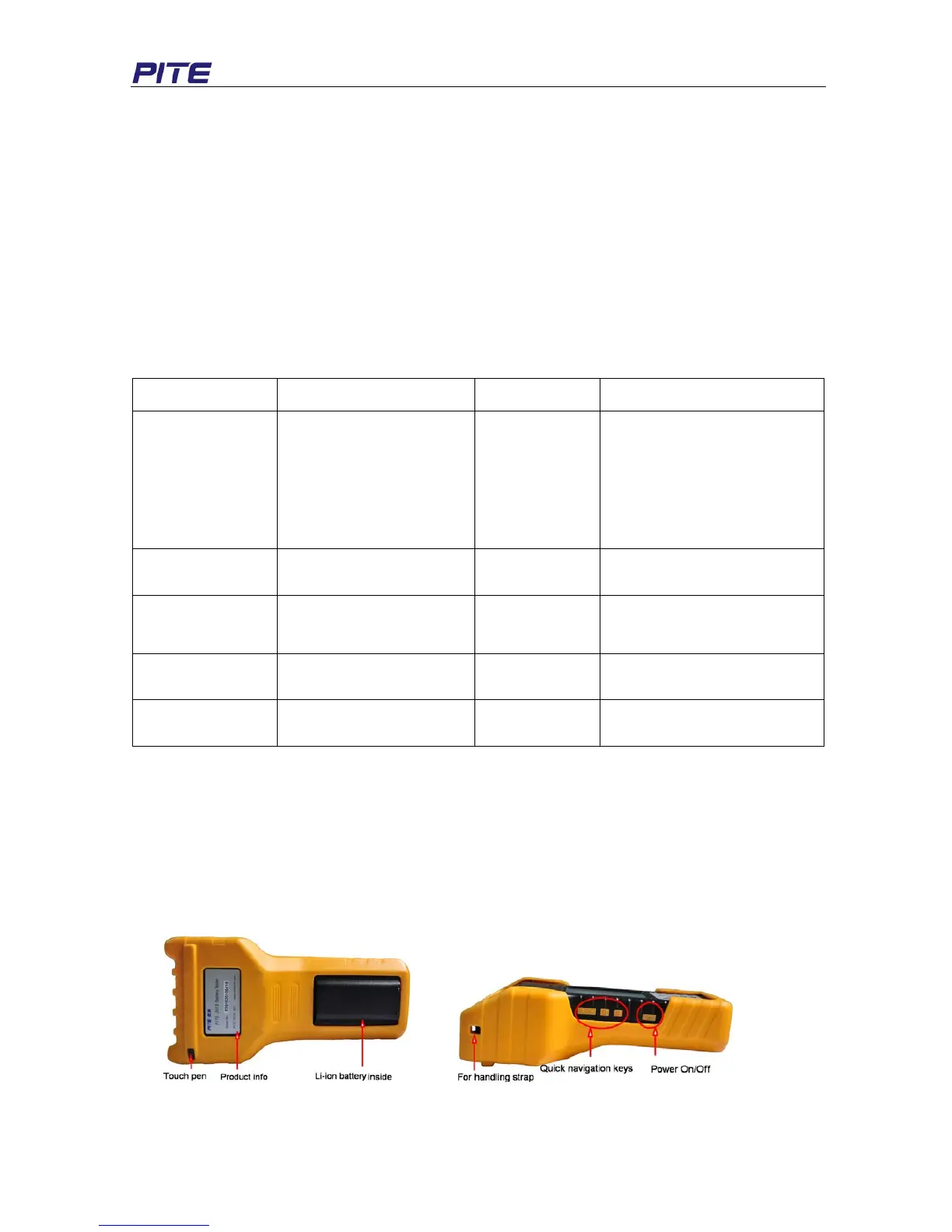

Below are the pictures for the main unit:
Back Side
