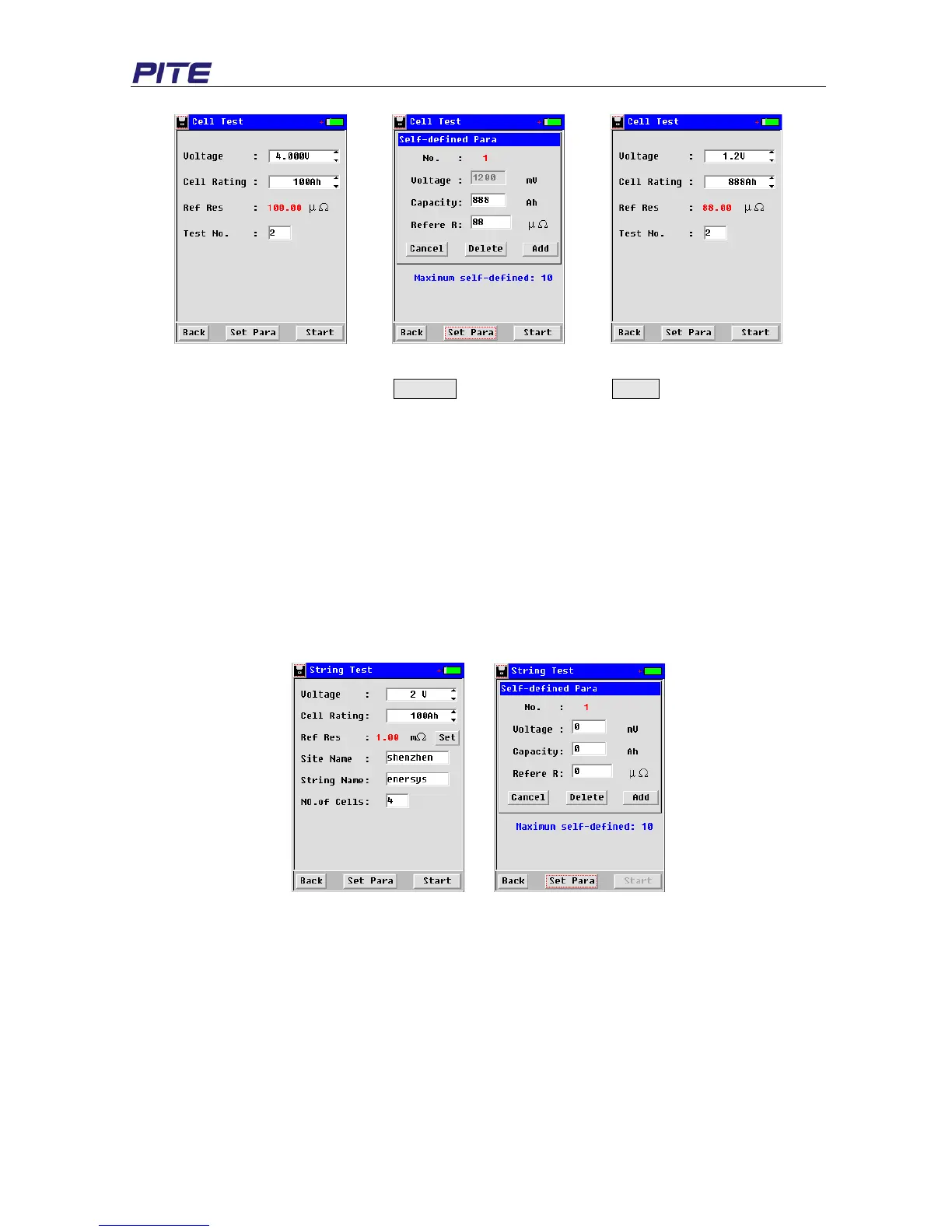

Fig 3.2.1.5 Fig 3.2.1.6 Fig 3.2.1.7
To delete defined values, please click Set Para in the menu and click Delete. This step will delete all
the customized value that you have set before.
3.2.2 Test for Battery String
This function is for testing batteries of the same type one by one in a string. Maximally it could record
up to 256 sites. Each site could record up to 256 strings. And one string could test up to 256 cells
based on its setting. When all the batteries are of the same type, you just need to set the parameter at
the beginning and the whole measurement process could be done in a very short time.
To get started, click “Test String” in main menu to go to the next step for parameter setting. Select
battery rating in the same way like single cell measurement. Setting of user-defined data is also in the
same way.
Fig. 3.2.2.1 Fig. 3.2.2.2
