INSTALLATIONH
H1 GENERAL
H2 STATION POSITIONING
H3 MECHANICAL INSTALLATION
CUBE MC can be installed outside. Nevertheless, it is advisable to locate it under the shelter
of a roof to ensure the dispenser's longevity and provide greater comfort during refuelling in
the event of bad weather. The installation of the dispenser must be carried out by skilled
personnel and performed according to the instructions provided in this chapter.
Whenever CUBE MC is not installed under cover, a "display cover" is provided to protected the
display and keyboard.
The CUBE MC stations can be connected both to tanks above ground and tanks under ground.
The positioning of the SELF SERVICE must be such that it is possible to:
- Easily remove the panels to access the inner components when necessary.
- Observe the distances and maximum differences in level between the station and the tank.
- Securely fasten the casing to the ground on a horizontal surface.
Station positioning determines the following parameters, which distinguish each installation:
Hp: Priming height
Ls: Total length of the suction pipe - from the foot valve to the station
(expressed in metres)
To ensure correct station operation, the following limitations must always be kept to:
Hp max: not over 3 metres
LS max: not over 15 metres
Before starting installation, make sure no packaging materials are trapped in the pipes.
Prepare suitable stilts or fixing brackets depending on the fixing position of the CUBE MC.
The tube coming from the tank must be aligned to the threaded inlet of the pump filter which
is located under the CUBE MC.

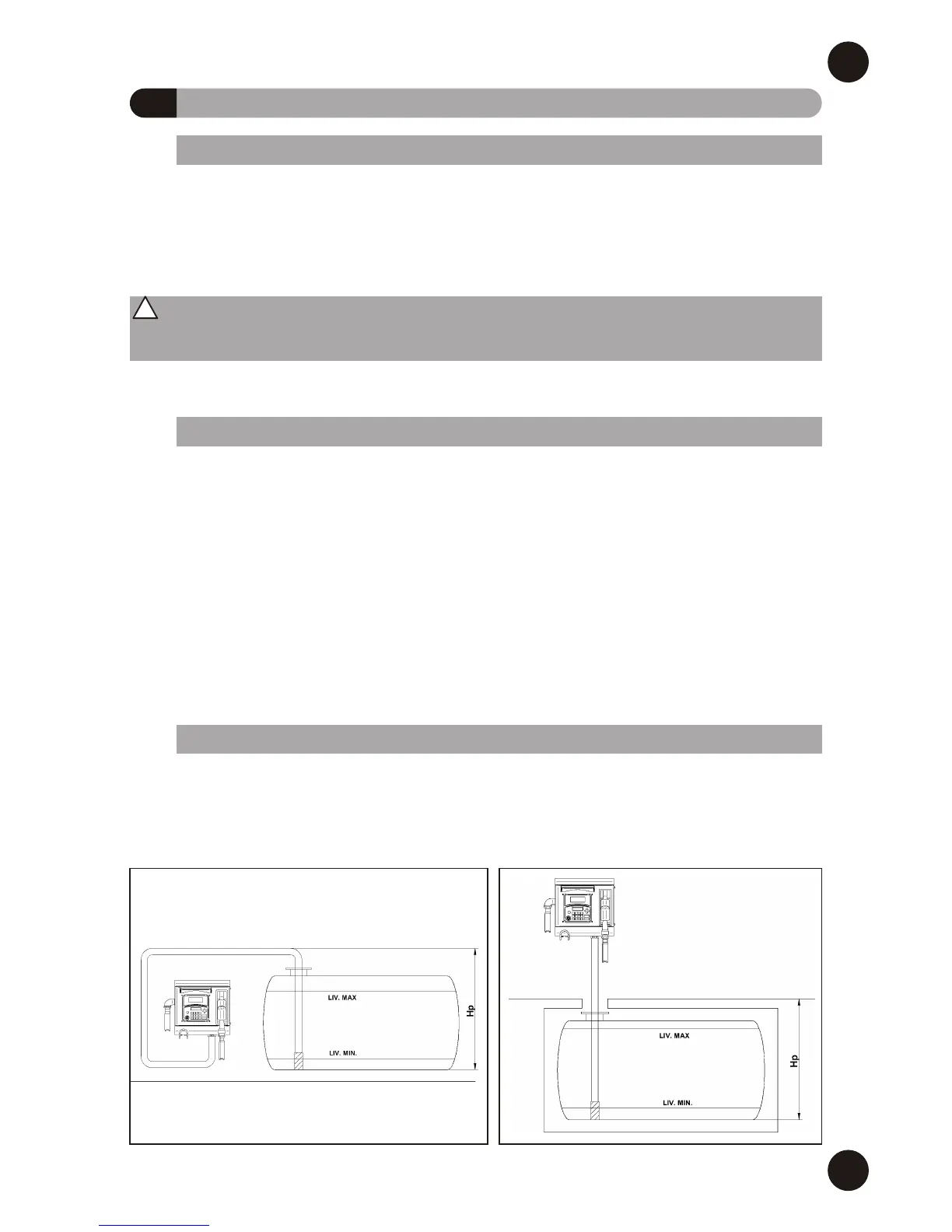

TANK ABOVE
GROUND
TANK UNDER
GROUND
EN
11
(Translated from Italian)
The motors are not of an anti-explosive type.
DO NOT install CUBE MC in places where there is risk of explosion.
! ATTENTION
