M3 DISPENSER PIPE AND NOZZLE
M4 "MC" CONTROL SYSTEM
M5 FILTERS

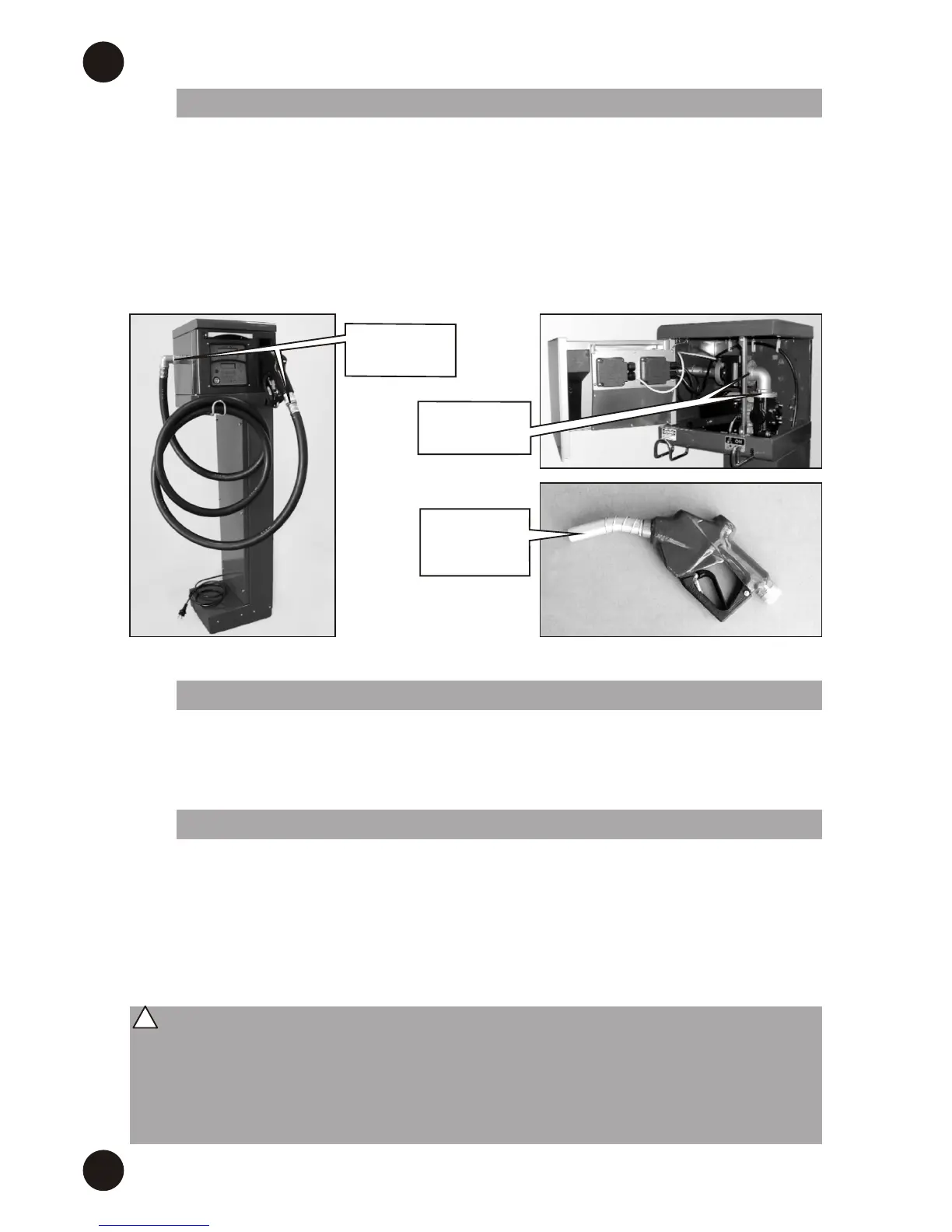

Keep the dispenser pipe and nozzle clean and make sure especially that:
- The pipe is in perfect condition and has not been damaged by vehicle transit.
- The threaded connections are tight and not leaking.
- The swivel connections (at dispenser exit and on the nozzle) are turning freely and do not
show leaks.
- Keep the dispensing tube and nozzle clean and check that the automatic stop feeler hole
at the end of the spout is always clean.
The MC system is maintenance free. To control it however, refer to the dedicated M0103
manual provided.
CUBE MC features a number of filters having different functions. The inspection and cleaning
(or replacement) of each filter is crucial to ensure:
- The protection of the various station components (pulser, pump, nozzle).
- Station performance remains high over the years (maximum flow rate).
- Protection of the engines using the dispensed diesel fuel.
PROBE HOLE
AUTOMATIC
STOP
(SPOUT)
SWIVEL
CONNECTIONS
FLANGED
CONNECTIONS
EN
20
(Translated from Italian)
Dirty or partially blocked filters can increase flow resistance and cause a considerable
reduction in the maximum flow rate of the pump.
Dirty or blocked pump suction filters also cause a big increase in vacuum during
suction and this in turn can make the pump particularly noisy.
! ATTENTION
