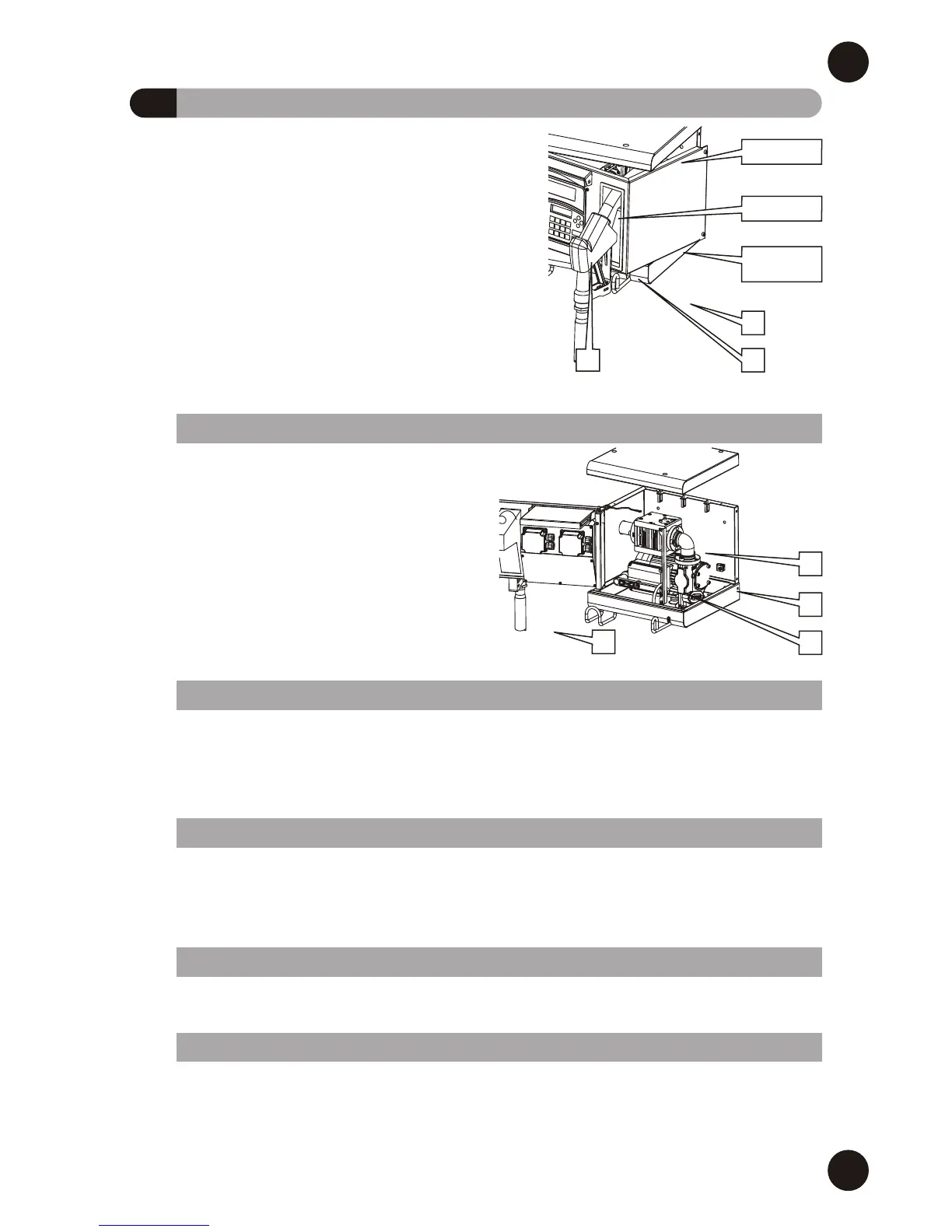

DESCRIPTION OF MAIN PARTSF
INSPECTION
PANEL
5
4
6
FRONT
ROOF
CUBE MC dispensers are designed for the transfer of diesel fuel
for private use. Characterized by maximum safety and simplicity
of use, CUBE dispensers are dependable, high-performance
equipment that is quickly installed and ready for use.
Equipment and features are:
1 Blade type rotating self-priming pump with incorporated
bypass valve.
2 Motor with degree of protection IP55 and heat protection,
230 V AC single phase.
3 Four meters of anti-static rubber tube for fuel.
4 Automatic type dispenser nozzle with ON/OFF switch
integrated in the nozzle support.
5 Steel body with anti-corrosion treatment and paint finish.
Control system.
7 Meter
F2 PUMP UNIT
F3 PULSER METER
F4 CONTROL SYSTEM
F5 NOZZLE
F6 DISPLAY UNIT COVER
2
3
1
7
Unit with blade type self-priming electric pump,
featuring bypass valve. Such a valve allows
functioning for brief periods of time even with the
dispensing nozzle closed.
The motor, which is directly coupled to the pump
body, is asynchronous, of the closed type
(degree of protection IP 55 according to EN
60034-5-86 standard) self-ventilated, single
phase. For further details, refer to the relevant
manuals indicated in the summary table of
paragraph E1.
The K600/3 Pulser meter features a measurement system with high-precision oval gears
designed for accurate fuel metering. These have a sturdy die-cast aluminium structure and are
complete with inlet suction filter. They are easy to service and reliable. For further details, see
the manual indicated on the summary table of paragraph E1.
The electronic control system -MC- ensures the dispenser can only be used by authorised
personnel. All the data relating to each dispensing operation are stored and can be transferred
to a PC (optional).
For further details, see the manual indicated on the summary table of paragraph E1.
The nozzle supplied with CUBE MC is of automatic type; it is fitted with a shut-off device for full tank.
To ensure adequate protection and the correct visibility of the CUBE MC display units,
including in very strong light conditions, a pull-out display unit cover has been integrated in
the structure. This can be lowered in case of need. In very strong light conditions, we
advise always keeping the display cover lowered when not in use.
EN
9
