Piusi cube mc - E1 List of Supplied Manuals; E2 Identification Plate; Technical Specifications

E1 LIST OF SUPPLIED MANUALS
E2 IDENTIFICATION PLATE
Below is a list of all the manuals, besides this one, to be provided together with the CUBE MC:
- M0042 Panther 72 pump manual
- M0147 K600/3 die-cast meter manual
- M0103 CUBE MC control system manual
- M0105 Cube MC software manual

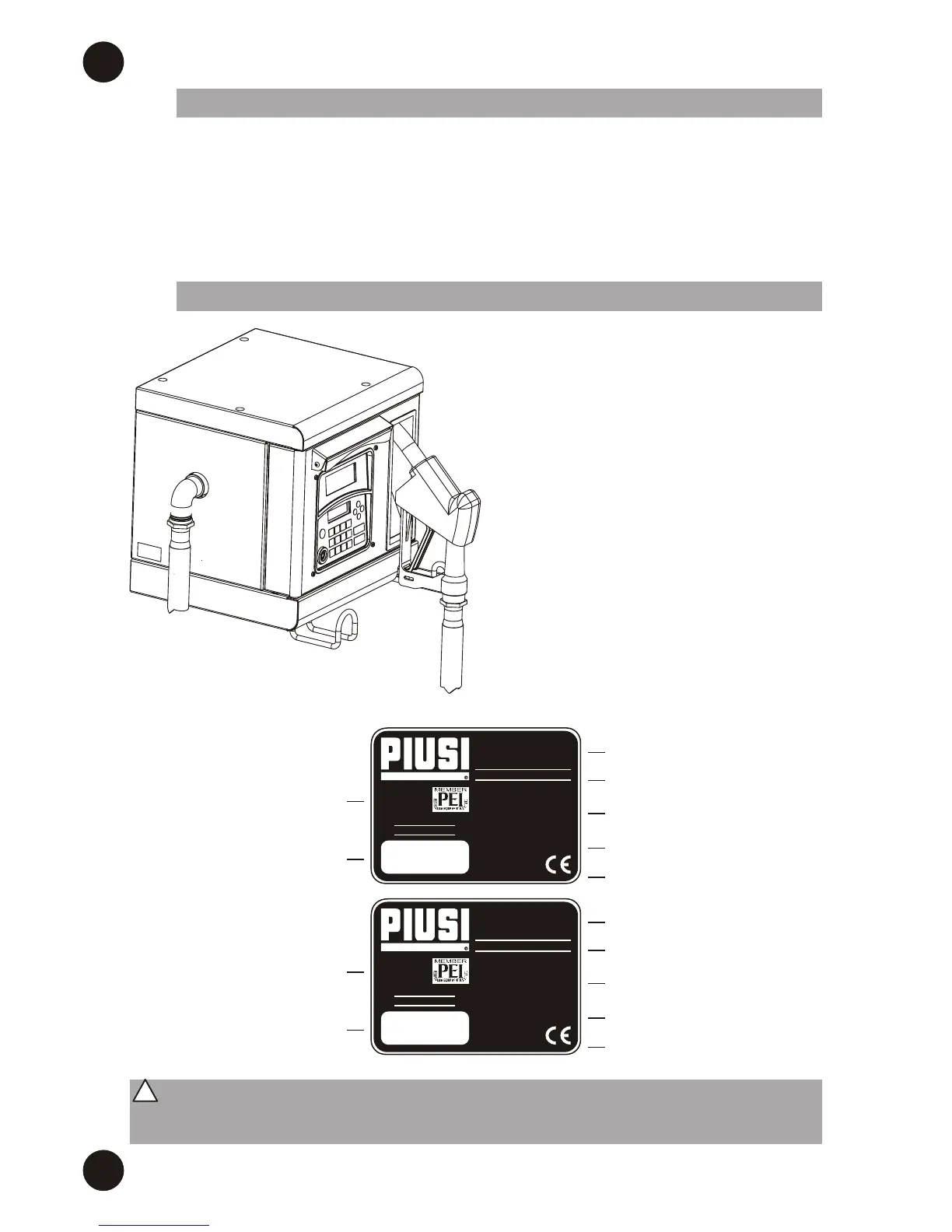

The cube MC stations feature an
identification plate showing:
- Model
- Serial number / Year of manufacture
- Technical specifications
- CE mark
MANUFACTURER
PRODUCT NAME
PRODUCT CODE
TECHNICAL SPECIFICATIONS
PRODUCTION YEAR
"CE" MARK
SERIAL NUMBER
SERIAL NUMBER
MANUFACTURER
VERSION 230/50
VERSION 110/60
CUBE MC
230 V
50 Hz
4.2 A
900 W
2800 rpm
IP55
YEAR 2008
Read instruction
M0103 - M0104
CODE f0059400
LOT NUMBER
0000001
CERTIFIED COMPANY
UNI-EN ISO 9001
PIUSI S.P.A.
SUZZARA
(MN) ITALY
Qmax 72 l/min
Pmax 3 bar
< 75 db
S1
COSØ 0,92
Cond. 12,5 mF
CUBE MC
110 V
60 Hz
5,5 A
550 W
2785 rpm
IP55
YEAR 2008
Read instruction
M0103 - M0104
CODE f0059400
LOT NUMBER
0000001
CERTIFIED COMPANY
UNI-EN ISO 9001
PIUSI S.P.A.
SUZZARA
(MN) ITALY
Qmax 69 l/min
Pmax 3 bar
< 75 db
S1
COSØ 0,92
Cond. 40 mF
PRODUCT NAME
PRODUCT CODE
TECHNICAL SPECIFICATIONS
PRODUCTION YEAR
"CE" MARK
EN
8
(Translated from Italian)
Before installing, always make sure the dispenser model is correct and suitable for the
available power supply (voltage/frequency).
! ATTENTION
