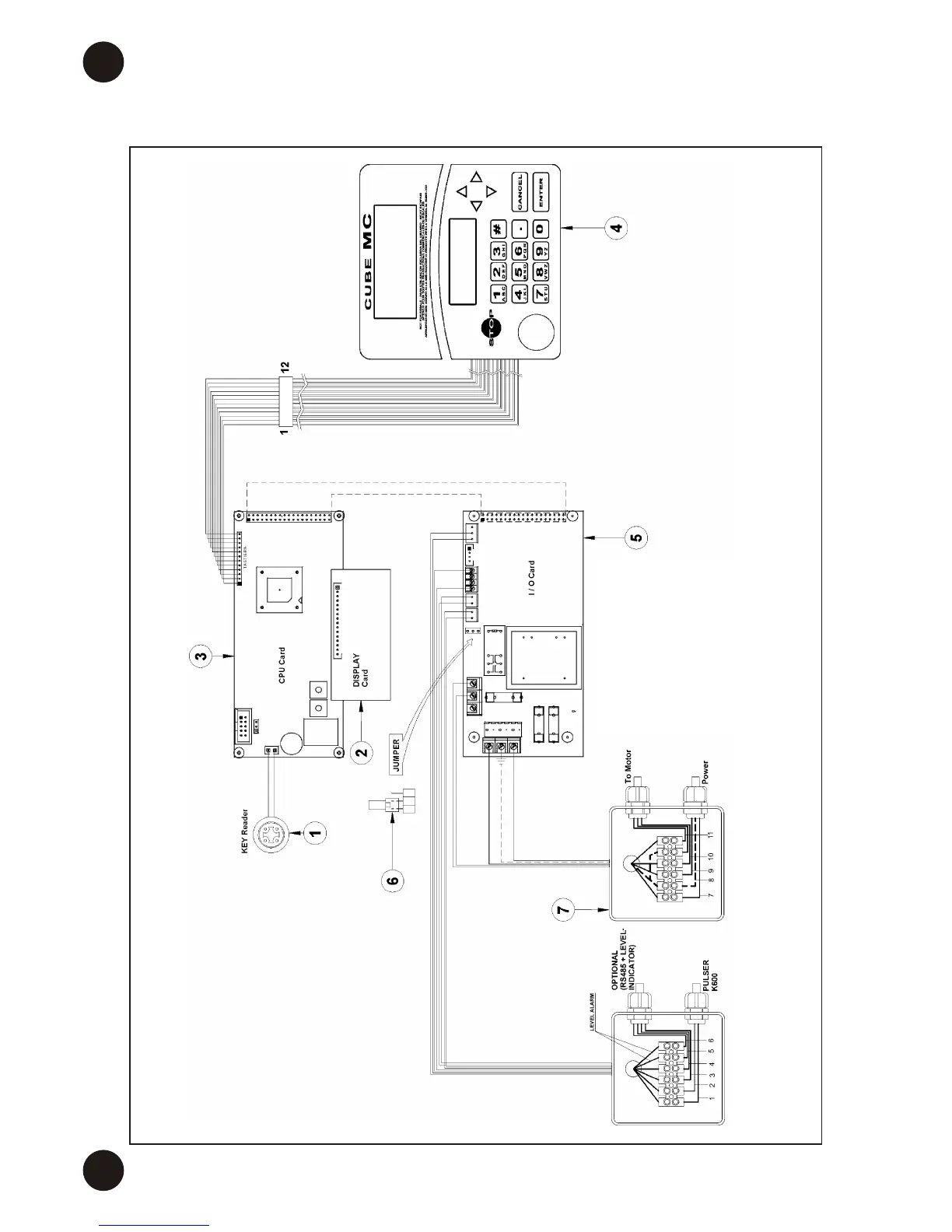

Below are the main connections and the fuses to be replaced by skilled service technicians
only.
KEY:
1 Key reader (I-Button)
2 Display card
3 CPU card
4 Keyboard
5 I / O card
6 Jumper
7 Electrical boxes
