User manual - ATR171 15
6.3 Keys
12

• Increases main setpoint.
• In configuration mode allows to scroll and modify parameters.
• Press after SET key increases alarm setpoints or time value of
timer.
13

• Decreases main setpoint.
• In configuration mode allows to scroll and modify parameters.
• Press after SET key decreases alarm setpoints or time value of
timer.
14
SET
• Allows to visualize alarm setpoints or time value of Timer.
• In configuration mode allows to access the parameter to change
and confirm its modification.
15
FNC
• Allows to enter tuning launch, selection automatic / manual.
• In configuration mode operates as exit key (ESCAPE).
• If
U.M.C.P.
other then
Di s .
, it is possible to modify parameters of
pre-programmed cycle.
16
PRGM
• If pressed allows to enter configuration password.
• In configuration mode assigns at selected parameter a mnemonic
code or a number.
• Starts or stops timer counting.
• It allows to reset alarms if programmed for manual reset.
7 Dual input mode (only for ATR171-23ABC-T)

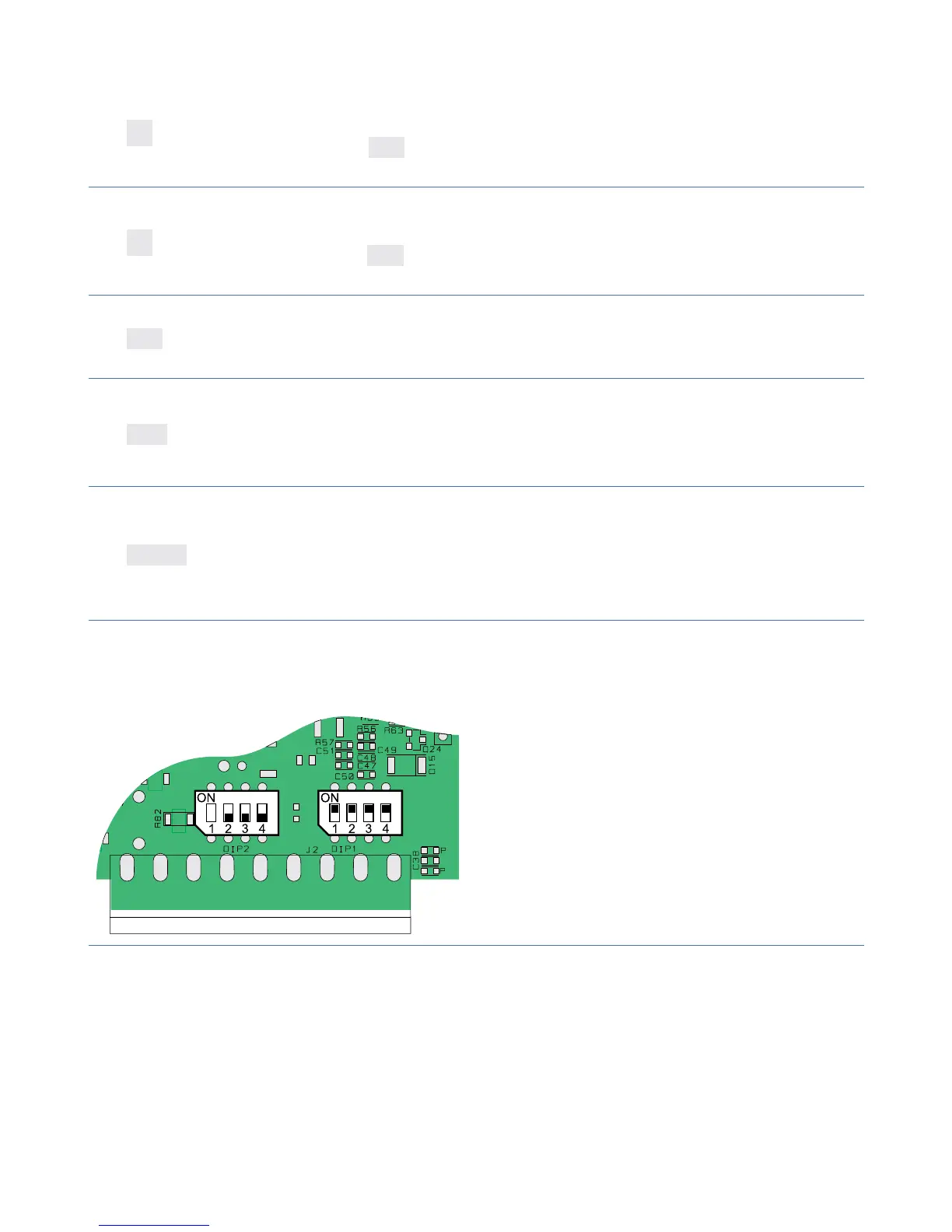

To enable second input it is necessary to set dip switches as indicated in the figure.
In this configuration some parameters
and functions are not available. For
exemple: RS485 serial, preprogrammed
cycle and soft-start function are desabled.
