User manual - TCT101-1ABC - 21

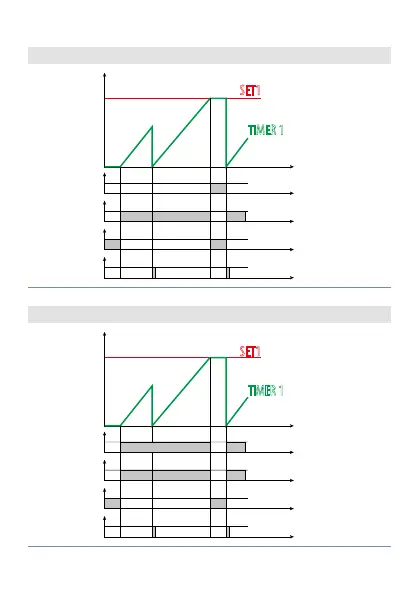

10 Timer operation graphs
10.a
t.o n
Timer ON
Set
SET1
Time
TIMER 1
1
0
Out Timer 1
Start
Stop
Reset
1
0
1
0
1
0
10.b
t. o FF
Timer OFF
Time
SET1
TIMER 1
1
0
Out Timer 1
Start
Stop
Reset
1
0
1
0
1
0
Set
