User manual - TCT101-1ABC - 7
Sensor supply
output
OUT 24V
Sensor power supply.
Max. current:
30mA @ 24Vac
40mA @ 24Vdc
60mA @110..230 VAC
Backup
Rechargeable
capacitor
Autonomy approx.
7 days.
3.3 Software Features
Programming
tool
Labsoftview 2.6 and later

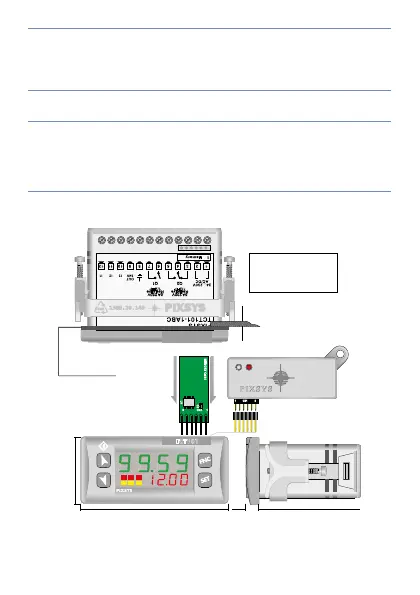

4 Dimensions and Installation
U1
C1
CN1
16
MEMORY C.121
TCT101
1 2 3
Frontal panel cut-out
Dima di foratura
28.5 x 70.5 mm
Suggested thickness
2÷8 mm
Spessore suggerito
77 mm
35 mm
53 mm7
42mm insert
42mm inserimento
Memory Card
CN1
1 6
PIXSYS
Memory Card (optional)
with battery
Cod. MEMORY 2100.30.003
Memory Card (optional)
Cod. MEMORY 2100.30.005
Gasket for 32x74
Guarnizione per 32x74
Cod. 1600.00.082 (optional)
5A 230V
Resistive
1/2HP
Q1
5A 230V
Resistive
1/2HP
Q2
