5 Electrical wirings
This device has been designed and manufactured in
conformity to Low Voltage Directive 2006/95/EC , 2014/35/
EU (LVD) and EMC Directive 2004/108/EC, 2014/30/EU (EMC).
For installation in industrial environments please observe
following safety guidelines:
• Separate control line from power wires.
• Avoid proximity of remote control switches, electroma-
gnetic contactors, powerful engines.
• Avoid proximity of power groups, especially those with
phase control.
• It is strongly recommended to install adequate mains filter
on power supply of the machine where the controller is
installed, particularly if supplied 230Vac.
The controller is designed and conceived to be incorporated
into other machines, therefore CE marking on the controller
does not exempt the manufacturer of machines from safety
and conformity requirements applying to the machine itself.

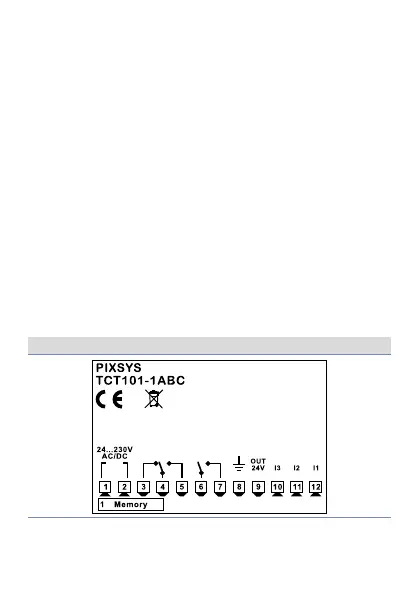

5.1 Wiring diagram
TCT101-1ABC
5A 230V
Resistive
1/2HP
Q1
5A 230V
Resistive
1/2HP
Q2
To Next Page
