User manual - TCT101-1ABC - 9

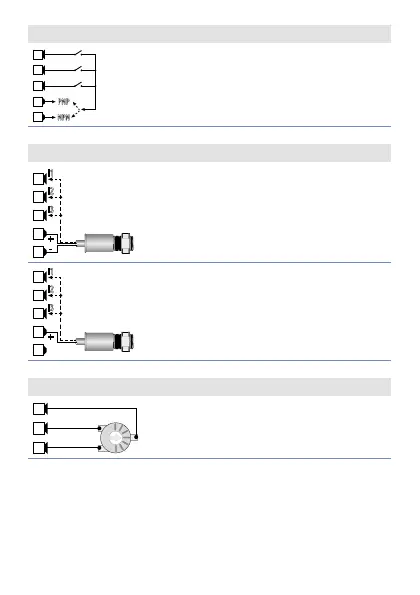

5.1. a Connection of digital inputs
NPN
PNP
12
11
10
9
8
Example of connection of digital inputs
in PNP and NPN mode.
5.1. b Connection of proximity sensors
-
+
I3
I2
I1
12
11
10
9
8
3 wires PNP
Proximity Sensor
OUT
Sensore di
Prossimità PNP
a 3 Fili
Example of connection of a 3-wires
proximity sensor.
+
I3
I2
I1
12
11
10
9
8
2 wires PNP
Proximity Sensor
OUT
Sensore di
Prossimità PNP
a 2 Fili
Example of connection of a 2-wires
proximity sensor.
5.1.c Potentiometer connection
10
9
8
Potentiometer 5..10 Kohm
Accuracy 1000 points
