28 - TCT101-1ABC - Manuale d'uso
Uscita
alimentazione
sensori
OUT 24V
Alimentazione
sensori.
Massima corrente
erogabile:
30ma @ 24Vac
40mA @ 24Vdc
60 mA @110.. 230Vac
Backup
Condensatore
ricaricabile
Autonomia circa 7
giorni.
3.3 Caratteristiche software
Software di
programma-
zione
Labsoftview 2.6 e successive

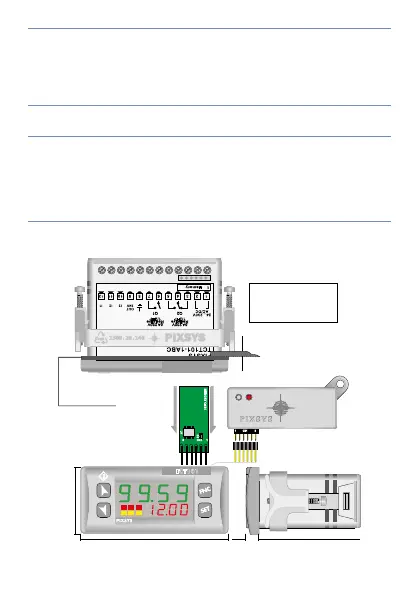

4 Dimensioni e installazione
U1
C1
CN1
16
MEMORY C.121
TCT101
1 2 3
Frontal panel cut-out
Dima di foratura
28.5 x 70.5 mm
Suggested thickness
2÷8 mm
Spessore suggerito
77 mm
35 mm
53 mm7
42mm insert
42mm inserimento
Memory Card
CN1
1 6
PIXSYS
Memory Card (optional)
with battery
Cod. MEMORY 2100.30.003
Memory Card (optional)
Cod. MEMORY 2100.30.005
Gasket for 32x74
Guarnizione per 32x74
Cod. 1600.00.082 (optional)
5A 230V
Resistive
1/2HP
Q1
5A 230V
Resistive
1/2HP
Q2
