Sending Serial Commands Via TCP or UDP
Planar RPS and Video Controller RS232 User Guide Page | 50
020-1332-00I

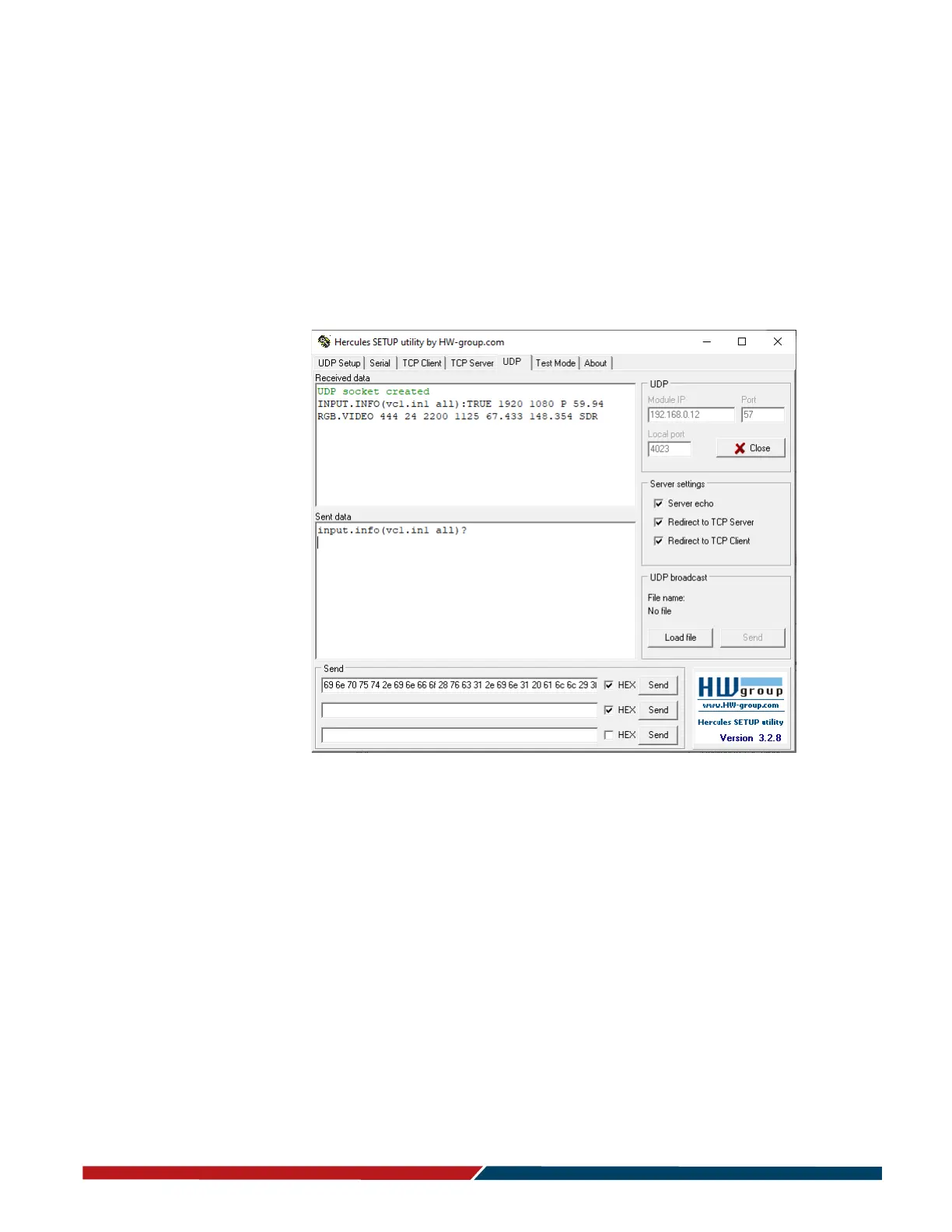

Notice the following in the UDP example below using Hercules:
• The default IP address is 192.168.0.12; however, if connected to a WAN, the IP
address assigned by the network can be used.
• Port 57 is selected
• “69 6e 70 75 74 2e 69 6e 66 6f 28 76 63 31 2e 69 6e 31 20 61 6c 6c 29 3f 0d 0a” in
the Send box is hex for “input.info(vc1.in1 all)?”
Note: Most UDP terminal programs won’t automatically send the [CR] at the end of the
command, so the hex command (0d 0a) is used to do this manually.
