PLANET ECLIPSE GTEK170R - Page 35

FIG-1
35
GTEK170R
TECHNICAL

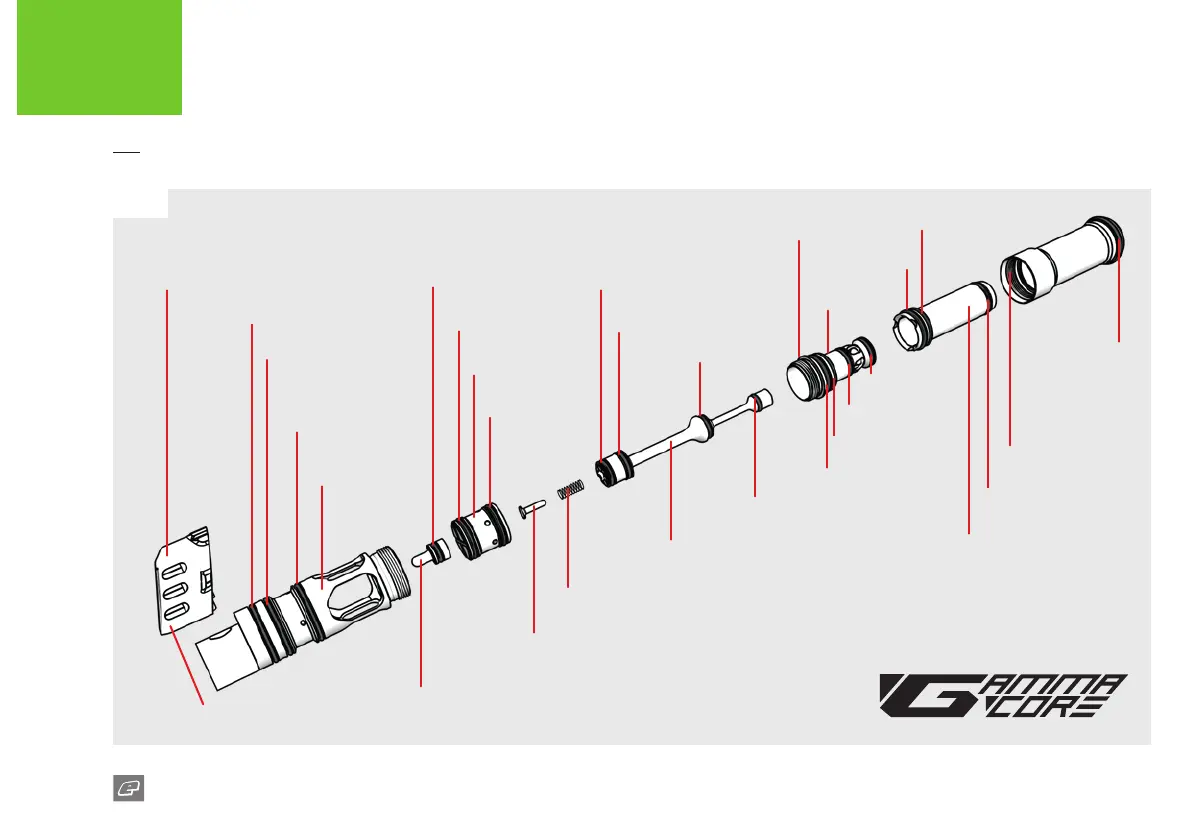

170R BOLT ASSEMBLY
Quick-release bonnet
#010 NBR70
#012 NBR70
Bolt guide
#014 NBR70
#015 NBR90
14 x 2 NBR70
#016 NBR70
#012 NBR70
#011 NBR70
Switch
#016 NBR70
#020 NBR70
#020 NBR70
#020 NBR70
Valve chamber
Bolt pin
Plunger
Bolt
#013 NBR70
Can
#020 NBR70
Internal:
#017 NBR70
Spring guide
Spool spring
Spool
#008 NBR70
14 x 2 NBR70
#013 NBR70
#013 NBR70
#013 NBR70
