PLANET ECLIPSE GTEK170R - SL6 Inline Regulator

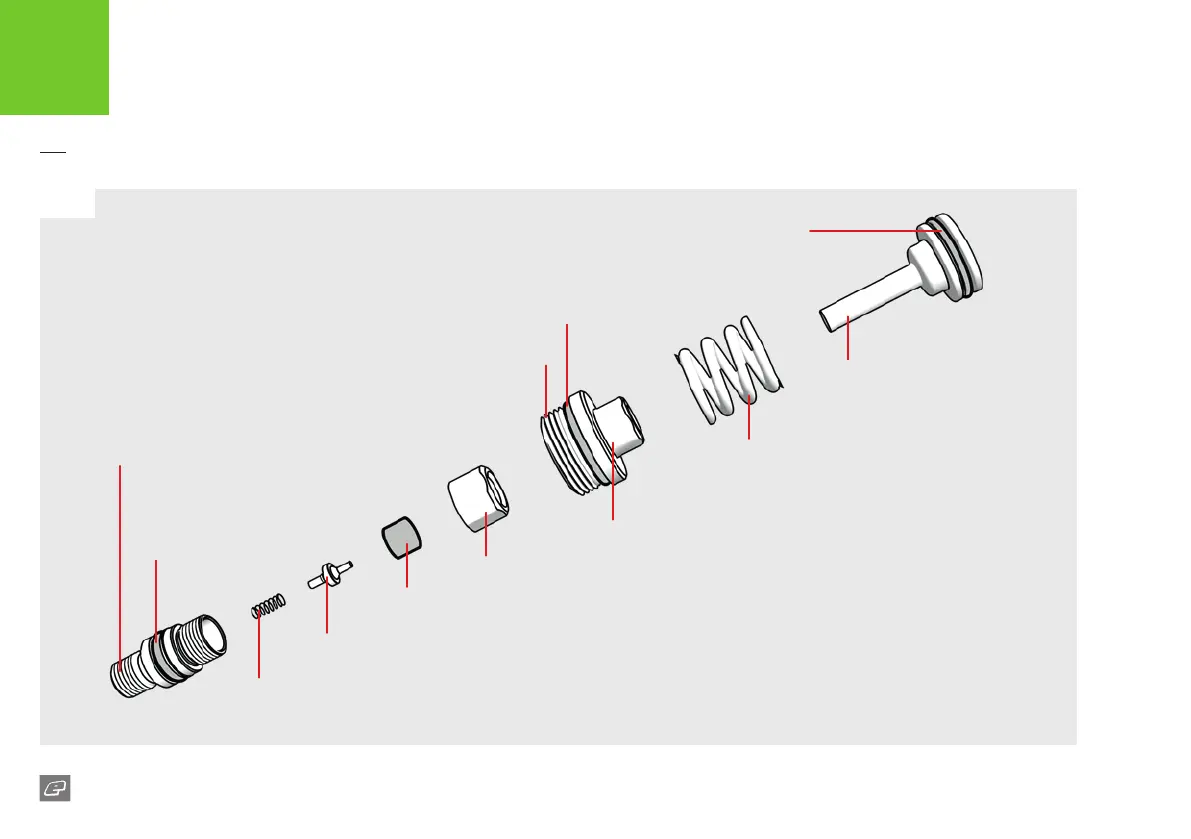

FIG-1
34
GTEK170R
TECHNICAL
SL6 INLINE REGULATOR
1
Adjuster bottom
Purge poppet spring
Purge poppet
3
Regulator seal
Adjuster top
Internal o-ring
#008 NBR70
Regulator spring
2
Regulator piston
Piston o-ring
#014 NBR70
1 Reset the SL6 regulator to factory after re-assembly.
2 Only use the 170R SL6 spring with the SL6 inline regulator.
3 Failure to re-install the purge poppet assembly correctly could
seriously damage the 170R.
Adjuster o-ring
#011 NBR70
O-ring
#015 NBR70
Reg body
