PLANET ECLIPSE GTEK170R - Breech Sensor (BS) Assembly

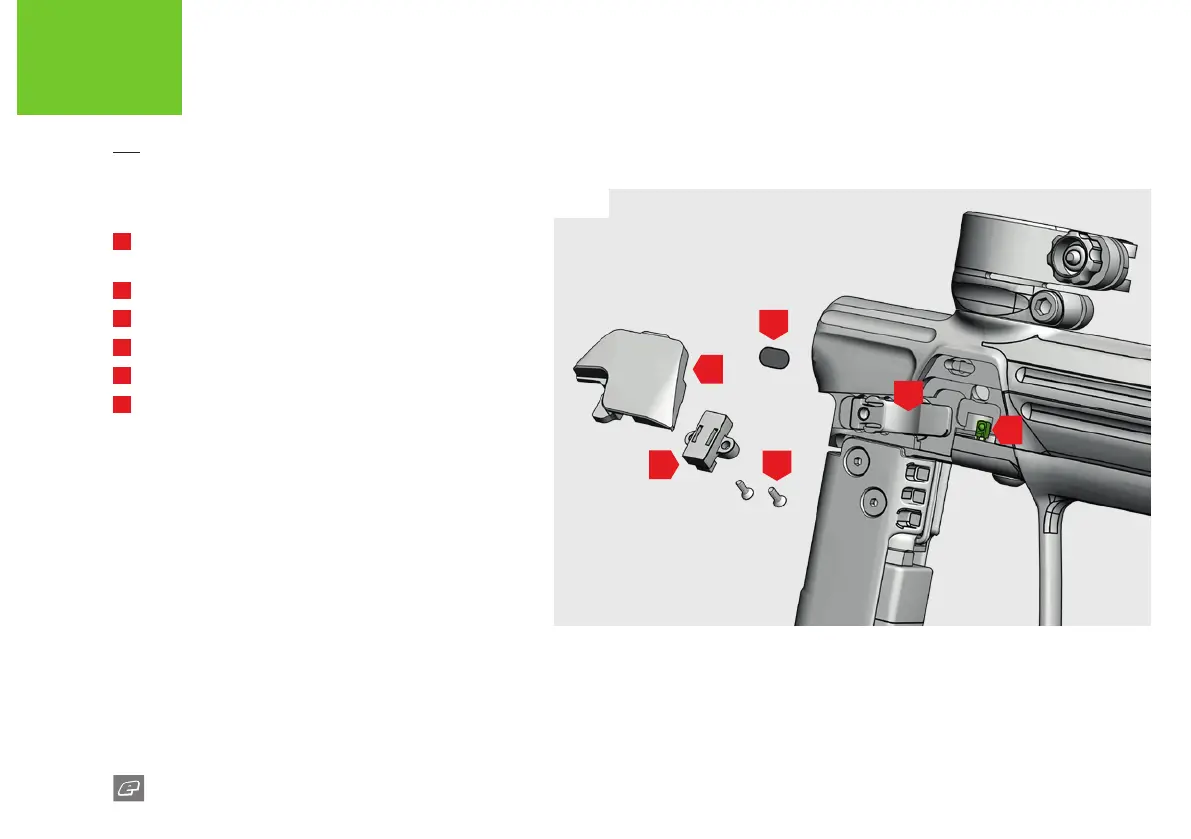

FIG-1
41
GTEK170R
TECHNICAL
BREECH SENSOR (BS) ASSEMBLY
A
E
F
FIG-1
A
Light Pipe retaining screws
M1.6x5 countersunk socket screws
B
Breech sensor cover
C
Breech sensor
D
Light pipe
E
Rubber detent
F
Breech sensor cover latch
The elements within this diagram apply to
both sides of the marker.
C
B
D
