PLANET ECLIPSE GTEK170R - Trigger Assembly

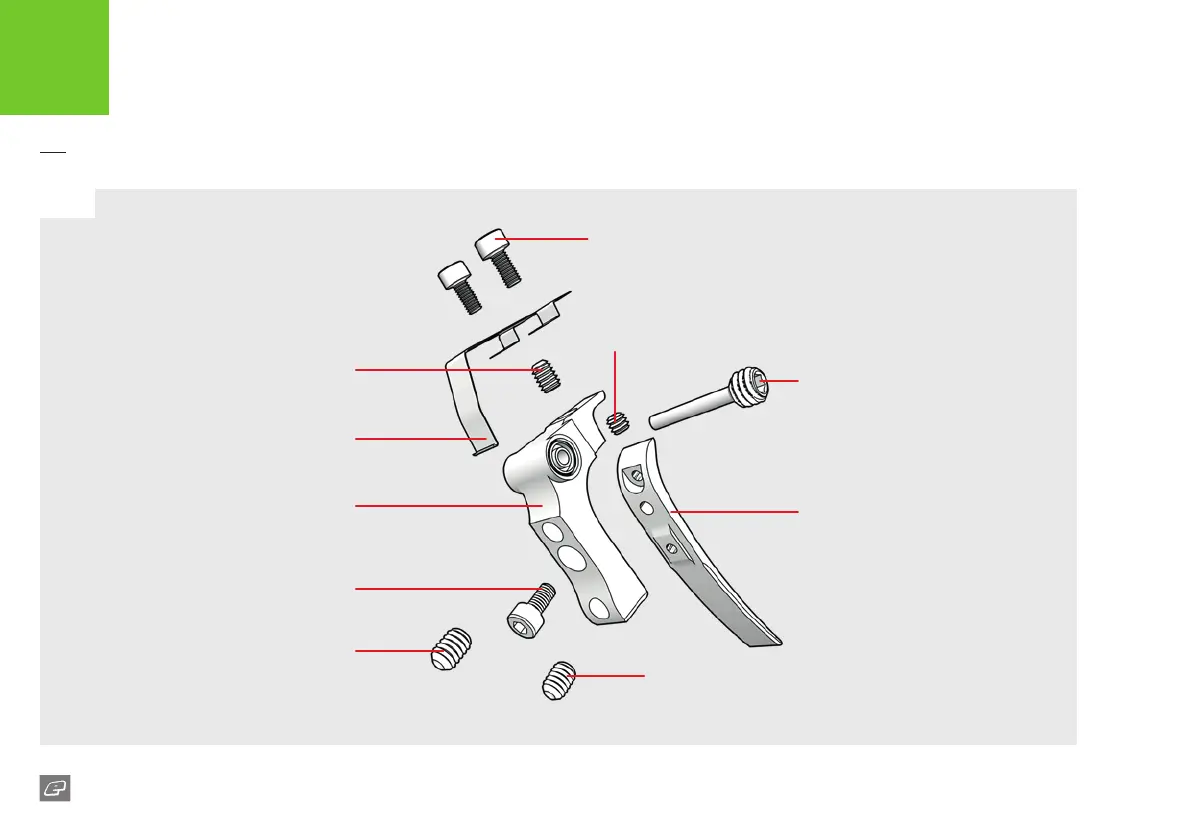

FIG-1
38
GTEK170R
TECHNICAL
TRIGGER ASSEMBLY
Post-travel screw (in frame)
6-32 UNC x 1/8
socket set screw
Trigger shoe
Microswitch adjustment screw
6-32 UNC x 3/16
socket set screw
Leaf spring
Trigger body
Spring adjustment screw
6-32 UNC x 3/16
socket set screw
Pre-travel screw
6-32 UNC x 3/16
socket set screw
Bearing carrier screws
M2.5x5 cap head socket screw
Threaded trigger pin
M2.5x5 cap head socket screw
