User’s Manual of GSD-800S / GSD-802S / GSD-802PS
4. CONFIGURATION
The Gigabit Ethernet Switch provide Web interface for Switch smart function configuration and make the Switch operate
more effectively - They can be configured through the Web Browser. A network administrator can manage and monitor the
Gigabit Ethernet Switch from the local LAN. This section indicates how to configure the Gigabit Ethernet Switch to enable
its smart function.
#Notice:
The following section will base on the web screens of GSD-800S, for GSD-802S/802PS the display will be the same to
GSD-800S.
4.1 Main Menu
After a successful login, the main screen appears, the main screen displays the Switch status. The screen in Figure 4-1
appears.

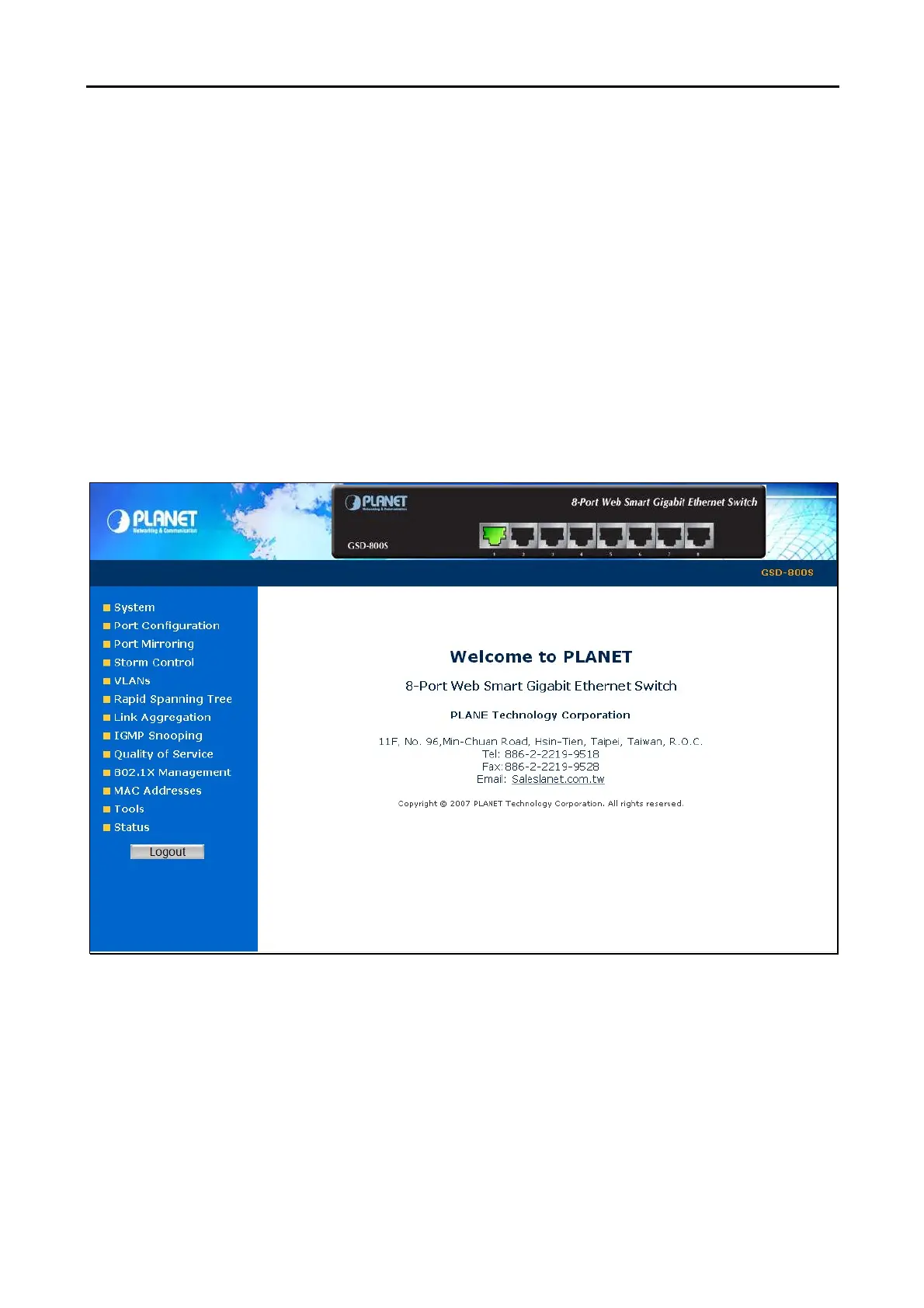

Figure 4-1 Web Main screen
As listed at the left of the main screen, the configurable smart functions are shown as below:
◆ System – Check the hardware, software version and System MAC address. Setting the IP address and SNMP
management for the Gigabit Ethernet Switch.
◆ Port Configuration - Setup per port Speed/Duplex mode, Flow Control and jumbo frame.
◆ Port Mirroring - dedicated port monitoring for incoming packets.
◆ VLANs – Configure VLAN Member / Port Configuration.
◆ Rapid Spanning Tree – Configure Rapid spanning tree topography for any arrangement of bridges.
◆ Link Aggregation – Port Trunk / LACP.
