User’s Manual of GSD-800S / GSD-802S / GSD-802PS
• Transmit Octets
Number of octets of data (including those in bad packets) transmitted on the port.
This object can be used as a reasonable estimate of Ethernet utilization.
• Broad- and
Multicast
Number of packets transmitted on the port. Include the broadcast and multicast
packets.
• Error Packets
The numbers of error packets transmit from the port.
4.13.2 LACP Status
The LACP Status page display the current LACP aggregation Groups and LACP Port status.
Please refer to Chapter 4.7.3 at page-49 for more detail.
4.13.3 RSTP Status
The RSTP Status page display the current STP bridge , roor bridge and per port stp status.
Please refer to Chapter 4.6.3
at page-44 for more detail.
4.13.4 IGMP Snooping Status
The IGMP Snooping page display the current IGMP Status and the statistics of received Query / report packets.
Please refer to Chapter 4.8.2
at page-53 for more detail.
4.13.5 Multicast Group Status
The Multicast Group page displays the ports attached to the Multicast service group in the Ports tables. The Port a tables
also reflect the manner in which the port joined the Multicast group. Ports can be added either to existing groups or to new
Multicast service groups. The Bridge Multicast Group page permits new Multicast service groups to be created. The
Bridge Multicast Group page also assigns ports to a specific Multicast service address group.
Please refer to Chapter 4.8.3
at page-54 for more detail
Logout

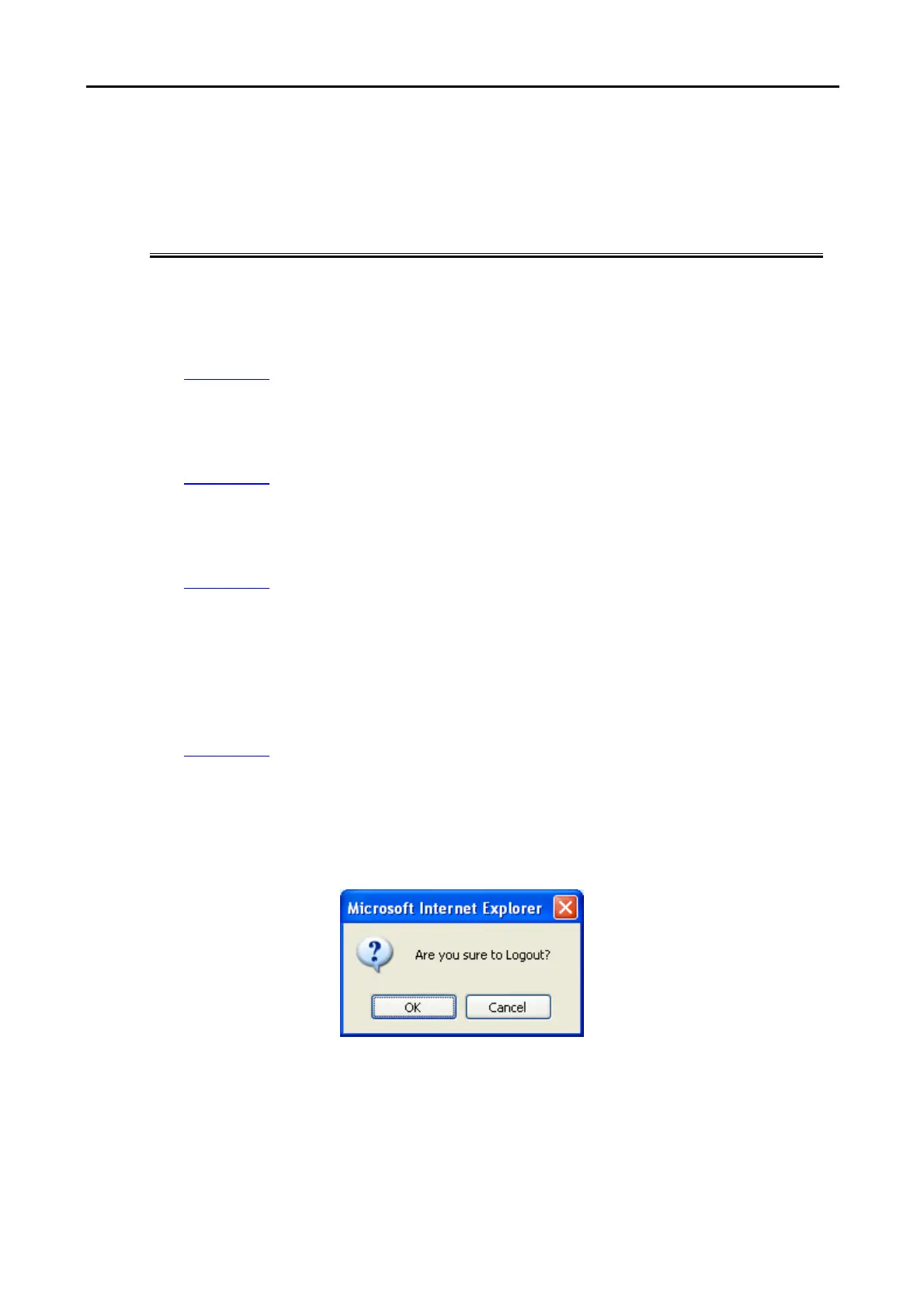

Press this function; the web interface will go back to login screen. The screen in Figure 4-67 and Figure 4-68 appears.
Figure 4-67 Logout screen
