User’s Manual of GSD-800S / GSD-802S / GSD-802PS
4.3 Port Configuration
This function allows displaying each port’s status. The Link Status in the screen displays the current connection speed and
duplex mode; else this function will show down when the port is disconnected. Press the “Refresh” button to renew the
screen. The screen in Figure 4-4 appears.

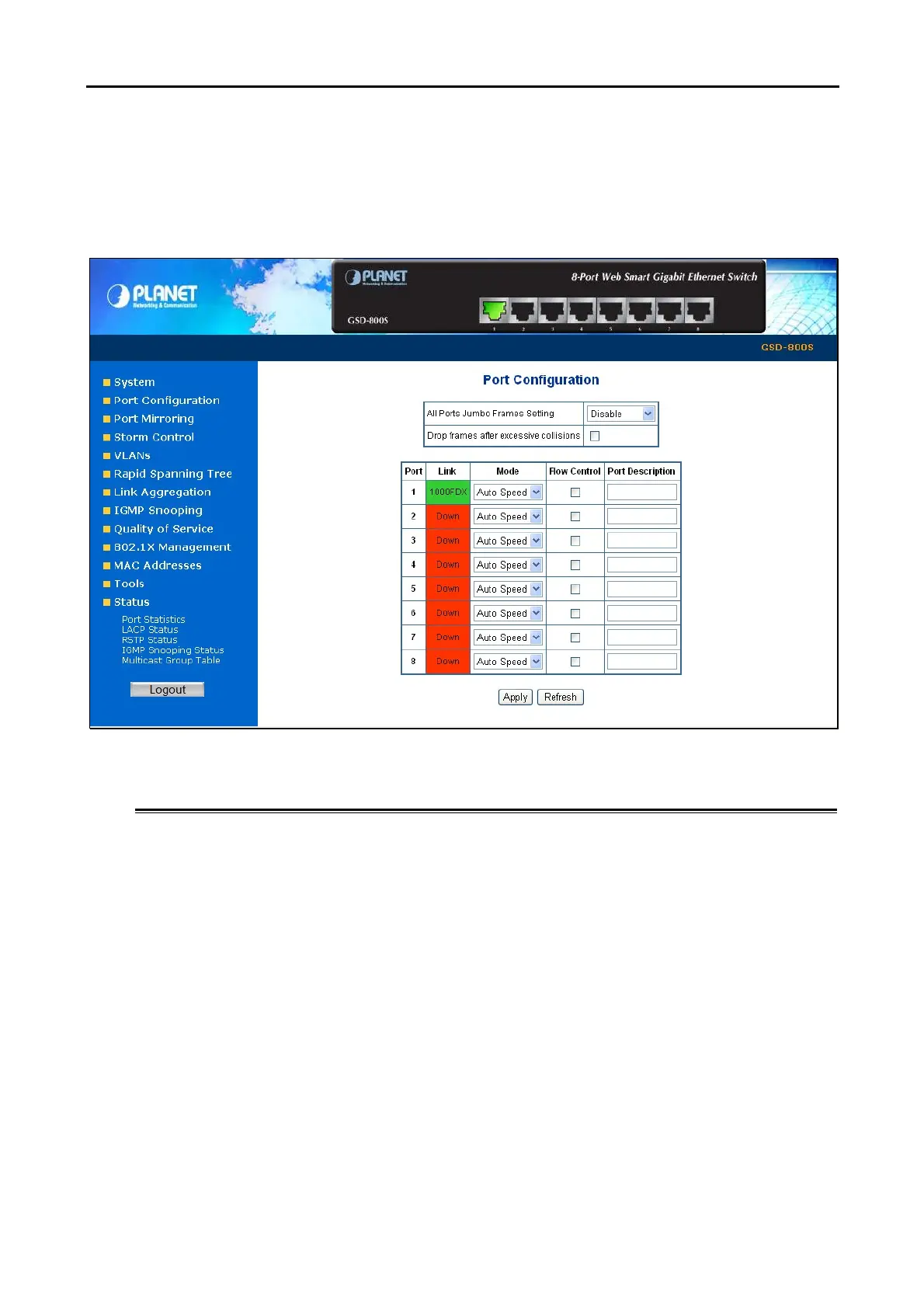

Figure 4-4 Port Configuration screen
The page includes the following configurable data:
• All Ports Jumbo
Frames Setting
The maximum Ethernet frame size the interface supports or is configured,
including Ethernet header, CRC, and payload. Draw the menu bar to select the
mode.
• Disable - The default maximum frame size is 1518.
• 4096 Kbytes – Set the maximum frame size to 4096 Bytes.
• 9600 Kbytes - Set the maximum frame size to 9600 Bytes.
• Drop frames after
excessive collisions
Enable or Disable the device to drop frames once the excessive collisions be
detected.
• Port
Indicate port 1 to port 8.
• Mode
Allow configuring the port speed and operation mode. Draw the menu bar to
select the mode.
• Auto Speed - Setup Auto negotiation.
• 10 half - Force sets 10Mbps/Half-Duplex mode.
• 10 Full - Force sets 10Mbps/Full-Duplex mode.
• 100 half - Force sets 100Mbps/Half-Duplex mode.
• 100 full - Force sets 100Mbps/Full-Duplex mode.
• 1000 full - Force sets 10000Mbps/Full-Duplex mode.
• Disable - Shutdown the port manually.
