User’s Manual of GSD-800S / GSD-802S / GSD-802PS
A.3 RJ-45 cable pin assignment
213 6
1
2
3
6
2 1
3 6
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation
and color of straight cable and crossover cable connection:

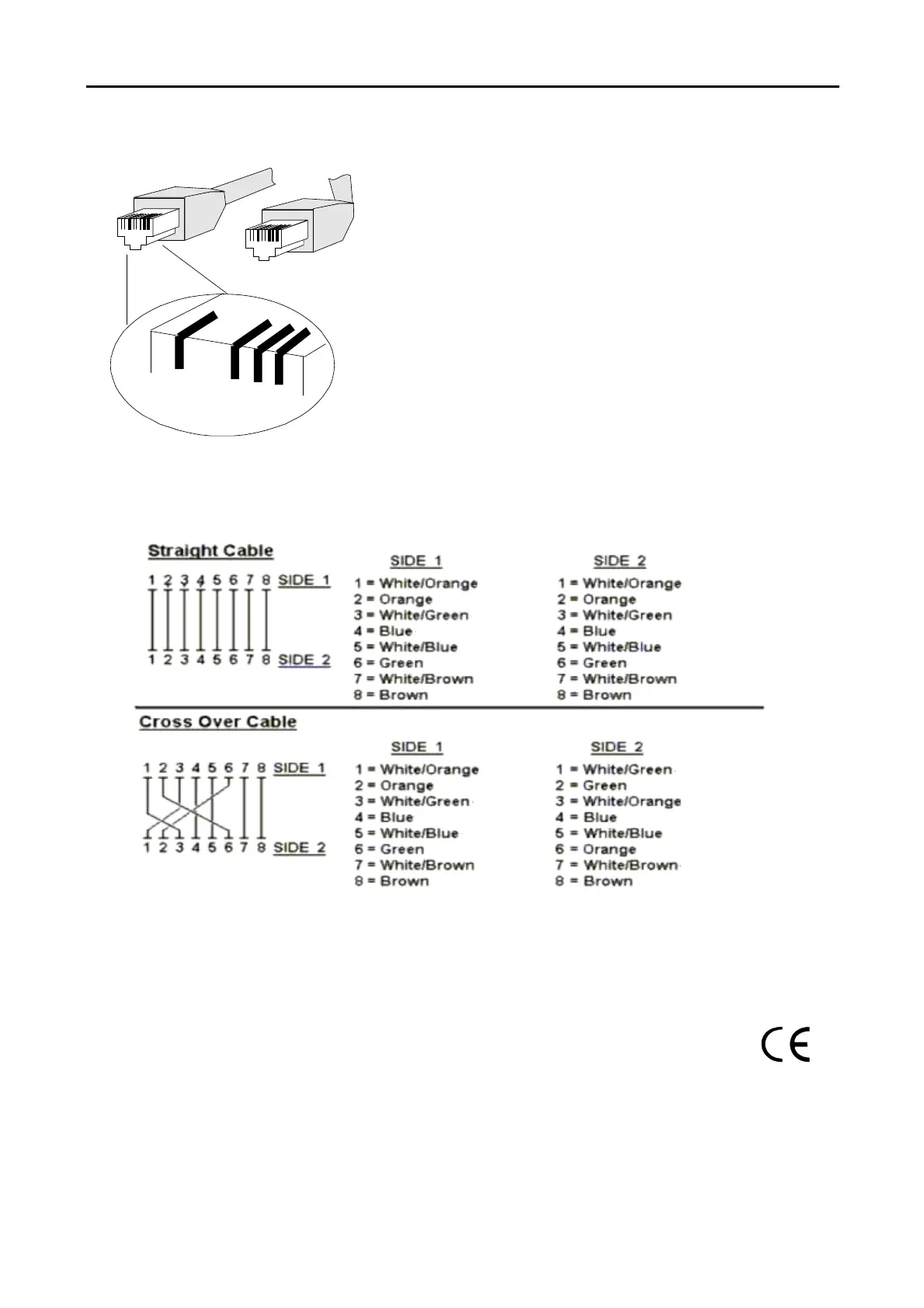

Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with same pin assignment and color as above picture before deploying the
cables into your network.
