User’s Manual of GSD-800S / GSD-802S / GSD-802PS

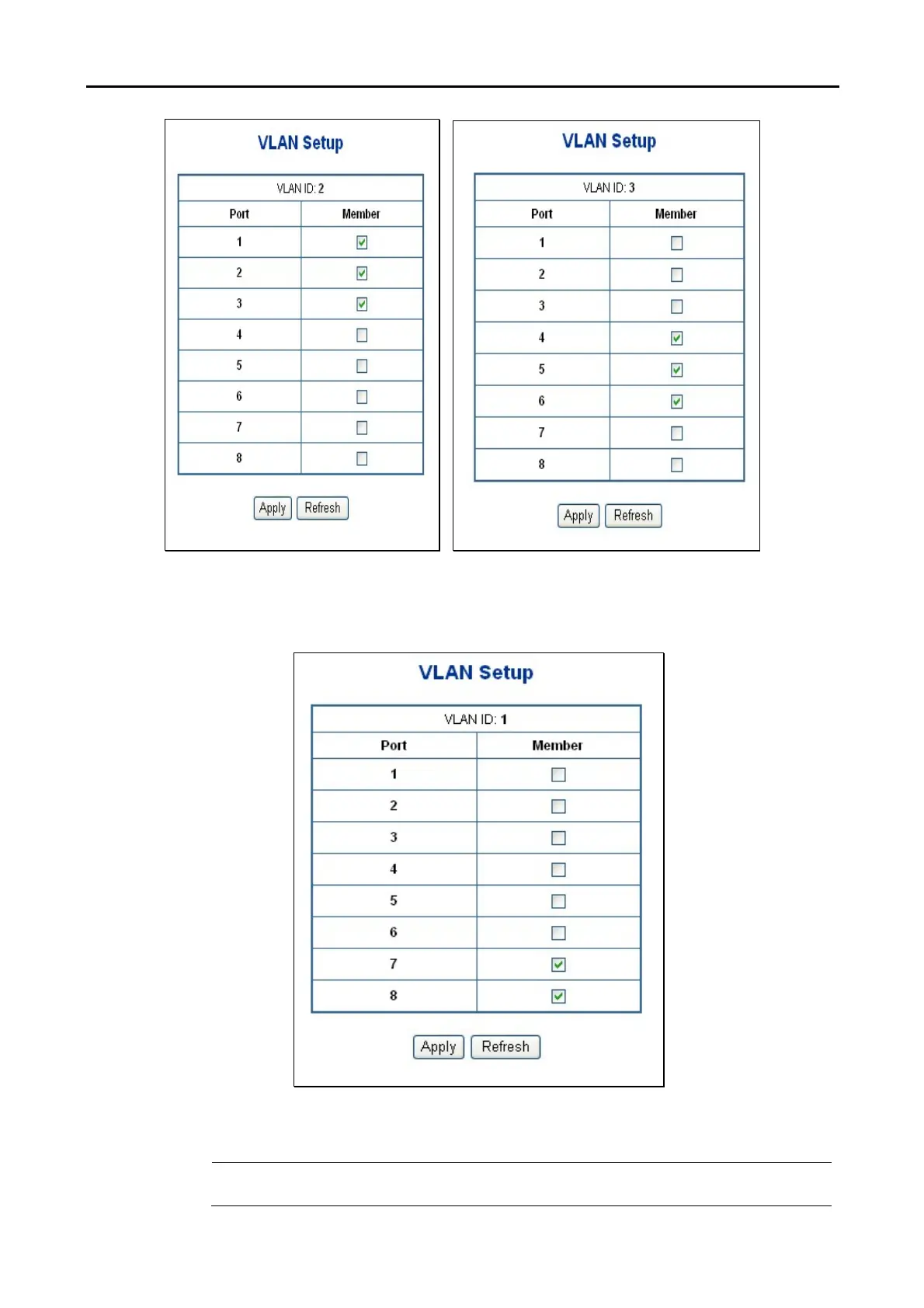

Figure 4-13 Assign VLAN members for VLAN 2 and VLAN 3
Remember to remove the Port 1 – Port 6 from VLAN 1 membership, since the Port 1 – Port 6 had been assigned to
VLAN 2 and VLAN 3.
Figure 4-14 Remove specify ports from VLAN 1 member
#Notice:
It’s import to remove the VLAN members from VLAN 1 configuration. Or the ports would become
overlap setting. ( About the overlapped VLAN configuration, see next VLAN configure sample)
