4.5.3.2 Two VLANs with overlap area
Follow the example of 4.5.3.1. There’re two exist separate VLANs – VLAN 2 and VLAN 3, and the PCs of each VLANs are
not able to access each other of different VLANs. But they all need to access with the same server. The screen in Figure
4-16 appear. This section will show you how to configure the port for the server – that could be accessed by both VLAN 2
and VLAN 3.

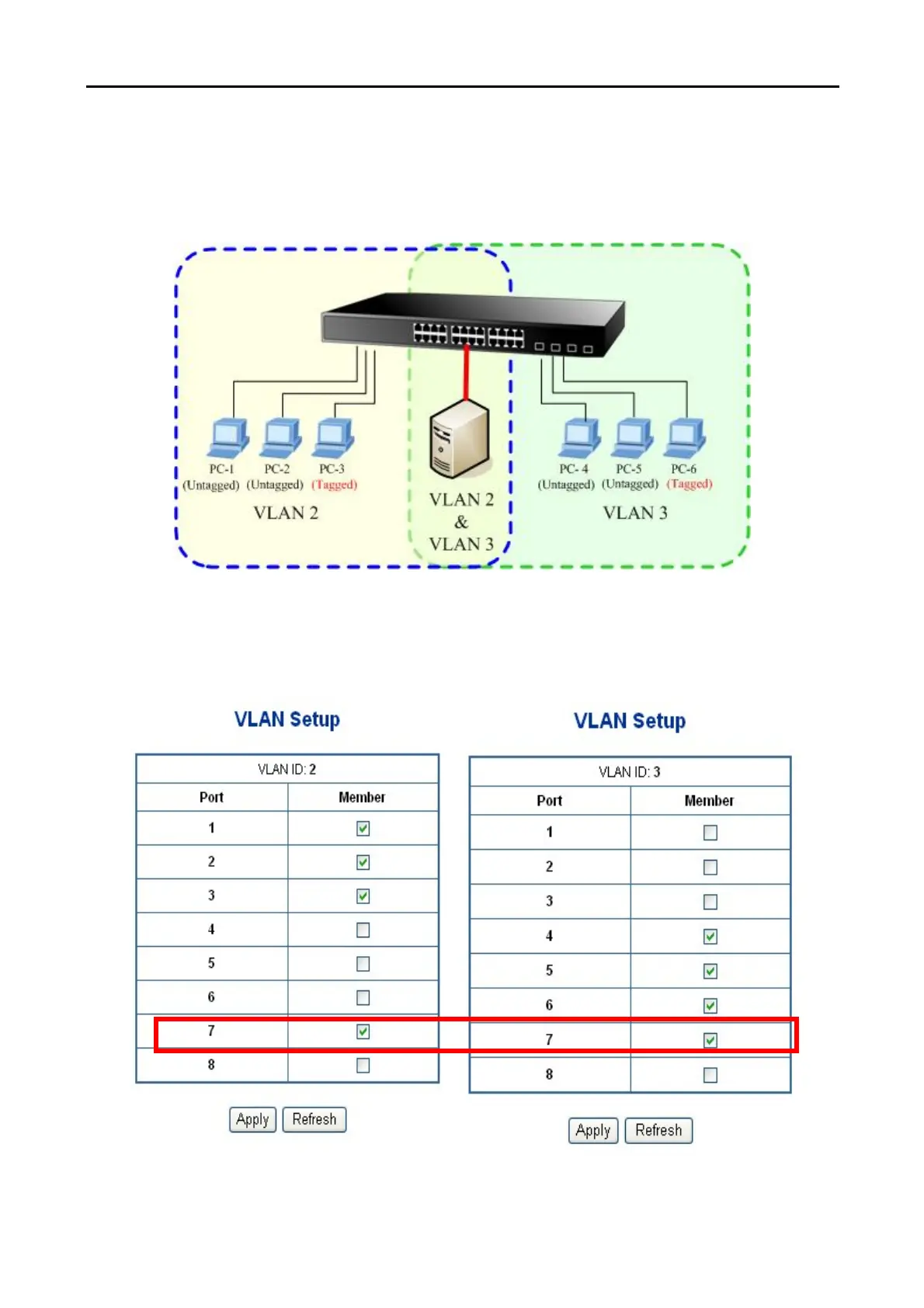

Figure 4-16 A Server connect to the VLAN overlap area
1. Specify Port-7 on the device to connect to the server.
2. Assign Port-7 to both VLAN 2 and VLAN 3 at the VLAN Member configuration page. The screen in Figure 4-17
appears.
Figure 4-17 VLAN overlap port setting
