Planet IGS-604HPT-M12 - Logging in the Industrial Managed Switch

12

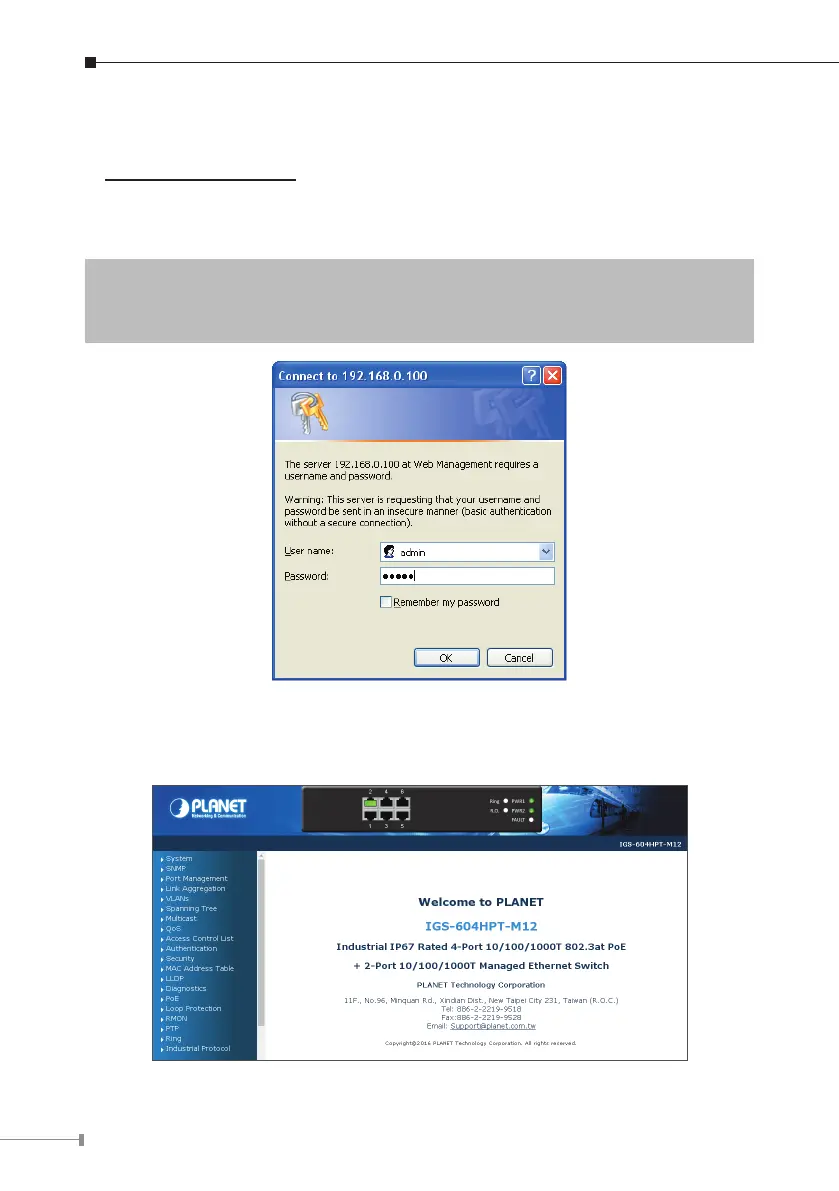

4.3 Logging in the Industrial Managed Switch
1. Use Internet Explorer 8.0 or above Web browser and enter IP address
http://192.168.0.100 (default IP address) to access the Web interface.
2. When the following dialog box appears, please enter the default user name and
password “admin”. The login screen in Figure 4-1 appears.
Default IP Address: 192.168.0.100
Default Username: admin
Default Password: admin
Figure 4-1: Login Screen
3. After entering the password, the main screen appears as Figure 4-2 shows.
Figure 4-2: Web Main Screen of Industrial Managed Switch
