Per 10/100/1000BASE-T PoE+ Port (Port 3~6)
LED Color Function
LNK/ACT Green
Lights
To indicate the port is running in 10/10/1000Mbps
speed and successfully established.
Blinks
To indicate the switch is actively sending or
receiving data over that port.
PoE-in-Use Orange
Lights
To indicate the port is providing 45~55 V DC
in-line power.
Off
To indicate the connected device is not a PoE
powered device (PD).

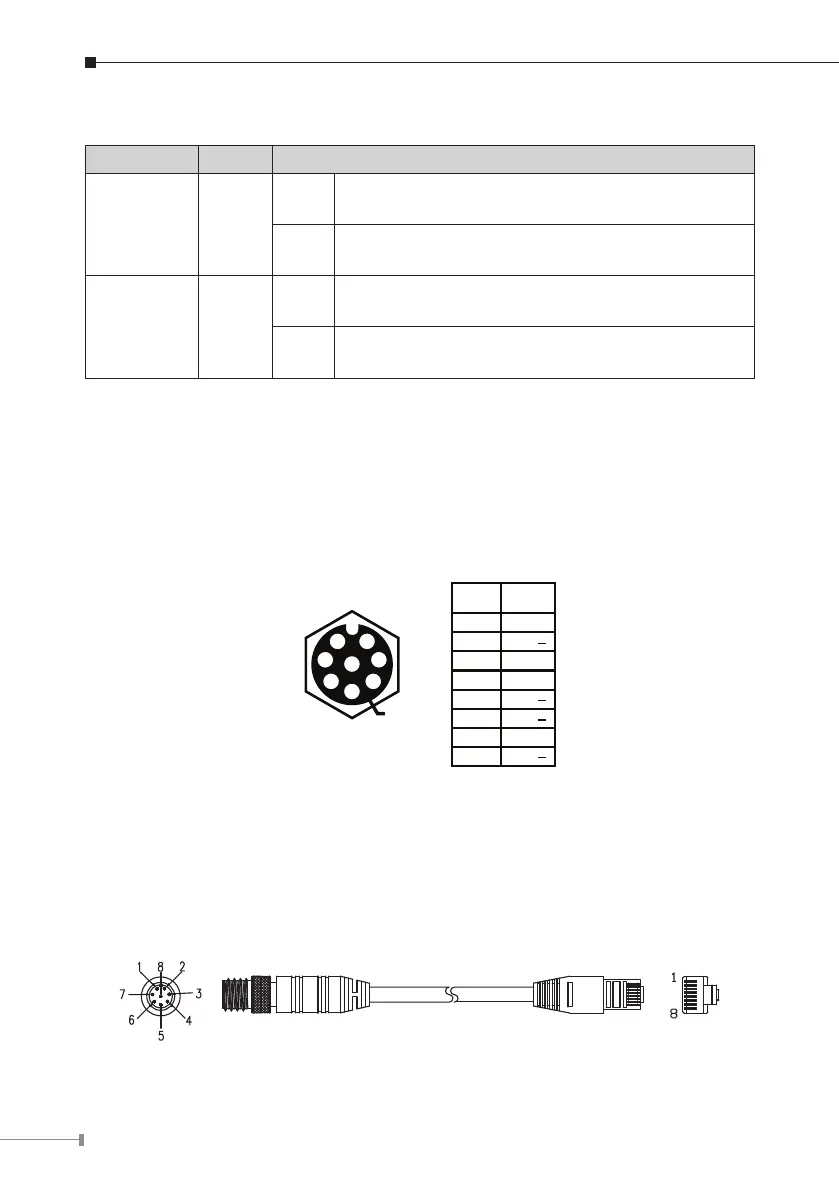

2.4 M12 10/100/1000T Connector Pin Assignment
The Industrial Managed Switch front panel provides six 10/100/1000BASE-T
Ethernet ports in the form of M12 8-pin A-coded female connector. These ports are
designed for Ethernet equipment connection through Cat5/5e UTP cables. The M12
input interface pinout is shown below:
Pin Con
1 DA+
2 DA
5 DC
8 DD
3 DB+
6 DB
7 DD+
4 DC+
12
5
6
4
8
73
8-pin M12 Female 10/100/1000T Connector Pin Assignment
2.5 M12 (8-pin, Male) to RJ45 (8-pin) Straight-through UTP Cable
Wiring
